20B Throttle body TPS connector

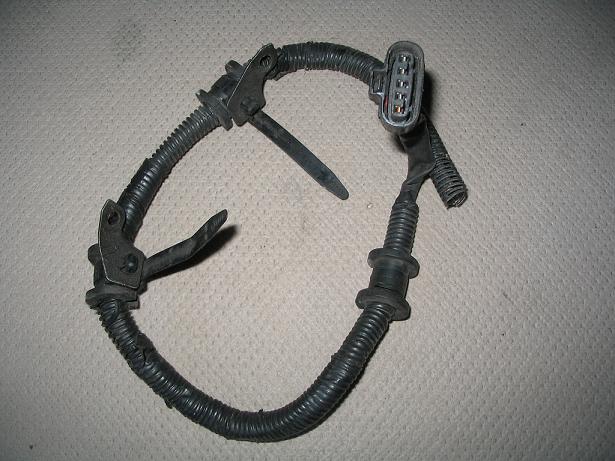

Does anyone know if this is the same connector as the FD TPS connector?
If not, does anyone have a 20B TPS connector for sale?
If not, does anyone have a 20B TPS connector for sale?
#3
rebreaking things
Join Date: Apr 2006
Location: Manhattan
Posts: 866
Likes: 0
Received 0 Likes
on
0 Posts
Ithought the 20b unit was different than the fd's. At the very least I believe they have a different pin layout based on a post I read on nopistons where the layout for each connector was listed.
Trending Topics
#10
Lives on the Forum
Hmmm...I must'be been smoking good **** back 6 years ago.
You're right - if that's the FD TPS plug, it's not going to fit.
I swear it was swappable. DOH
I think the FD TPS does bolt in though?
-Ted
You're right - if that's the FD TPS plug, it's not going to fit.
I swear it was swappable. DOH
I think the FD TPS does bolt in though?
-Ted
#12
If you can't find the connector check out Toyota inline 6cyl's. Most of the Toyota's 6cyl's use the same connector for the TPS switch. The 1/2JZ's Toyota for example.
#14
Racingbeat dealer
Join Date: Dec 2002
Location: Uden (AFB Volkel), The Netherlands
Posts: 787
Likes: 0
Received 1 Like
on
1 Post
Try RHDJapan, they should be able to get it. Connector is different from FD.
Wires :
black-red: narrow range
brown-black: massa/ground
green-red:full range
brown-white : 5V
Also according to the wiring manual
Greetings,
Mireck
#16
Moderator
iTrader: (7)
According to the parts manual , the part number is NF01-18-911 (parts catalog first series)
Try RHDJapan, they should be able to get it. Connector is different from FD.
Wires :
black-red: narrow range
brown-black: massa/ground
green-red:full range
brown-white : 5V
Also according to the wiring manual
Greetings,
Mireck
Try RHDJapan, they should be able to get it. Connector is different from FD.
Wires :
black-red: narrow range
brown-black: massa/ground
green-red:full range
brown-white : 5V
Also according to the wiring manual
Greetings,
Mireck
My findings were pretty much same, except narrow vs wide range switch.
1) brown/white - 5V
2) green/red - narrow range
3) brown/black - GND
4) black/red - wide range
I will see soon once i will wire it up to Haltech
#19
Hey...Cut it out!
iTrader: (4)
This will be covered in my next project thread "The Connector Project" in the Second Gen Section once the 20b is up and running. The goal is to get part numbers for the housings, seals (if applicable) and pins on every single connector in a FC.
Dunno what the exact details are yet, but I do know is that the 20b TPS connector is made by Tyco Electronics and it's essentially a 4-pin version of the S4's injector connectors. Seems like a lot of Japanese cars use stuff from Tyco, American cars get theirs mostly from Delphi and German cars are a total mystery to me.
Untill it's done, free bump for C. Ludwig.
Dunno what the exact details are yet, but I do know is that the 20b TPS connector is made by Tyco Electronics and it's essentially a 4-pin version of the S4's injector connectors. Seems like a lot of Japanese cars use stuff from Tyco, American cars get theirs mostly from Delphi and German cars are a total mystery to me.
Untill it's done, free bump for C. Ludwig.
#20
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 31,133
Received 2,792 Likes
on
1,977 Posts
i haven't spent much time looking at euro cars, but bosch is a prime suspect. i did spend a little time looking up E30 parts, and BMW actually does list all the connectors separate, so maybe they are available. 80's BMW's use 2-3-4-5- and 6 pin versions of the square connector, in both male AND female...
#21
Full Member
iTrader: (9)
Join Date: Feb 2011
Location: Lompoc, CA
Posts: 51
Likes: 0
Received 0 Likes
on
0 Posts
Here is a thread that i found had some good info in it about your issue, i have the same issue since im swapping my intake manis from my rew to cosmo intake manis. Good luck!
https://www.rx7club.com/forum/showthread.php?p=9864812
https://www.rx7club.com/forum/showthread.php?p=9864812
