Window washer check valves

Does anyone know a good replacements for the check valves located in the window washer lines?

I have an 85 12a

Reply Like

12-09-08 | 05:07 PM

Kentetsu

Lives on the Forum

Joined: Jun 2004

Posts: 11,359

Likes: 14

From: Grand Rapids Michigan

Check valves? In the washer fluid lines? I did not know we had any, and I'll be darned if I can figure out why we would...

Reply Like

12-10-08 | 05:32 AM

lascelles

Thread Starter

Full Member

Joined: Apr 2008

Posts: 169

Likes: 0

From: Cincinnati, ohio

they stop the fluid from draining back into the tank. ie less time for the spray to start.

i'm sure mine had them.

one on both branch after the tee

Reply Like

12-10-08 | 10:22 AM

RX-7 Chris

Rotary Freak

iTrader: (19)

Joined: Oct 2007

Posts: 2,014

Likes: 0

From: Colorado Springs, CO

As far as I know they do not. The tank is not that far away from the washers so it would only take a few seconds to get back to the washers.

Reply Like

12-10-08 | 10:43 AM

lascelles

Thread Starter

Full Member

Joined: Apr 2008

Posts: 169

Likes: 0

From: Cincinnati, ohio

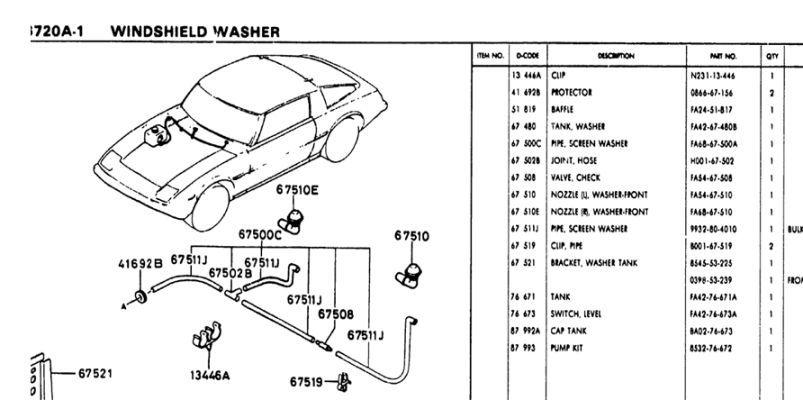

it's in the part list (thanks sgtfox)

d-code 67508
part# FA54-67-508

Attached Thumbnails

Window washer check valves-windo-washer.jpg

Reply Like

12-10-08 | 10:45 AM

Kentetsu

Lives on the Forum

Joined: Jun 2004

Posts: 11,359

Likes: 14

From: Grand Rapids Michigan

Huh... I would say that it is not necessary. I replaced both of my lines and did not install a check valve. Still works fine. Good luck on your search though...

Reply Like

12-10-08 | 11:03 AM

RX-7 Chris

Rotary Freak

iTrader: (19)

Joined: Oct 2007

Posts: 2,014

Likes: 0

From: Colorado Springs, CO

Black dragon sells it for $6.95

http://www.blackdragonauto.com/icata...l.aspx?page=78

Reply Like

Trending Topics

Old guys with 12As club meeting

21.9k

1.7M
Transmission Rebuild Parts Question

25

1.1k
2024 Oil Pan Sealant

20

563
Built , 13B 1994 Silver RX7 HKS T51R, Haltech 2500, Fuel, Ignition,...

19

2.3k
This one's for the audiophiles and circuit board Gurus. Bose and Bluetooth

8

235

12-10-08 | 11:07 AM

lascelles

Thread Starter

Full Member

Joined: Apr 2008

Posts: 169

Likes: 0

From: Cincinnati, ohio

Thanks

Reply Like

12-10-08 | 03:50 PM

trochoid

Old Fart Young at Heart

iTrader: (6)

Joined: Apr 2004

Posts: 15,145

Likes: 7

From: St Joe MO

Learn something new everyday here.

Reply Like

12-10-08 | 06:12 PM

#10

Crit

No distributor? No thanks

iTrader: (6)

Joined: Oct 2003

Posts: 3,438

Likes: 6

From: Outskirts of Road Atlanta

From the diagram, it looks like it only keeps the driver's washer from draining. The passenger's line can drain through the tee and back to the pump, so you've still got a pretty significant delay. Strange....
