shawnhpv72

we cant think of what it go's to please help thanks.

shawnhpv72

Bump

skrewloose78

where is it located?is that under the storage bins? i think the emissions computer is located back there and im pretty sure that isnt for the factory amp.

64mgb

iTrader: (1)

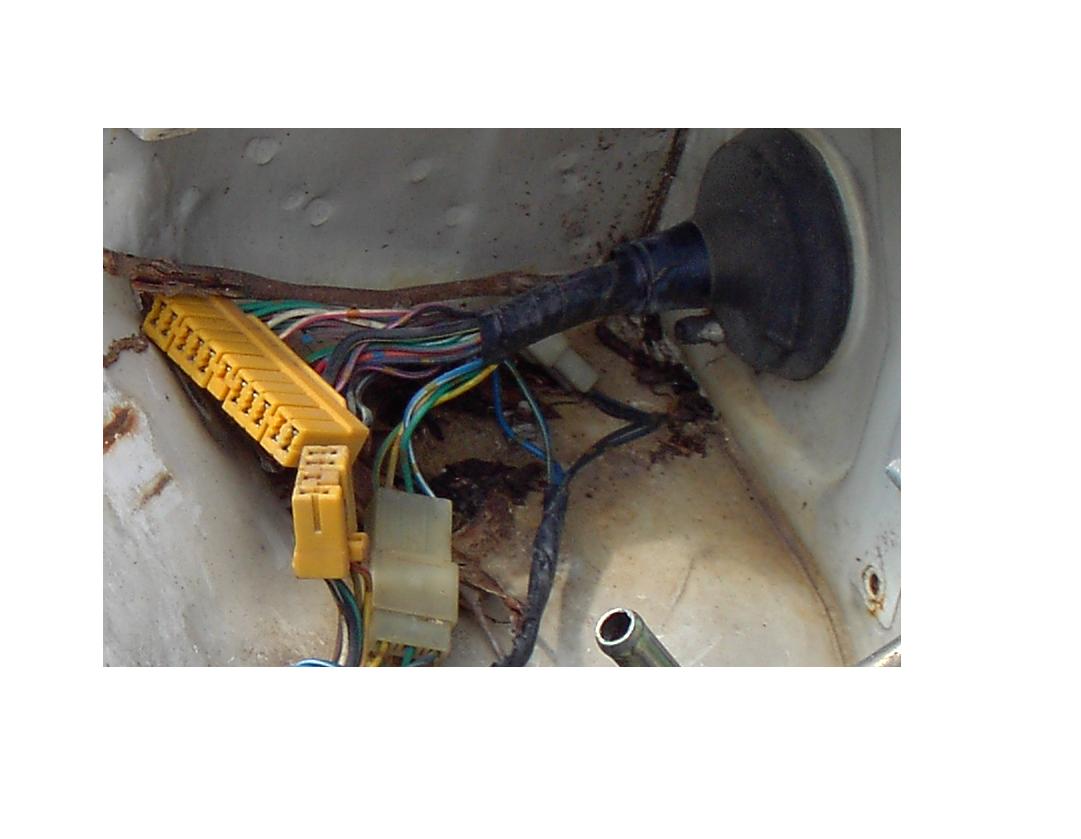

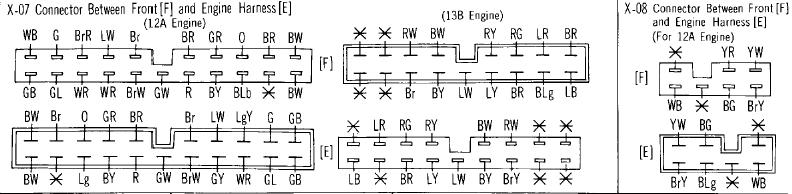

If you're talking about the yellow/orange connectors, they go to the engine harness. Alternator, carb, emissions, etc. Identified as X-07 and X-08 in the wiring diagram.

Rich

64mgb

iTrader: (1)

You waited 10 minutes before bumping??? You need some patience...

shawnhpv72

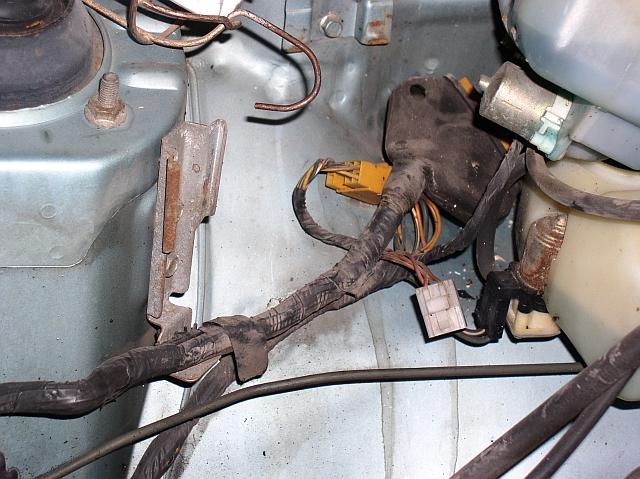

thanks. its under the hood next to firewall pass side. thanks

shawnhpv72

sorry im in the bigest rush

Hades12

If it is an SE then it goes to the injection stuff. If not then it is Auto trans stuff.

64mgb

iTrader: (1)

I don't think this is right. I just redid my wiring harness and removed all unnecessay wires and plugs. I'm pretty sure these are connectors X-07 and X-08 and connect to things like all the emmissions solenoids, the carburettor controls, and the alternator.

Rich

64mgb

iTrader: (1)

Maybe I misread your post. I don't know anything about the SE or the automatics, so this could be true for them.

Rich

Hades12

Could be, But I have only seen the passenger side plug on those two cars.

shawnhpv72

you are right. its the wiring for the motor and carb. found the harrness thanks alot.

Hades12

What Year and Model?

shawnhpv72

i think 84 or 85 not really sure. i just got it and i dont have the title yet. i havent even looked in the door jam. im not really a FB man. dont get me wrong i like them but its going to be my daily driver to help keep the miles off the FD.

Midwest 7's

iTrader: (4)

2 of the wires go to the oil pressure sender and water temp on spark plug side of engine block. kindove important. if you need i can look at my car and tell you what colors go to what.
