1st Generation Specific (1979-1985) 1979-1985 Discussion including performance modifications and technical support sections

What is Distributer firing order

Thread Tools

Search this Thread

Old 05-12-05 | 09:19 PM
  #1
Eriks85Rx7's Avatar
Thread Starter
Wheel Revolutionist!


Joined: Apr 2005
Posts: 1,018
Likes: 1
From: West Virginia
What is Distributer firing order

Ok my car still wont idle.... We changed around the ignition wires now the car wont even start. Does any know the firing Order

is it 1 2 or are the top 2 1 3 those represents firing order on distributer.
3 4 2 4
Old 05-12-05 | 09:56 PM
  #2
2wankel's Avatar
Strength & Unity
iTrader: (1)

Joined: Jul 2004
Posts: 1,946
Likes: 0
From: CT
The distributer cap is labeled T1, L1, T2, L2. This is not in order, just letting you know its labeled. Match it up with the info below.

Facing the spark plug side of the motor

The top two plugs from left to rights are...

| T1 |-------| T2 |

Two bottom ones are...

| L1 |-------| L2 |

hope that helps
Old 05-12-05 | 10:22 PM
  #3
Eriks85Rx7's Avatar
Thread Starter
Wheel Revolutionist!


Joined: Apr 2005
Posts: 1,018
Likes: 1
From: West Virginia
Ok we have them matched up but the engine still wont fire. On both rotors the rpm gauge is dancing again.. It was running then all of the sudden it wont run anymore could we have the wrong spark plugs or something?
Old 05-12-05 | 11:18 PM
  #4
2wankel's Avatar
Strength & Unity
iTrader: (1)

Joined: Jul 2004
Posts: 1,946
Likes: 0
From: CT
looky here for spark plug info. Also did you swap the coil wires by accident, if you did switch them back.
Old 05-12-05 | 11:25 PM
  #5
mwatson184's Avatar
holley guy

Joined: Feb 2003
Posts: 898
Likes: 1
From: K.C. MO
Are you getting spark to all of the plugs?
Old 05-13-05 | 08:59 AM
  #6
Elysian's Avatar
Bimmer *****

Joined: Jun 2002
Posts: 2,199
Likes: 1
From: Plano, TX
are u 180 degrees out? mine was and all it would do was seem like it flooded out and every once ina while smoke would puff out the carb
Old 05-13-05 | 02:54 PM
  #7
mwatson184's Avatar
holley guy

Joined: Feb 2003
Posts: 898
Likes: 1
From: K.C. MO
180 out doesn't matter on a rotary. The plugs fire every revolution, not every other revolution.
Old 05-13-05 | 03:10 PM
  #8
cdrad51's Avatar
Lorem ipsum dolor sit ame

Joined: Nov 2003
Posts: 3,262
Likes: 1
From: The Net
It only matters when you are gonna check timing.
Old 05-13-05 | 03:15 PM
  #9
Jeff20B's Avatar
Lapping = Fapping
iTrader: (13)

Joined: Aug 2001
Posts: 15,725
Likes: 83
From: Near Seattle
Are we talking about distributor phasing or engine position? It can be 90° off or 180° off, or something.
Old 05-13-05 | 04:15 PM
  #10
Eriks85Rx7's Avatar
Thread Starter
Wheel Revolutionist!


Joined: Apr 2005
Posts: 1,018
Likes: 1
From: West Virginia
Well we switched everything back to normal. The car will not start! If we use hot shot starter it will start then die... It seems like it isnt getting gas. I ran it for awhile before at around 3000rpms but the engine was missing and wouldnt idle then after we tinkered with it and put everything back it wont START. Even if we did get it to start it would still be missing... Im about ready to sell it and get a dumb honda civic or something that actually runs...
Old 05-13-05 | 04:18 PM
  #11
cdrad51's Avatar
Lorem ipsum dolor sit ame

Joined: Nov 2003
Posts: 3,262
Likes: 1
From: The Net
Is the fuel pump running as soon as you put the key switch in the on position, for a few seconds? is the rpm guage still working when cranking?
Old 05-13-05 | 04:21 PM
  #12
Eriks85Rx7's Avatar
Thread Starter
Wheel Revolutionist!


Joined: Apr 2005
Posts: 1,018
Likes: 1
From: West Virginia
I dont know about the fuel pump.. but the rpm gauge when i turn the key jumps from 0 to 2000 and up down and never starts..
Old 05-13-05 | 04:24 PM
  #13
cdrad51's Avatar
Lorem ipsum dolor sit ame

Joined: Nov 2003
Posts: 3,262
Likes: 1
From: The Net
Ok. look at the bowl levels in the carb. Are they empty? 1/2 filled? fully filled?
Old 05-13-05 | 04:40 PM
  #14
Eriks85Rx7's Avatar
Thread Starter
Wheel Revolutionist!


Joined: Apr 2005
Posts: 1,018
Likes: 1
From: West Virginia
I cant tell u that right now im at my dads shop the car is at the house. this car has been a never ending problem machine..
Old 05-13-05 | 05:02 PM
  #15
cdrad51's Avatar
Lorem ipsum dolor sit ame

Joined: Nov 2003
Posts: 3,262
Likes: 1
From: The Net
well, check it out when you get a chance and let us know.
Old 05-13-05 | 11:58 PM
  #16
Myc1972's Avatar
1981 Mazda RX-7 GSL


Joined: Jul 2004
Posts: 219
Likes: 2
From: Rockford, Illinois

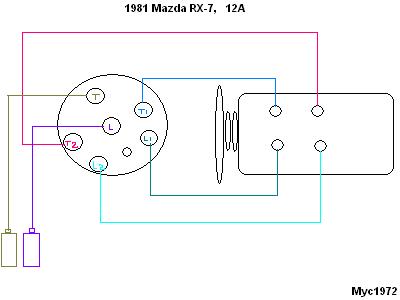

Well on mine the spark plug wires are like this:

It is a 1981 GSL

Hope it helps!
Attached Thumbnails What is Distributer firing order-distributor-spark-plug-wire-order.jpg
Old 05-15-05 | 12:50 AM
  #17
Eriks85Rx7's Avatar
Thread Starter
Wheel Revolutionist!


Joined: Apr 2005
Posts: 1,018
Likes: 1
From: West Virginia
THANKYOU EVERYBODY! We figured out a bunch of stuff ,, found the vacuum hole and fixed all the electrical crap and I JUST DROVE IT HOME!! I love my baby. Its 1:00am and I was driving a very loud car poor neighbors.. Anyways THANKYOU guys SOOO much I can finally drive my baby around!
