680RWHP12A

lol!!

is it turbocharged?!!!!

peachykeenwight

He now has 500 horsepower, and it was 10 dollars. And it didn't require any other modifications. In fact, the supercharger isn't even installed. It just sits in his passenger's seat, and he just makes a "whirr" noise when he accelerates. You should try it.

SSpyderX

iTrader: (1)

whoa my passenger seat, I dont think so.... i need some where to put my beer, I have it in the glove compartment, i mean its only 7 inches.

SSpyderX

iTrader: (1)

I just got home from a run through a couple of my favorite canyons, and I was impressed with it. I couldnt climb well up hill before the upgrade and now it did in 4th gear like it was nothing. lots more fun now.

sa22crotor

Hell yes my friend, 160 horses - a modest guess i think. Nice job that is the ****, not sure about camden but nice result. The strut bar......I need one but from where? just like yours will do where are they selling those? To all the fans of turbos, wouldn't you like to be boosting at idol? The s/c is the go! That setup should be good for 250-300hp with a good tune, what fun- bring on the hondas

Alak

iTrader: (9)

Sorry to burst anyones bubble. Im a HUGE fan of the Camden superchargers, but they have one fallback to turbos:

HEAT

With Straight Methanol injection or Water/Methanol Misting for intercooling, that is Probably the only way 250WHP is possible with a 7inch Camden. With lack of intercooling, the heat just robs power. Running an overdrive pulley will give oddles of low end boost, but the top end heat will destroy (literally) the supercharger, or at the least, you will see no gains in power. Port matching and flow directing the lower manifold is another option.

Camden still has a long way to come before big numbers can be expected.

soslowgtp

Does Camden make their own S/C or is it from another company, like Eaton, and they just make the kit ??? Also does anyone know the flow rate vs boost, and HP used vs boost created???

boriqua51371

camden is own by atkins rotary and yes they make their own sc , the boost produce by the camden as as low as 6 psi or as high as 12 psi on the stock pulley , if you change pulley size higher boost, but like Alak said the produce massive heat so like i suggested on the first page water methanol injection is the solution for the heating issue also porting the intake manifold makes better gains.

soslowgtp

But I want to know how efficient They are, I'm trying to decide between a custom kit or a camden one..... But I can't find out much about the camden ones so I can actually compare then to other superchargers, like what kind of flow they provide under a certain amount of boost and how efficient they are at creating boost.

gmanuser

ya i do but thier is a diffrence from what the factory says and what the actual power is for example everyone knows about the 60s chargers who got 420 standerd according to factory but in all reality if you put on dyno you would have over 500 stock, and sometimes it also goes the other way depending on the sitituation.

boriqua51371

well what are you planning to run along with the charger? are you going carburated or fuel injected ? fuel injected with a side draft style throtle body like code blue's car should net you around 225 whp on 6to 7 psi and if you run up your psi more power you make.

Lee Lyons

I would have gone turbo...opps I did...haha...hope it runs like a dream though

Alak

iTrader: (9)

Turbo = Power

Supercharged = Drivability


Driving a Supercharged Rotary is like driving an N/A, but with more low end tourque and more overall noise.

Driving a Turbo Rotary can be pretty involved at times, especially at higher power levels.

Doubleohsmurf

The car is slick, good job man. Definitely a solid sleeper if you only street port it! I like the wheels for some reason too, they seem to go well with the car while not being too flashy.

SSpyderX

iTrader: (1)

The strut bar is from CP racing (in canada) but good luck getting it from them within 3 months. If you do a search for cp racing on this forum you will hear a lot of feedback on them. Me I won it on ebay and it took 2 months to send me the strut bar and to make it worst they sent the rear not the front so I called and they sent the front within a week and I go to keep the rear for free so I have no complaints.

I will be doing a methanol injection soon, I just need the funds. and mabye a FI down the line. And I will be doing a street port or a extended port when I do get a rebuild. So I think I am in good standing where I am.

Oh yeah the drivability is great, not much diferent from a NA untill I get on it. Love the sound, told it sounds like a fighter jet flying by =)

H4Inf

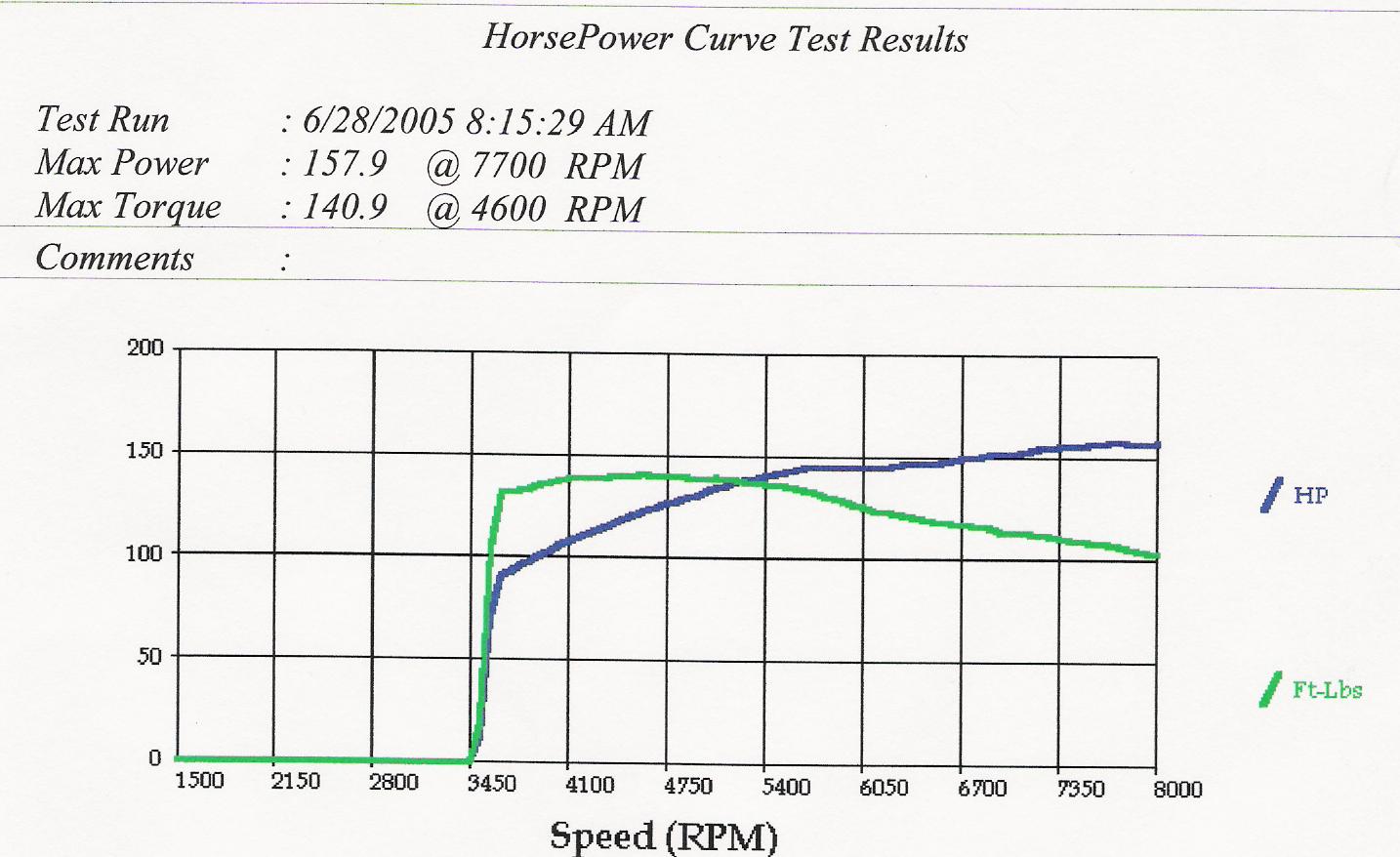

Very nice idea!! I would like to see dynograph, and a video/sound would be sweet

lstrain

Just had mine at the dyno the other day (supercharged 13B 4-port streetport). HP = 190.66 Torque = 135.04

Not what I expected...regardless, it's fun to drive....I'll send picks and dyno sheet when I'm home.

Alak

iTrader: (9)

160 to 200HP is the average on a street ported 13B it seems. I'd like to note that it appears the 12A Flows incredable with Turbo Rotors.

Bridge Ports arn't so good from what I've heard because the overlap screws around with the supercharger. It responds differently. Is there more power to be made? I dont know because the 12A BP thats supercharged around here is still under break in. His last pull was 160HP and 135TQ with -10 Pulley at 10PSI on the old skool Camden.

Jager

iTrader: (10)

Hey!

I'm just looking at this from the second generation section and just wanted to say some things I've heard about the charger to add to this conversation:

I was told that the Camden doesn't like to be spun past 8400 RPM, where some streetports and alot of bridgeports like to live.

Has anyone tried water injection on a Camden application? I'm just curious how that would do.

What rims? (To the poster)

boriqua51371

those rims look like panas.

Phiber Optik

iTrader: (2)

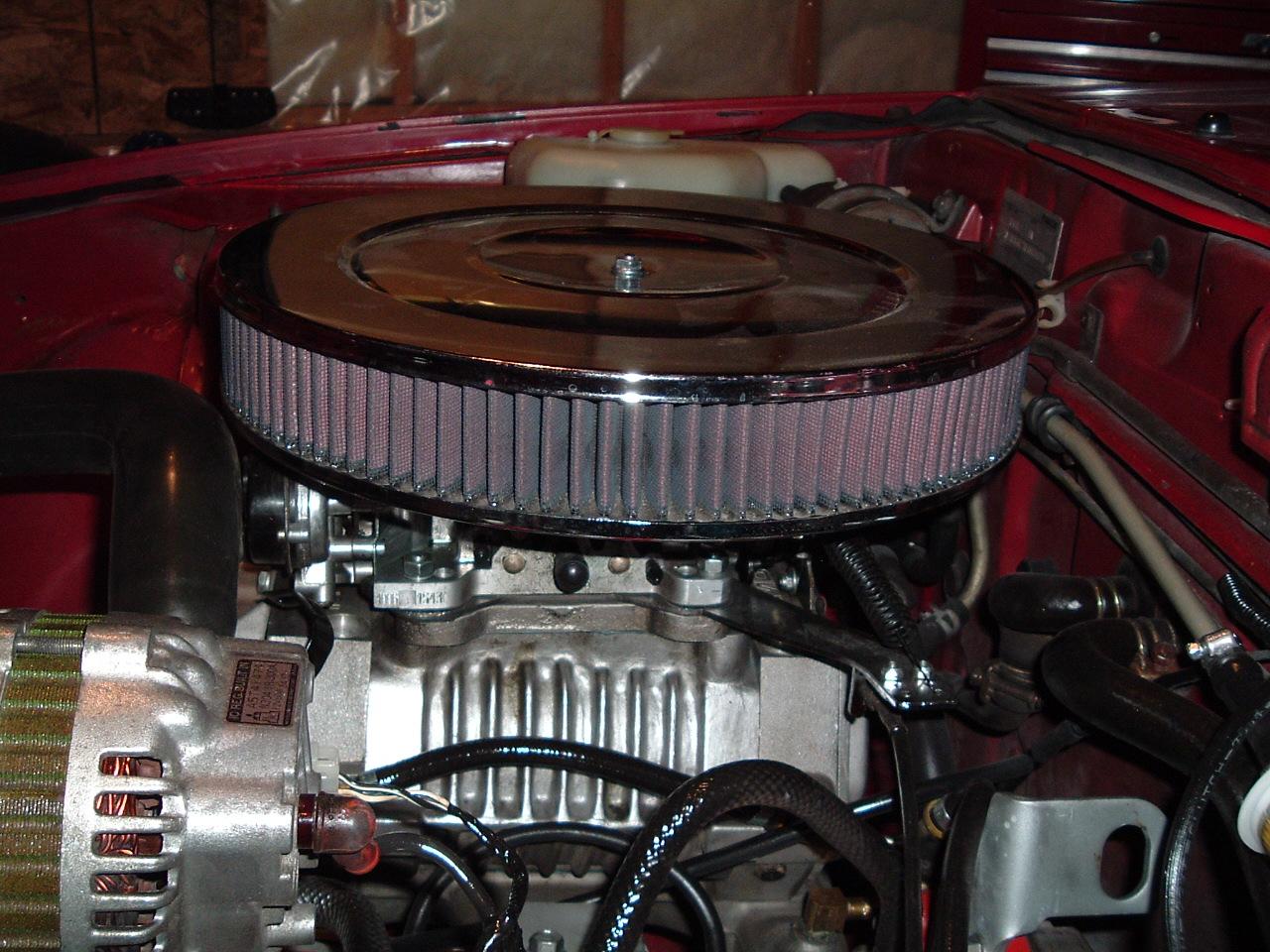

I strongly suggest you loose the air filter, I have one, not any more. It's not even worth the $16 edelbrock wants for it, and the element doesn't flow any air. you can put a air hose on 1 side and bearly feel it on the other. All that in addition to the fact it is a HUGE risk, all it takes is 1 backfire and you can loose your motor!

backfire causes the element to catch fire, it melts into the motor... I'm sure you can figure out the rest.

84stock

iTrader: (5)

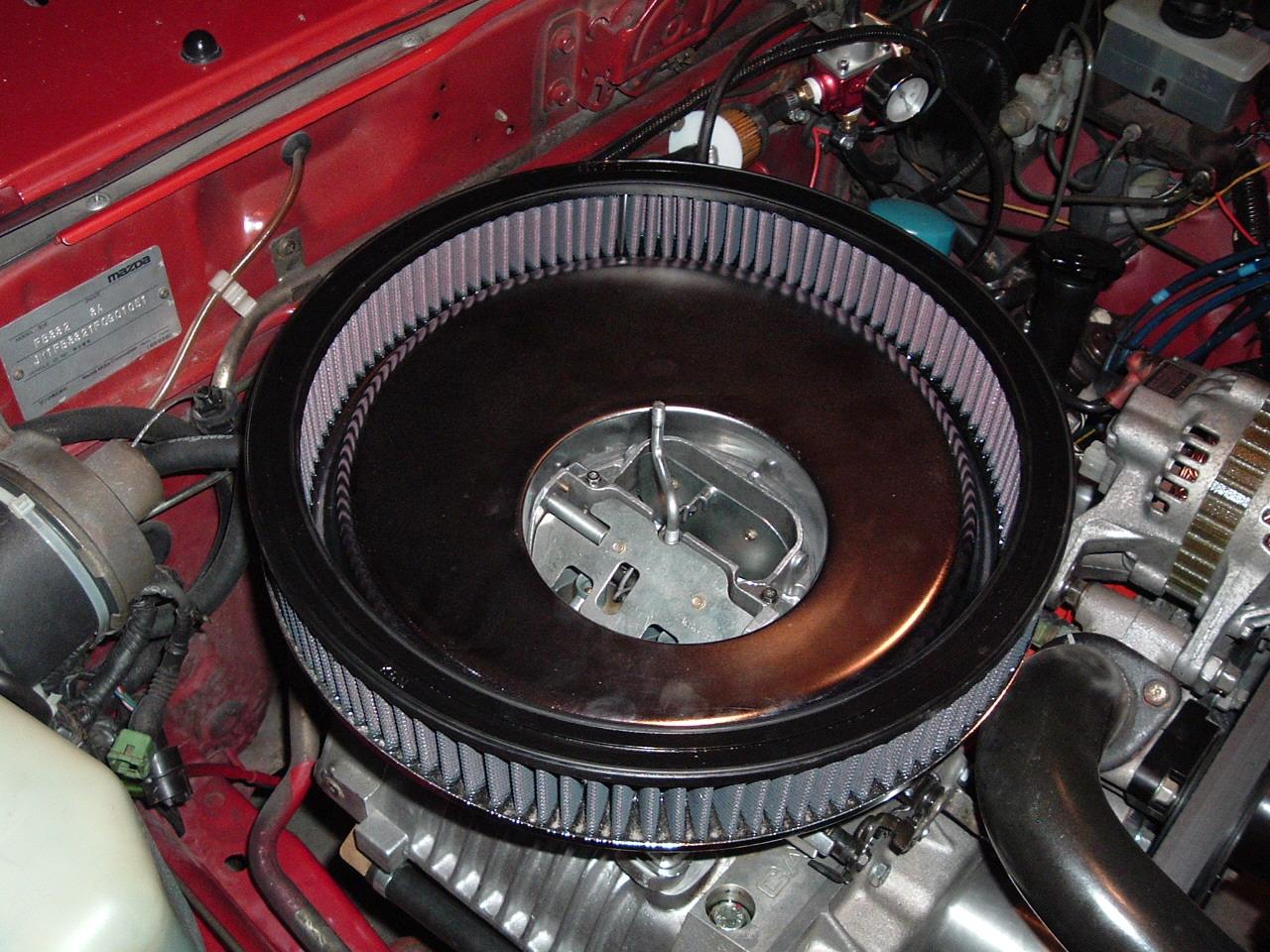

That air filter is nothing but trouble! Poor flow at high end plus it has a tendancy to let a lot of dirt in which will screw up the s/c housing and wear the seals (trust me on this, you should see the inside of my buddies camden!). Go to a speed shop and get a 14" gm hei offset air cleaner base (see pic) and a 2 1/4" k&n air filer along with a cheap 14" chrome lid or better yet the k&n high flow lid. Which edelbrock are you running?? (thunder series or not and what cfm). I have a 650 thunder series. And, you s/c pulley is too small, I actually "lost" boost with the little one. What number is on it?? (-7, or -8, or -10??). The camden works best all round with a -7. I agree with 680whp about the msd, I am currently having my lower intake modified and may be going with meth as well.

H4Inf

damn that dynograph is nice! i never wanted to go turbo but this has got me thinking supercharger

SSpyderX

iTrader: (1)

Just wondering where I could pick up the air filter you got on ures. I am looking a speed shops but cant find the right one.

Thanks
