Rotary VS Piston Exhaust Temp
#1
Rotary VS Piston Exhaust Temp
Check this out. I knew that Rotarys burn hotter than pistons, but here is a comparison. This picture is with my Camera Phone (sorry, will get real pics when I find the camera) of my exhaust.
1982 Mazda RX7
Mazdaspeed Protege Exhaust
2002 Mazda Protege
Mazdaspeed Protege Exhaust
Simple, and about as good and fair a comparison as I can get
. If you look closly at the rotary exhaust on the left, you can see the tip starting to turn a tan/blueish color. The piston... well, Still shiney!
1982 Mazda RX7
Mazdaspeed Protege Exhaust
2002 Mazda Protege
Mazdaspeed Protege Exhaust
Simple, and about as good and fair a comparison as I can get
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
![](http://i9.tinypic.com/6eus0nn.jpg)
#5
advanced novice
![](https://www.rx7club.com/images/misc/05_year_icon.png)
well our egt do get over 1700 degrees just with average driving let alone when you are getting in to the gas. when i get the new exhaust ill cut the old one open to see how bad it is burnt out. will talk pics
The following users liked this post:
all4fuun (06-18-24)
#7
never posts...
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Join Date: Mar 2004
Location: Pittsburgh, Pa
Posts: 198
Likes: 0
Received 0 Likes
on
0 Posts
I found this crazy link
http://www.math.tu-cottbus.de/INSTIT...rs/rotory.html
some of the captions are in german, though the text is in english. Anyway, it has this bit where it says that a rotary engine will on average produce 2/3 the Nox of a conventional piston engine. Due to its elongated combustion chamber. And considering that Nox is formed under conditions of both high temperature and pressure, it would seem that somehow the pressure generated during combustion doesn't quite rival that of a piston engine. Obviously the run hotter, but I thought the combustion pressures weren't all that far off.
Any ideas smart people.
Last edited by Anthrax Mike; 08-29-07 at 12:42 PM.
Trending Topics
#8
I think the biggest difference between rotary and piston regarding NOx formation are the pressure curves inside the chamber... The rapid up-down motion of the piston lends to a dynamic compression that you may not get in the rotary (largely because of the 1/3 rotor speed). I remember reading an article somewhere a long time ago about an engine tuner who specialized on Hondas after a successful career tuning NASCAR motors. This person said that he could run rediculous static compression of 14:1 or more without blowing the engine because he tuned the combustion chamber to allow a much "softer", or gradual dynamic compression curve. Wish I could recall the guy's site...
Ah! http://www.theoldone.com/
Runs EnDyn... fascinating articles, even if they are for boingers.
Ah! http://www.theoldone.com/
Runs EnDyn... fascinating articles, even if they are for boingers.
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
#11
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/10_year_icon.png)
iTrader: (1)
Join Date: Jul 2004
Location: Rocket City, Alabama
Posts: 1,035
Likes: 0
Received 2 Likes
on
2 Posts
The combustion of fuel/air inside the rotary is not really any hotter than a piston motor; the reason the rotary has a hotter exhaust is because the rotary has to open up and dump the exhaust gasses before they are fully expanded. If held in longer like a piston motor does, the gasses begin to do negative work on the face of the rotor, and power is lost. So, the rotary exhaust port opens up sooner and dumps out the gasses while they are still much hotter. In a piston motor, the gasses are expanded further inside the motor, doing a little more work on the piston and crank. The old Pressure versus Temperature gas laws always hold true, so further expanded = lower pressure = lower temp relationship holds true, so the exhaust is cooler when it comes out of the piston motor. This is also the one basic reason why rotaries get worse gas mileage than a comparable power piston motor - the rotary has to open up and dump the exhuast before extracting the full amount of work out of it. Wasted energy is going out the exhaust port.
#12
advanced novice
![](https://www.rx7club.com/images/misc/05_year_icon.png)
dont think about putting just any turbo muffler on because you will destroy it and i mean destroy. so speed the money buy something that will last
#13
counting the days...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Mar 2005
Location: Canaan, CT
Posts: 186
Likes: 0
Received 0 Likes
on
0 Posts
The combustion of fuel/air inside the rotary is not really any hotter than a piston motor; the reason the rotary has a hotter exhaust is because the rotary has to open up and dump the exhaust gasses before they are fully expanded. If held in longer like a piston motor does, the gasses begin to do negative work on the face of the rotor, and power is lost. So, the rotary exhaust port opens up sooner and dumps out the gasses while they are still much hotter. In a piston motor, the gasses are expanded further inside the motor, doing a little more work on the piston and crank. The old Pressure versus Temperature gas laws always hold true, so further expanded = lower pressure = lower temp relationship holds true, so the exhaust is cooler when it comes out of the piston motor. This is also the one basic reason why rotaries get worse gas mileage than a comparable power piston motor - the rotary has to open up and dump the exhuast before extracting the full amount of work out of it. Wasted energy is going out the exhaust port.
#14
Water Boy
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Aug 2007
Location: MontCo, MD (Speed Cameras FTL)
Posts: 363
Likes: 0
Received 0 Likes
on
0 Posts
The 8's are getting 25-ish as I understand it. I believe that Mazda moved the exhaust ports on the irons a bit to help get a little more power and mileage from the engines.
#15
counting the days...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Mar 2005
Location: Canaan, CT
Posts: 186
Likes: 0
Received 0 Likes
on
0 Posts
my 12a gets 25 on the highway doing 80... on the other hand, the Renisis makes just a bit more power
![Icon No2](https://www.rx7club.com/images/smilies/icon_no2.gif)
#16
advanced novice
![](https://www.rx7club.com/images/misc/05_year_icon.png)
#17
Water Boy
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Aug 2007
Location: MontCo, MD (Speed Cameras FTL)
Posts: 363
Likes: 0
Received 0 Likes
on
0 Posts

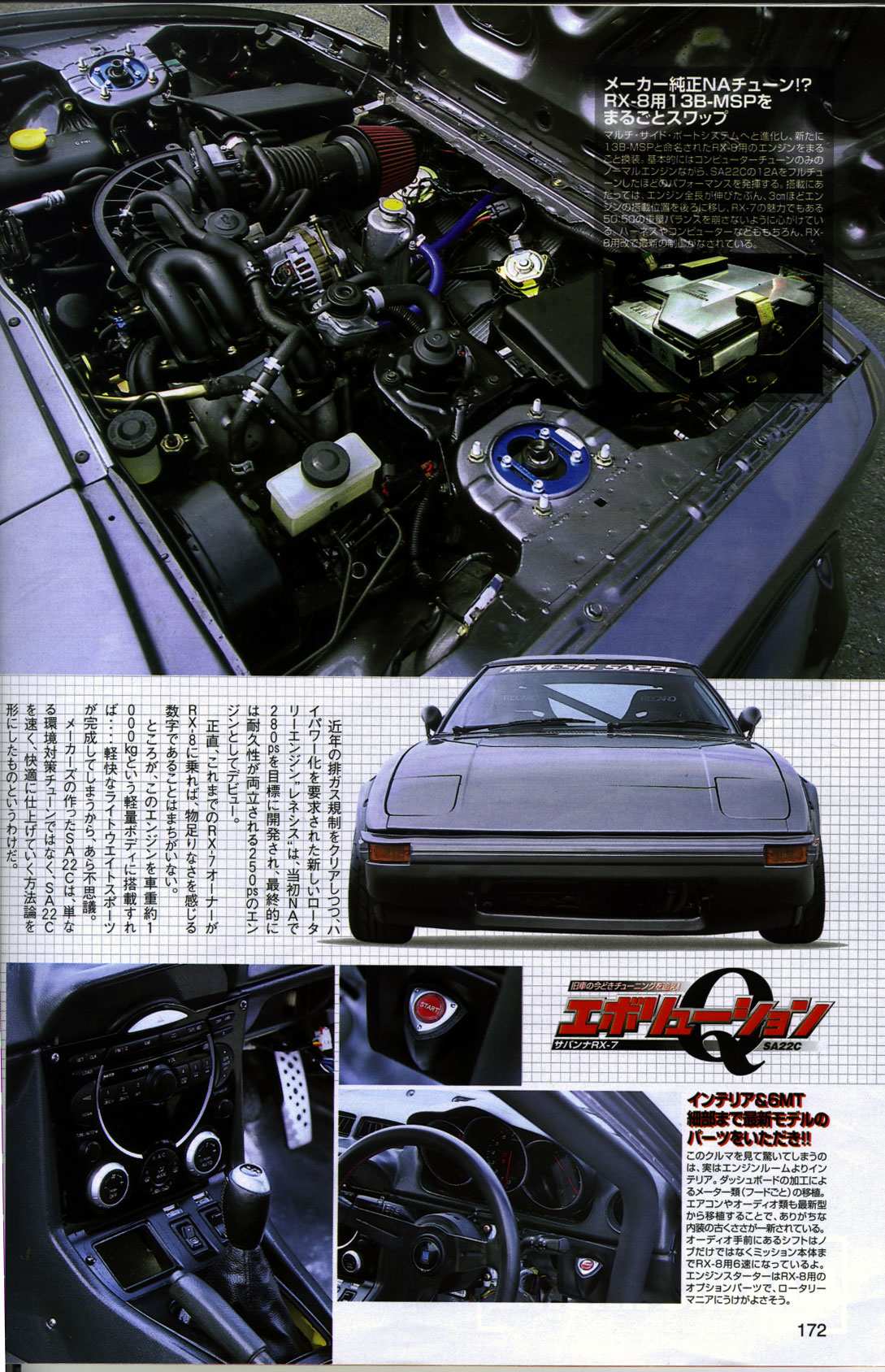

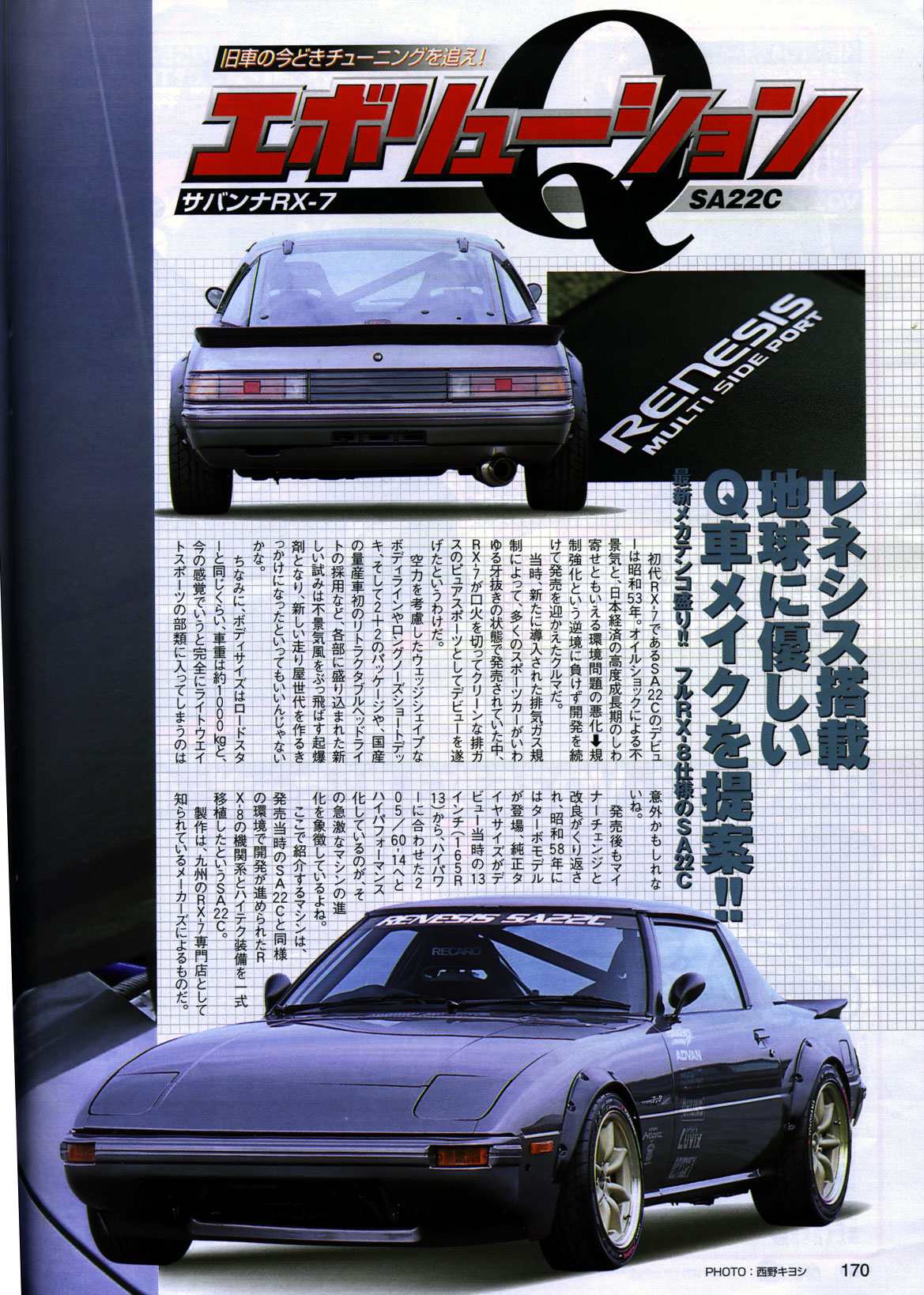

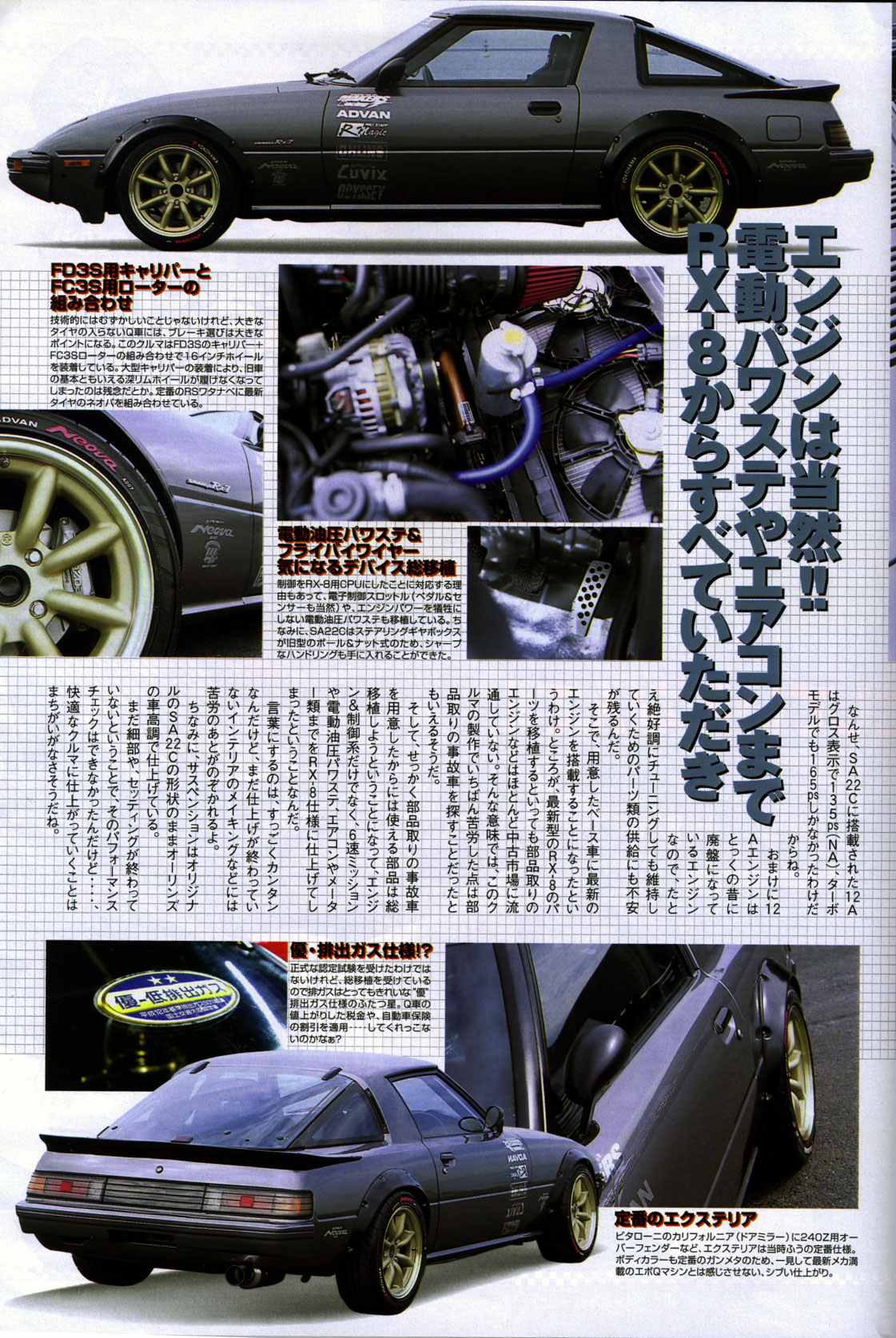

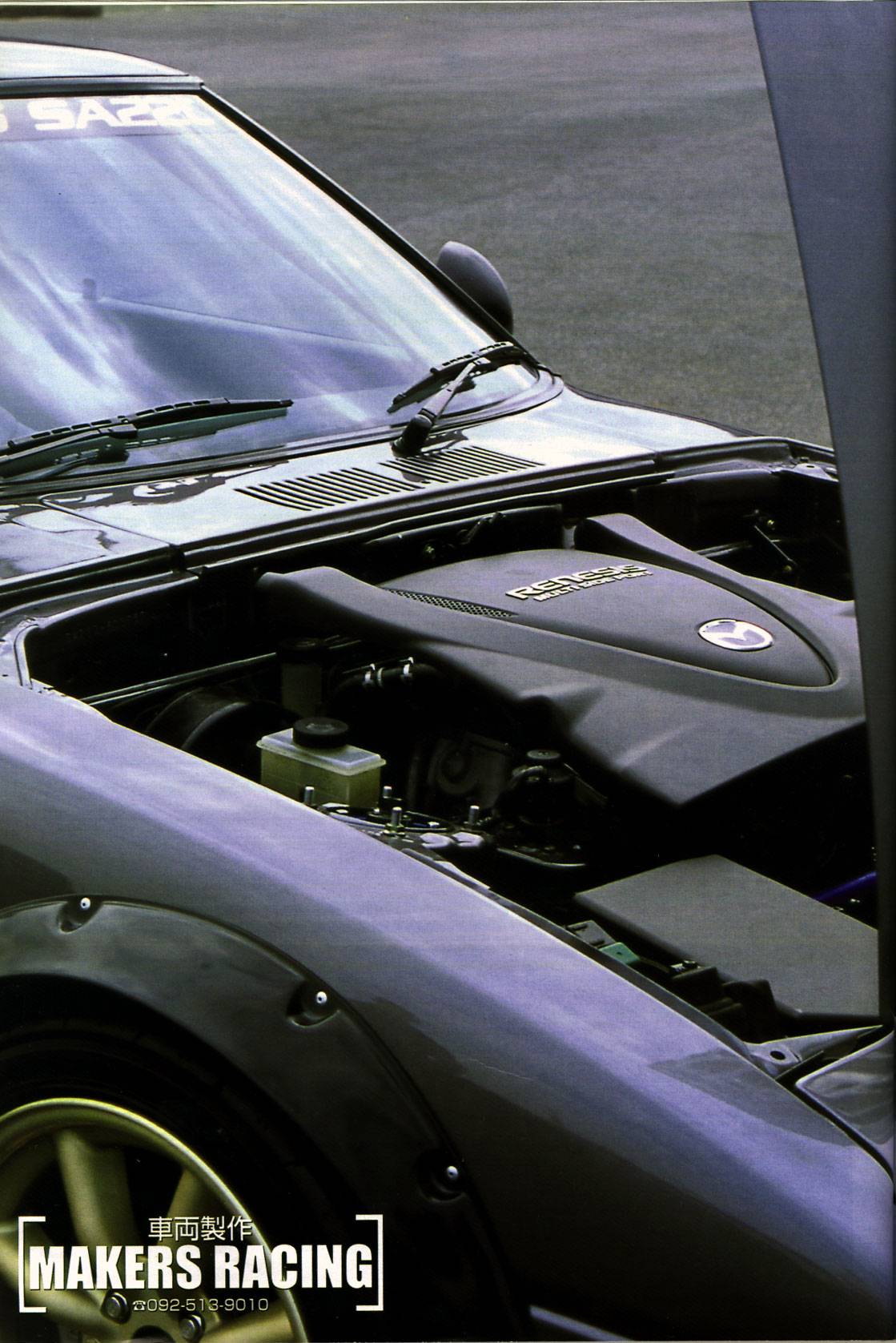

Has anyone done that? Dropped a Renesis into an FB? I mean, the layout's should be roughly the same, once you replaced the wiring, right? And 232 hp stock would give you a fair kick.
18 city, 25 highway by the way, if Mazda's EPA numbers are to be believed.
18 city, 25 highway by the way, if Mazda's EPA numbers are to be believed.
#18
emissions r teh sux
![](https://www.rx7club.com/images/misc/05_year_icon.png)
iTrader: (2)
Join Date: Dec 2005
Location: Stockton Ca
Posts: 888
Likes: 0
Received 0 Likes
on
0 Posts
i had the opportunity to test drive an 8 not too long ago and i must say that the renesis is beautiful. having one in my FB would be a cream dream. from what i understand its a whole **** load of work to do and there is an issue of some sort about the abs controlled speedo (?)
#21
advanced novice
![](https://www.rx7club.com/images/misc/05_year_icon.png)
on what do you mean can you show pics i thought they were very close to what the 6 ports engines are on the 1st and second gen probably close to the later second gen na setups were
