Rotary on engine stand?????
#1
Rotary on engine stand?????
Ok, so I just went and picked myself up an engine stand just so I can roll my engine around and keep it out of the way...Im not at the point of building it up yet, so I dont really need to get one of those plates to support the engine vertically for stacking the housings.
Im just wondering if Its alright to support it solely with the front cover mounts for the time being. I definately dont want to have it supported unsafely, and I am questioning the strength of the 4 bolts in the front cover to hold it up.
Is this an alright way to support the engine, or should I find a way to cradle it better?
If that doesnt sound safe to you guys, any ideas????
Im just wondering if Its alright to support it solely with the front cover mounts for the time being. I definately dont want to have it supported unsafely, and I am questioning the strength of the 4 bolts in the front cover to hold it up.
Is this an alright way to support the engine, or should I find a way to cradle it better?
If that doesnt sound safe to you guys, any ideas????
#2
Too old to act my age
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Feb 2005
Location: Tulsa, Ok.
Posts: 3,164
Likes: 0
Received 0 Likes
on
0 Posts
I took the arms off, and the plate fit right over the A/C mounting studs. No need for a special adapter.
I wouldn't advise hanging it from the front cover. It would be better to use the arms and hang it from the rear like you would a piston engine, if the plate those arms bolt to will not fit on the front housing studs.
I wouldn't advise hanging it from the front cover. It would be better to use the arms and hang it from the rear like you would a piston engine, if the plate those arms bolt to will not fit on the front housing studs.
Trending Topics
#12
Go Hawks!
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Lee Lyons
you could easily make an adaptor plate yourself if you were so inclined enough to do it
Rich
#14
Chad Carson
![](/images/misc/20_year_icon.png)
iTrader: (29)
Join Date: Nov 2001
Location: South of Nashville TN. USA
Posts: 7,010
Likes: 0
Received 0 Likes
on
0 Posts
Man, please someone search this question as it has been asked several times.
Those arms and the plate is not needed! We have built several motor using just the stand. Would the plate make it easier? I would say no but to each his own.

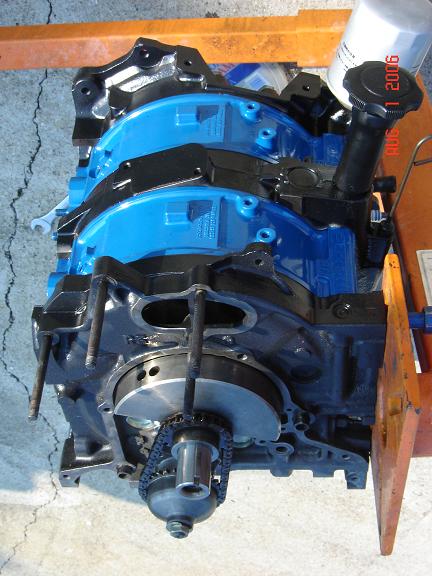

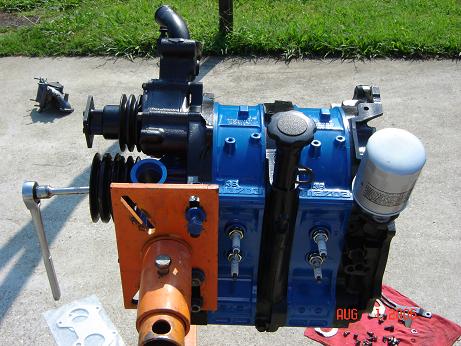

See pics:
Those arms and the plate is not needed! We have built several motor using just the stand. Would the plate make it easier? I would say no but to each his own.
See pics:
#16
Chad Carson
![](/images/misc/20_year_icon.png)
iTrader: (29)
Join Date: Nov 2001
Location: South of Nashville TN. USA
Posts: 7,010
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by trochoid
You need to use the arms with the S3 rear iron because the coolant pipe is longer due to the tee for the beehive.
#17
Or you can forget what everyone else said in this thread and follow my advice. ![Big Grin](https://www.rx7club.com/images/smilies/biggrin.gif)
I use all four arms. No need for a special 'rotary' adaptor head. The only time I ran into a problem was on an S3 rear plate with its longer heater tube. Slightly shorter arms would do the trick, I think.
![Big Grin](https://www.rx7club.com/images/smilies/biggrin.gif)
I use all four arms. No need for a special 'rotary' adaptor head. The only time I ran into a problem was on an S3 rear plate with its longer heater tube. Slightly shorter arms would do the trick, I think.
#18
Chad Carson
![](/images/misc/20_year_icon.png)
iTrader: (29)
Join Date: Nov 2001
Location: South of Nashville TN. USA
Posts: 7,010
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Jeff20B
Or you can forget what everyone else said in this thread and follow my advice. ![Big Grin](https://www.rx7club.com/images/smilies/biggrin.gif)
I use all four arms. No need for a special 'rotary' adaptor head. The only time I ran into a problem was on an S3 rear plate with its longer heater tube. Slightly shorter arms would do the trick, I think.
![](https://www.rx7club.com/forum/attachment.php?postid=2183088)
![Big Grin](https://www.rx7club.com/images/smilies/biggrin.gif)
I use all four arms. No need for a special 'rotary' adaptor head. The only time I ran into a problem was on an S3 rear plate with its longer heater tube. Slightly shorter arms would do the trick, I think.
Look at his picture.
Take the second arm (going from the top down) of the motor and off the stand.
Now you have 3 arms only.
See where the arms bolt to the motor?
See where the arms bolt to the stand?
Now remove the arms and bolt the motor to the stand and be done with all the nonsence. It is quite easy and no need for any special plate or adjustable arms to adjust.
But to each his own so it's your money if you want a fancy bracket.
#19
We have the "original" Rotary Engine Stand Adaptor, which includes bolts to attach it to the engine stand and lug nuts to attach the engine to the adaptor ($10 value). We also include a free Eccentric Oil Bypass Elimination Kit (three 5/16th inch lockwashers with instructions
), so you don't waste $10+ on an unnecessary machined insert. The adaptor is 7/16th inch thick steel, plasma cut, formed and powdercoated. Well balanced and strong enough to support a fully-dressed engine.
![](http://pineappleracing.com/Merchant2/graphics/00000001/RESAcollage.jpg)
http://www.pineappleracing.com
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
![](http://pineappleracing.com/Merchant2/graphics/00000001/RESAcollage.jpg)
http://www.pineappleracing.com
#20
Former Site Sponsor
Join Date: Aug 2003
Location: Tacoma WA
Posts: 4,368
Likes: 0
Received 0 Likes
on
0 Posts
Here is mine on E-bay with link below...
http://cgi.ebay.com/ebaymotors/ws/eB...2616021&rd=1,1
Later
Dan
http://cgi.ebay.com/ebaymotors/ws/eB...2616021&rd=1,1
Later
Dan
