Rear Hatch Strut repair 101

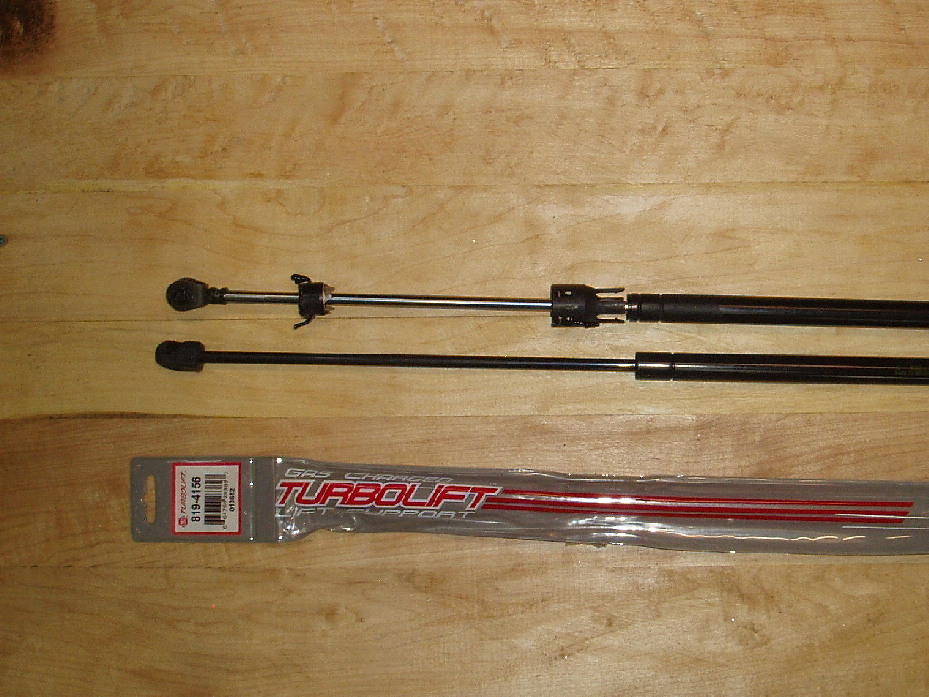

As I have been restoring my Son's RX7 I found that the rear hatch glass would not stay up. No spares from Mazda Canada, stock depleted. I found similar struts on ebay rated at 60LBS extended. First step is to retrive the ball stud. The Stock strut uses an internal ring to hold the ball stud in. It is not worth trying to dig it out so I used a hack saw to cut the ball fitting. It is heavy steel.

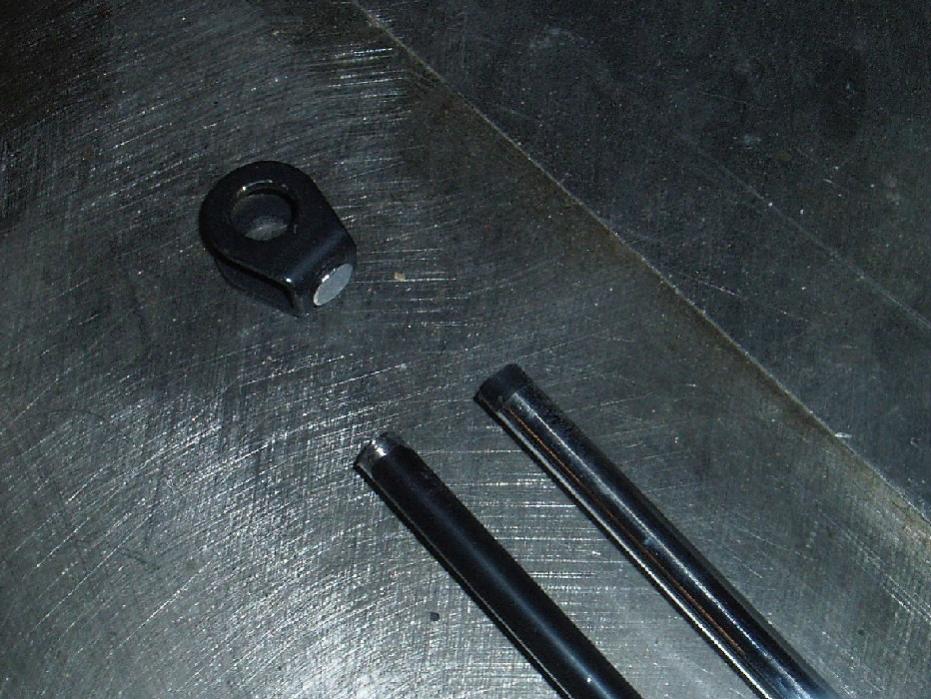

Next step is to cut the old eye off of the old strut and to cut the new strut rod to length and clean for TIG welding. Burn off the paint from the Eye fitting.

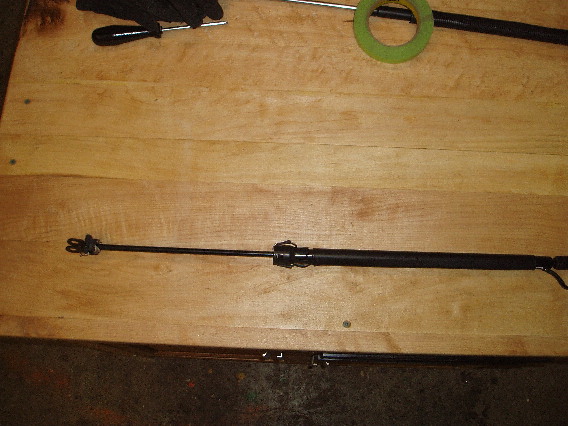

The same is done for the rear wiper strut and electrics. Cut the wires near the terminal and to remove the contact section just turn and pull from the strut body. A button is need for the top section and I used a peice of 7/16" alum rod with a 5/16" hole drilled into the centre of it.

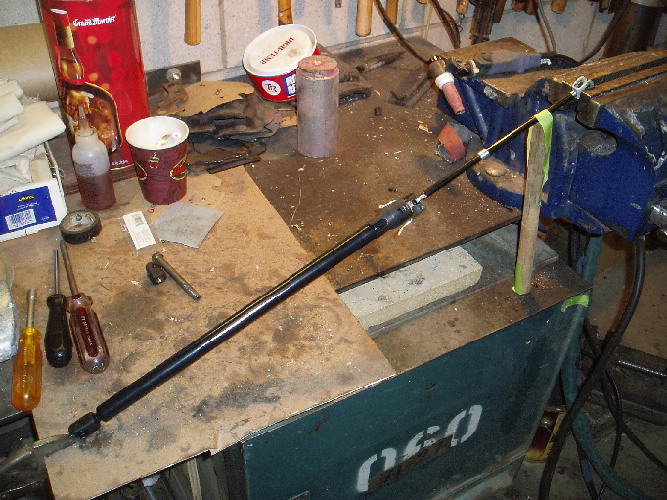

Next step is welding. Note the set up. The strut body is insulated so that no current can flow through the strut body and rod piston, this will damage the seal. My TIG set up is over kill here as I am using a water cooled torch with High Frequency start.
After welding paint the rod eye with a rattle can and I used heat shrink tubing to hold the wires in place.
Last step is to install. I now have a rear hatch that stays up,( one new strut will hold the hatch up)
TonyK.
Next step is to cut the old eye off of the old strut and to cut the new strut rod to length and clean for TIG welding. Burn off the paint from the Eye fitting.
The same is done for the rear wiper strut and electrics. Cut the wires near the terminal and to remove the contact section just turn and pull from the strut body. A button is need for the top section and I used a peice of 7/16" alum rod with a 5/16" hole drilled into the centre of it.
Next step is welding. Note the set up. The strut body is insulated so that no current can flow through the strut body and rod piston, this will damage the seal. My TIG set up is over kill here as I am using a water cooled torch with High Frequency start.
After welding paint the rod eye with a rattle can and I used heat shrink tubing to hold the wires in place.
Last step is to install. I now have a rear hatch that stays up,( one new strut will hold the hatch up)
TonyK.
