Rear brake line removal

Anyone have any advice on how to get the rubber brake hose off on the rear disc brakes of a gsl-se? I got the fronts off with a flare nut wrench. In the rear I can get my wrench around the metal line's nut but then have no clearance to move it at all. Any advice on what other tools or techniques work would be appreciated. Thank you.
Old 07-05-07, 07:49 PM
  #2
Rotary Enthusiast


'84-12A-GSL's Avatar

Join Date: May 2007
Location: Canada
Posts: 770
Likes: 0
Received 0 Likes on 0 Posts
Having recently done my rear brakes, remove the caliper, than there's plenty of room to get your wrench on it...17mm I believe. use lots of WD-40 on them, cause they're a pain.
Old 07-05-07, 09:38 PM
  #3
RX for fun

iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,926
Likes: 0
Received 22 Likes on 19 Posts
loosen the line before removing the caliper. Use a flare wrench if you can.
Old 07-05-07, 09:54 PM
  #4
Full Member

Thread Starter

rx7convert22's Avatar

Join Date: Mar 2006
Location: Maryland (20794)
Posts: 165
Likes: 0
Received 0 Likes on 0 Posts
I tried to loosen it, but like I said I can get the flare nut wrench around it, but then have no room left to move it.
Old 07-06-07, 01:05 AM
  #5
RX for fun

iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,926
Likes: 0
Received 22 Likes on 19 Posts
My bad, you want to replace the rubber line. If thats the case, use 10mm to separate the rubber from the metal line, and unbolt the entire caliper from the bracket.
Old 07-06-07, 06:08 AM
  #6
Junior Member


Aneby's Avatar

Join Date: Aug 2003
Location: sweden
Posts: 27
Likes: 0
Received 0 Likes on 0 Posts
Well, I removed the brakehoses from my rex about a month ago and it was a real pain
If I understood you right, the nut which attaches the hose to the caliper isn´t the problem, it´s the metal brakeline-connection as Wackyracer stated above!?

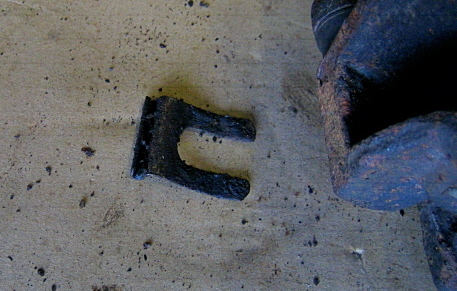

Between the metal brakeline and the brakehose you´ll find a washer-type-thing (don´t even know what it´s called in Swedish, but you can se what it looks like belowe) that seems to function as some sort of distancer and holds the lineconnection in place. If you use a hammer and maybe a screwdriver you can gently knock it upwards until it comes loose! As mentioned before, lots of WD-40 helps

Hope this helps!!
Attached Thumbnails Rear brake line removal-bricka.jpg
Old 07-06-07, 11:52 AM
  #7
Say hello to Mr.Wankel

iTrader: (7)

dbragg's Avatar

Join Date: Nov 2004
Location: Cartersville, Ga
Posts: 5,962
Likes: 0
Received 1 Like on 1 Post
dont use wd-40, use PB blaster. works much better
Old 07-06-07, 05:06 PM
  #8
Senior Member

iTrader: (3)

1stgenNutt's Avatar

Join Date: Dec 2006
Location: flatrock Alabama
Posts: 386
Likes: 0
Received 0 Likes on 0 Posts
vise grips

sometimes if youve striped the 10mm vise grips work wonders . i my self havent had this problem YET!! ? go buy a good set of brake line wrenchs. lock the 17mm on the back side of the line and 10mm on the brake line itself pop it goes
on the calipur remove it from the car place calipur in bench vise and a really good 17mm snapon, matco ,craftsman boxed end place hose thru boxed end and on nut and pop it goes. thank you ill be here all week. lol im having fun here.
Old 07-08-07, 08:13 AM
  #9
Full Member

Thread Starter

rx7convert22's Avatar

Join Date: Mar 2006
Location: Maryland (20794)
Posts: 165
Likes: 0
Received 0 Likes on 0 Posts
Today I am going to try getting them off again. One trick I use for the side where the hose meets with the caliper is cut the hose as close as possible to that side and then you can just use a deep socket on it and it comes of very easily. I'll let you all know if I have success. I also can' t wait to see how hard the one underneath the back of the car is as well Thanks for all the advice from everyone.
