Rear Bearing replacement...Forgot something
#1
Senior Member
Thread Starter
iTrader: (1)
Join Date: May 2006
Location: State College, PA
Posts: 459
Likes: 0
Received 0 Likes
on
0 Posts
Rear Bearing replacement...Forgot something

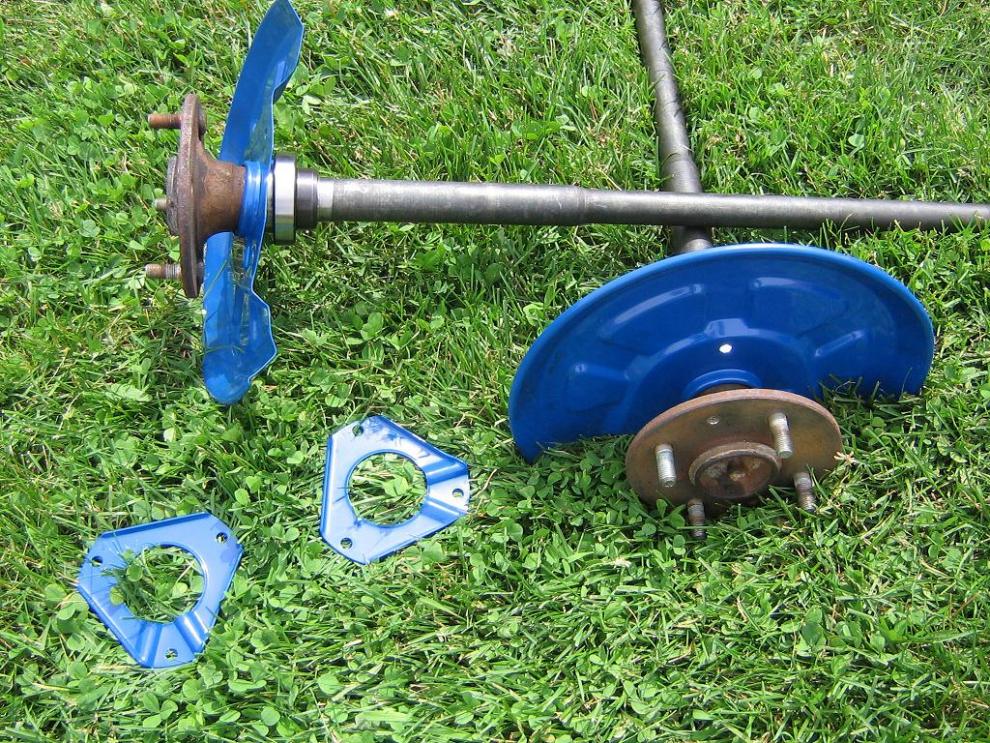

What's wrong with this pic of my new bearings installed on my axles(only cut them off in the first place to get the backing plates off and powdercoated)? So let me guess...I have to cut off the brand new bearings and collars and get new ones, rignt? I got collars with the new bearing from Mazda last time. They didn't mention the bearings come with collars, so I have a spare set of collars...If this is the case, is there a cheaper source for JUST the bearing from somewhere else? 1984 GSL-SE...
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,981
Received 2,688 Likes
on
1,903 Posts
the collar is the part that actually holds the bearing, so if you're good with the press you can press of the bearings just using the inner race, and reuse.
#3
Waffles - hmmm good
iTrader: (1)
You just need to get new collars. The bearings will come right off once the collars are
cut/removed. Whether you press or cut off the existing collars you need new onces because
the old ones can't be reused, already stretched from the installation.
cut/removed. Whether you press or cut off the existing collars you need new onces because
the old ones can't be reused, already stretched from the installation.
#5
Senior Member
Thread Starter
iTrader: (1)
Join Date: May 2006
Location: State College, PA
Posts: 459
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the replies...No scared dogs, no embedded tools, probably some frightened neighbors, though. Pretty standard stuff, seems that's how this entire process has gone, car's been down since last summer when I ordered new suspension.
I am not good with the press, because I don't have one. It took me two months to find someone willing to put the new bearings on. I had to drive 1 1/2 hrs. to get there, and had to wait almost a month for them to be done. I plan on cutting the collars off...again. When I initially cut them off the first time, bearings were good, but wouldn't budge(come off) so I had to cut them off too, just to get the backing plates off. But the bearings SHOULD come off without ruining them? AND without using a press?
I am not good with the press, because I don't have one. It took me two months to find someone willing to put the new bearings on. I had to drive 1 1/2 hrs. to get there, and had to wait almost a month for them to be done. I plan on cutting the collars off...again. When I initially cut them off the first time, bearings were good, but wouldn't budge(come off) so I had to cut them off too, just to get the backing plates off. But the bearings SHOULD come off without ruining them? AND without using a press?
#6
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,981
Received 2,688 Likes
on
1,903 Posts
no you need a press. harbor freight, they are cheap
#7
Waffles - hmmm good
iTrader: (1)
They should. Try a bit of heat on them and they may just slide right off. The bearings aren't a
friction fit, thats why you need the collar.
BTW, you can install the collars without a press. Many will poopoo this idea but it did work fine
for me. I did it on mine because I had the same issue, no place I could trust to do it locally at
the time.
I got some large diameter iron water pipe at the hardware store. It comes with an inside
diameter that will just fit over the axle where the collar goes. I then slid the collar on
after I had all my backing plates, mountng plates, and bearings placed. I then placed the axle
vertically with it sitting on the axle end (where the wheel mounts). I then proceeded to
slide the large iron pipe down on the collar, lightly at first to make sure it went on nice
and straight. Then I just proceeded to use the pipe like a large slide hammer and banged
those collars home with it. The soft iron pipe will not hurt the collar or the axle, as it will
deform from the hits and it actually worked for me very well.
friction fit, thats why you need the collar.
BTW, you can install the collars without a press. Many will poopoo this idea but it did work fine
for me. I did it on mine because I had the same issue, no place I could trust to do it locally at
the time.
I got some large diameter iron water pipe at the hardware store. It comes with an inside
diameter that will just fit over the axle where the collar goes. I then slid the collar on
after I had all my backing plates, mountng plates, and bearings placed. I then placed the axle
vertically with it sitting on the axle end (where the wheel mounts). I then proceeded to
slide the large iron pipe down on the collar, lightly at first to make sure it went on nice
and straight. Then I just proceeded to use the pipe like a large slide hammer and banged
those collars home with it. The soft iron pipe will not hurt the collar or the axle, as it will
deform from the hits and it actually worked for me very well.
Trending Topics
#9
Senior Member
Thread Starter
iTrader: (1)
Join Date: May 2006
Location: State College, PA
Posts: 459
Likes: 0
Received 0 Likes
on
0 Posts

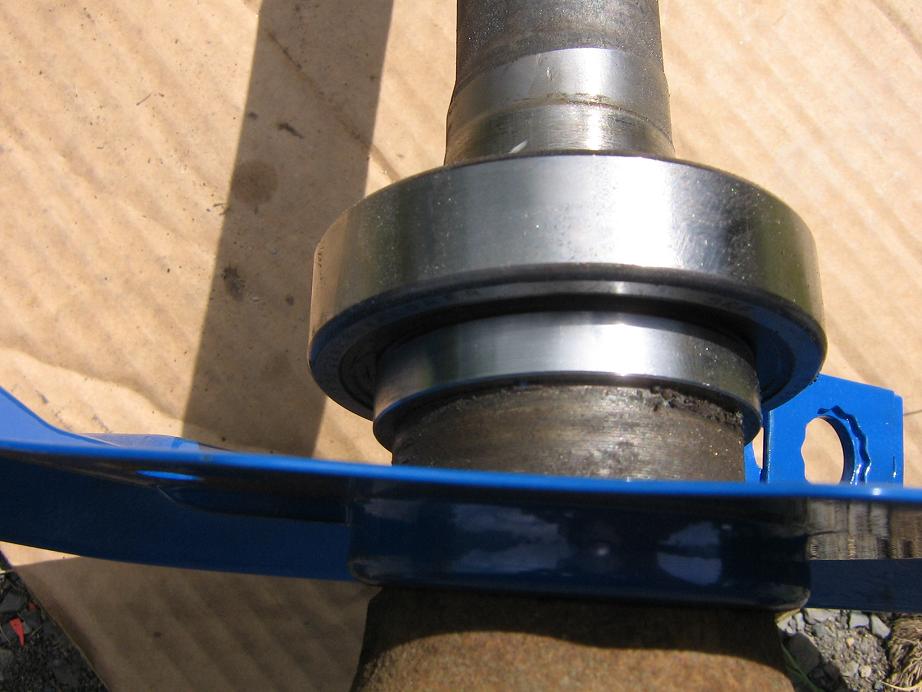

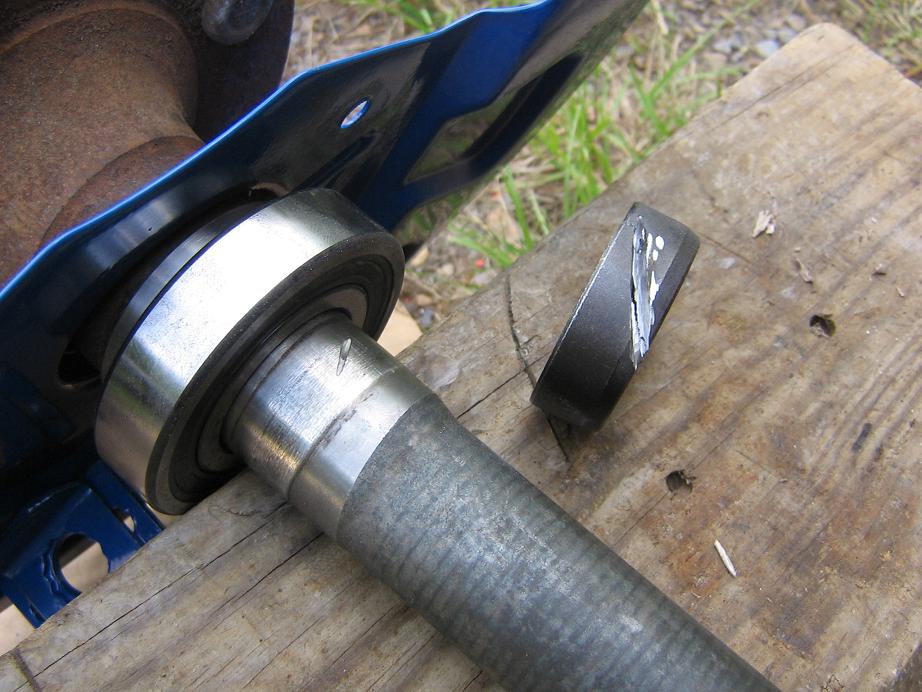

Well, I got the collars cut off. Cut into my axle alot more than I wanted...Definately no way to pull on the inner race of the bearing from the backside...Perhaps try to find a way to pull on the spacer? Bearings don't budge, spacers don't budge(rotate). U guys sure they're not a press fit, also?
#10
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,981
Received 2,688 Likes
on
1,903 Posts
Well, I got the collars cut off. Cut into my axle alot more than I wanted...Definately no way to pull on the inner race of the bearing from the backside...Perhaps try to find a way to pull on the spacer? Bearings don't budge, spacers don't budge(rotate). U guys sure they're not a press fit, also?
i've used the pipe method to install transmission bearings, it works great.
#11
Waffles - hmmm good
iTrader: (1)
Well, I got the collars cut off. Cut into my axle alot more than I wanted...Definately no way to pull on the inner race of the bearing from the backside...Perhaps try to find a way to pull on the spacer? Bearings don't budge, spacers don't budge(rotate). U guys sure they're not a press fit, also?
tight. I have an SA so things may be different on an FB axle.
#12
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,981
Received 2,688 Likes
on
1,903 Posts
#13
Senior Member
Thread Starter
iTrader: (1)
Join Date: May 2006
Location: State College, PA
Posts: 459
Likes: 0
Received 0 Likes
on
0 Posts
Well, I hit both dealerships around, and every machine shop and garage. Nobody can/will remove the bearings. Mazda won't even try...They say "we sent all those old tools back to Mazda year ago...". SO, ordered two more. Oh well, live and learn. Thanks for the help, guys.
#14
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,981
Received 2,688 Likes
on
1,903 Posts
Well, I hit both dealerships around, and every machine shop and garage. Nobody can/will remove the bearings. Mazda won't even try...They say "we sent all those old tools back to Mazda year ago...". SO, ordered two more. Oh well, live and learn. Thanks for the help, guys.
