legokcen

iTrader: (8)

When I went from the Holley to the Weber, I lost some of the connections I had for some of the vac and crank case lines. Plus, I can't remember how I hooked up some of them. I now have 3 places that I just plugged up, but I don't know if I should or not.

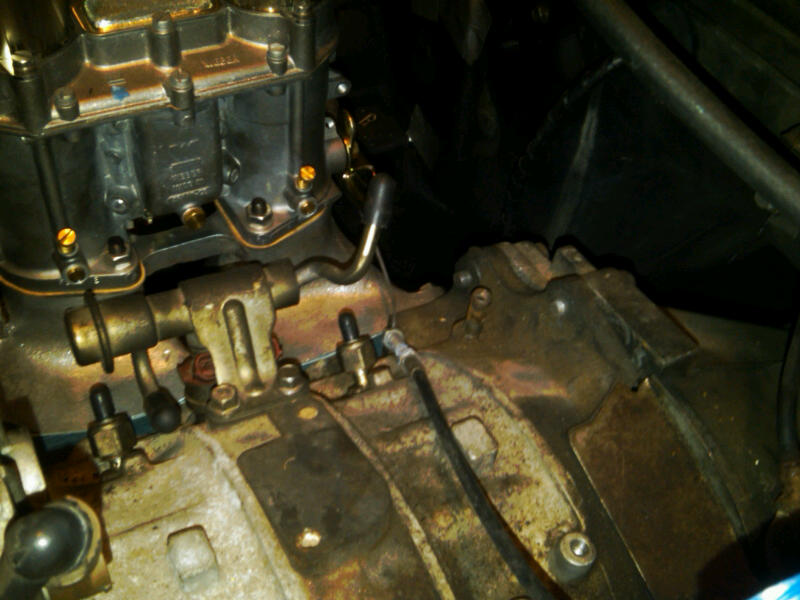

1 is on the rear plate

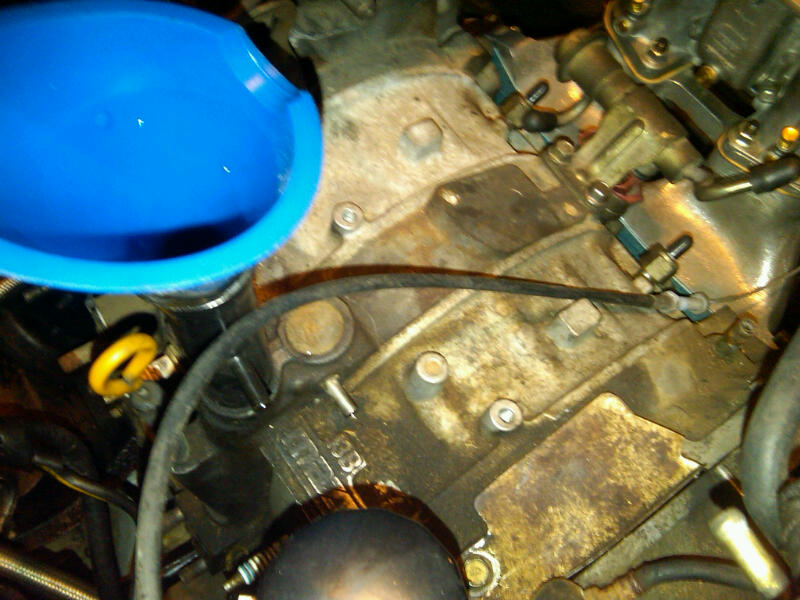

1 is on the oil filler neck
1 is beside the oil filler neck

Also, I had the trailing advance plugged before and the leading was hooked up with the holley. Should I just plug the leading now too?

Here are pictures. Thanks in advance....

blwfly

iTrader: (4)

the one on the rear plate is a water source for a tb just cap it and put a clamp on

the other 2 need to me hooked to a vac source with a pvc valve or with a catch can for the water.

rxtasy3

iTrader: (2)

do not plug the vacuum pods on the dist. leave them open if ur not using vac advanced.

Sgt Fox

iTrader: (3)

May I ask why?

blackdeath647

iTrader: (2)

this will create a vacuum leak, unless you have locked your distributor. otherwise plug them up (i ran mine like this for about 4 years no problems) but it runs smoother if you "T" them up and run a constant vacuum for it.

legokcen

iTrader: (8)

With a Weber and the Manifold with it, where is the best place to hook up a vacuum? I drilled into the manifold to plumb in one for the brake assist. I'd rather not redrill in there, but I can if I have to.

legokcen

iTrader: (8)

Should I drill and tap into the manifold to get a place to pull a vac like i did for the power brake assist?

rxtasy3

iTrader: (2)

i'm not running vac adv and i don't have them capped off. they're not a source of vac so how can they create a vac leak? they need port vac to operate, otherwise they do nothing.

Jeezus

iTrader: (4)

The iron needs a PCV valve to a vacuum source (I teed off the brake booster line), the filler tube just gets a small filter.

trochoid

iTrader: (6)

All of the aftermarket intake manis I've seen have a barb for brake boosting and another for vacuum. 3/8" NPT for brakes, 1/8" NPT for vacuum, (in the primary runners). But I suspect you're still running the SE LIM so that won't apply. Drill and tap for vac advance. If you're going to run vac advance, run it for both leading and trailing.
