Marking Triangle on front shocks?
#1
vrrmmmmm
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
Join Date: Jul 2005
Location: BAY
Posts: 665
Likes: 0
Received 0 Likes
on
0 Posts
Marking Triangle on front shocks?
Im socking the 2 17mm bolts at the bottom of my catridge in penetrating oil right now before I take them off and put on RB spring and Tokico HP shocks.
My hanyes manual says there is a marking triangle I need to make note of, but I can't seem to find it.
Do I need to remember where this is to install my new springs & shocks?
My hanyes manual says there is a marking triangle I need to make note of, but I can't seem to find it.
Do I need to remember where this is to install my new springs & shocks?
#3
Originally Posted by DwArF
I got my shocks off and am confused about my spring compressor.
The triangle is on the rubber part of the upper mount - clean off the dirt and dust and you'll see it in the ridge outside of where that big nut is in the center that holds onto the strut cartridge. To get max caster and camber point it in and back (toward engine and firewall)
#6
Hunting Skylines
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Join Date: Apr 2001
Location: Brisbane, Queensland, Australia.
Posts: 3,431
Likes: 0
Received 3 Likes
on
3 Posts
Originally Posted by nimrodTT
LOL, did you get the right compressor?
The triangle is on the rubber part of the upper mount - clean off the dirt and dust and you'll see it in the ridge outside of where that big nut is in the center that holds onto the strut cartridge. To get max caster and camber point it in and back (toward engine and firewall)
The triangle is on the rubber part of the upper mount - clean off the dirt and dust and you'll see it in the ridge outside of where that big nut is in the center that holds onto the strut cartridge. To get max caster and camber point it in and back (toward engine and firewall)
Trending Topics
#8
vrrmmmmm
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
Join Date: Jul 2005
Location: BAY
Posts: 665
Likes: 0
Received 0 Likes
on
0 Posts
I just took my front strut assemblies to a shop to get the struts and springs put on.
After i took my rear springs out I noticed the seat was in horrible condition, so I have to wait for my new ones to come from mazdatrix.
After i took my rear springs out I noticed the seat was in horrible condition, so I have to wait for my new ones to come from mazdatrix.
#9
Slide Or Die
![](https://www.rx7club.com/images/misc/10_year_icon.png)
iTrader: (3)
Join Date: May 2004
Location: Dayton, OH
Posts: 1,076
Likes: 0
Received 0 Likes
on
0 Posts
um.. you should probably not worry about the arrow since you should get your car aligned after replacting the struts.. and they will set it where it needs to be.. since that is how you adjust the camber and caster..
#10
Originally Posted by REVHED
Are you sure? On my car the arrow points away from the offset part of the strut top. So for max caster and camber the arrow is pointing out and forward. I did think that was weird at the time because I could have sworn my old car had it the way you said.
Originally Posted by trochoid
The FSM shows the settings for the arrows and what degrees each one is.
I don't recognise that compressor. Take it back and get the other style.
I don't recognise that compressor. Take it back and get the other style.
#11
Hunting Skylines
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Join Date: Apr 2001
Location: Brisbane, Queensland, Australia.
Posts: 3,431
Likes: 0
Received 3 Likes
on
3 Posts
Originally Posted by nimrodTT

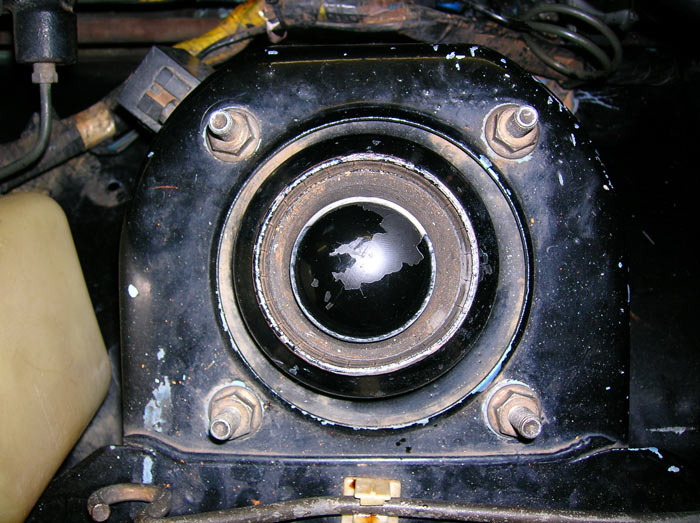

According to my logic - you can see the mount is more backward and inward in the position I described than in any other - I am correct.
![](https://www.rx7club.com/attachments/1st-generation-specific-1979-1985-18/133471-marking-triangle-front-shocks-strut.jpg)
#12
FB+FC=F-ME
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Alignment shops wont usually drop the strut to set your camber/castor.Their book will just say,"no adjustment" for that car.The only readily adjustable thing on our cars is toe.
Why they made the strut top eccentric is beyond me since you cant turn it to set camber without disturbing the castor,which might already be OK....and vise-versa.
My arrows are worn off,but both my struts both have the "dome" towards the inner/rear corner.
The FSM calls for the pass side to be to the inner/rear and the drivers side to the inner/front,for standard adjustment.Not for both to be in the logical inner/rear postion.This indicates that the strut tops or perhaps even the struts themselves are dissimilar.
Mine is not in the FSM's recommended postions either and my alignment comes out fine every year,with only the toe needed adjustment.
Heres how the FSM lays it out......
From the drivers seat position,there are 4 bolts that hold each strut top
10 o'clock
2 o'clock
4 o'clock
8 o'clock
With the arrow pointing to each of one of the 4 positions,you get different castor/camber settings.For each strut there are various positions you can choose to change the settings from the factory recomendations of 1.00* camber and 3.50-4.00* castor.(note that SE settings are different with the camber being .35*)
Drivers side....
10 o'clock = +.28* camber and 0* castor
2 o'clock = stock setting,no change
4 o'clock = 0* camber and +.28* castor
8 o'clock = +.28* camber and +.28* castor
Passenger side......
10 o'clock = 0* camber and +.28* castor
2 o'clock = +.28* camber and +.28* castor
4 o'clock = +.28* camber and 0* castor
8 o'clock = stock setting,no change
Why they made the strut top eccentric is beyond me since you cant turn it to set camber without disturbing the castor,which might already be OK....and vise-versa.
My arrows are worn off,but both my struts both have the "dome" towards the inner/rear corner.
The FSM calls for the pass side to be to the inner/rear and the drivers side to the inner/front,for standard adjustment.Not for both to be in the logical inner/rear postion.This indicates that the strut tops or perhaps even the struts themselves are dissimilar.
Mine is not in the FSM's recommended postions either and my alignment comes out fine every year,with only the toe needed adjustment.
Heres how the FSM lays it out......
From the drivers seat position,there are 4 bolts that hold each strut top
10 o'clock
2 o'clock
4 o'clock
8 o'clock
With the arrow pointing to each of one of the 4 positions,you get different castor/camber settings.For each strut there are various positions you can choose to change the settings from the factory recomendations of 1.00* camber and 3.50-4.00* castor.(note that SE settings are different with the camber being .35*)
Drivers side....
10 o'clock = +.28* camber and 0* castor
2 o'clock = stock setting,no change
4 o'clock = 0* camber and +.28* castor
8 o'clock = +.28* camber and +.28* castor
Passenger side......
10 o'clock = 0* camber and +.28* castor
2 o'clock = +.28* camber and +.28* castor
4 o'clock = +.28* camber and 0* castor
8 o'clock = stock setting,no change
Last edited by steve84GS TII; 09-26-05 at 11:16 PM.
#13
Hunting Skylines
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Join Date: Apr 2001
Location: Brisbane, Queensland, Australia.
Posts: 3,431
Likes: 0
Received 3 Likes
on
3 Posts
Originally Posted by evil_motors
um.. you should probably not worry about the arrow since you should get your car aligned after replacting the struts.. and they will set it where it needs to be.. since that is how you adjust the camber and caster..
#15
Slide Or Die
![](https://www.rx7club.com/images/misc/10_year_icon.png)
iTrader: (3)
Join Date: May 2004
Location: Dayton, OH
Posts: 1,076
Likes: 0
Received 0 Likes
on
0 Posts
bull **** i just aligned mine.. and any good alignment shop will drop the strut to adjust the camber/caster.. it even says it on the new hunter 400 and 600 . when you drop the strut and turn it that adjust s both camber and caster in one shot.. then you fine tune the caster with the tension rods... luckly i didnt have to mess with that
