latest turbo swap progress
09-29-05, 12:59 AM
#1
Hunting Skylines
Thread Starter
Join Date: Apr 2001
Location: Brisbane, Queensland, Australia.
Posts: 3,431
Likes: 0
Received 4 Likes
on
3 Posts
latest turbo swap progress
Still a long way to go but it's getting there.

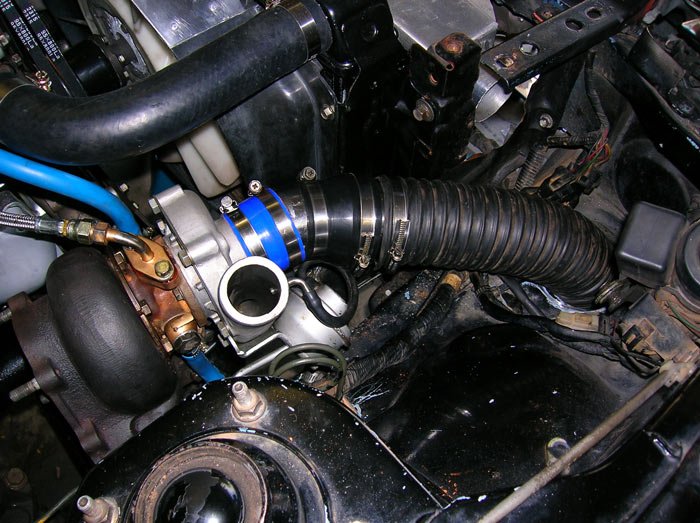

Ducting for cold air intake...

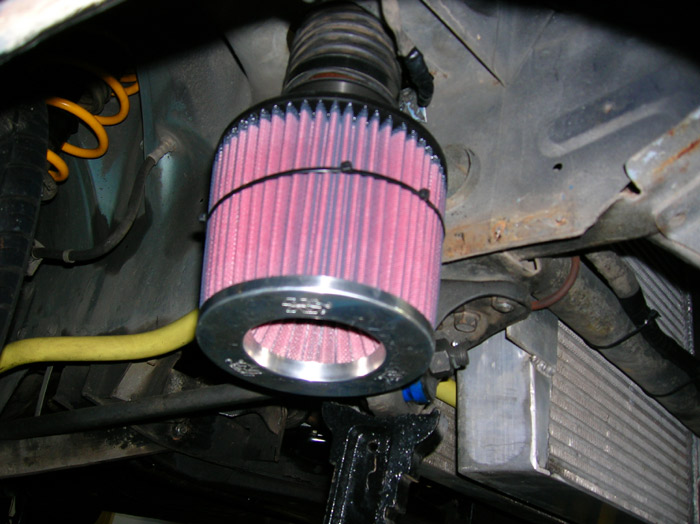

...leading to a big K&N where the headlight washer bottle would normally sit.

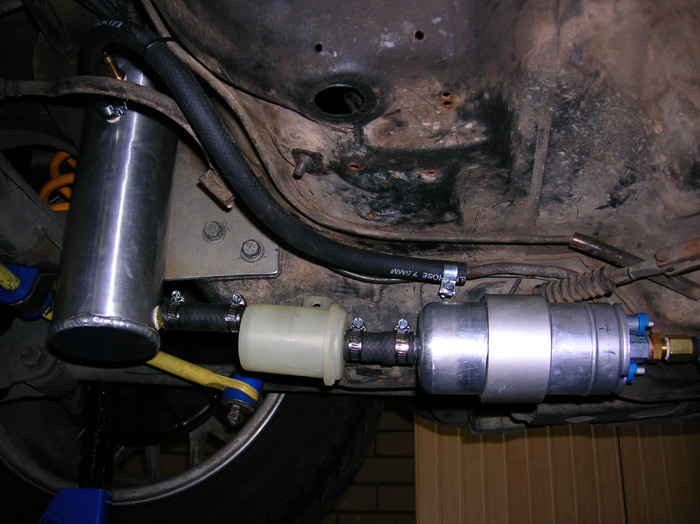

Fuel system consisting of custom made surge tank and 500hp Bosch motorsport pump. Still need to install the Carter filler pump and wire it all up.

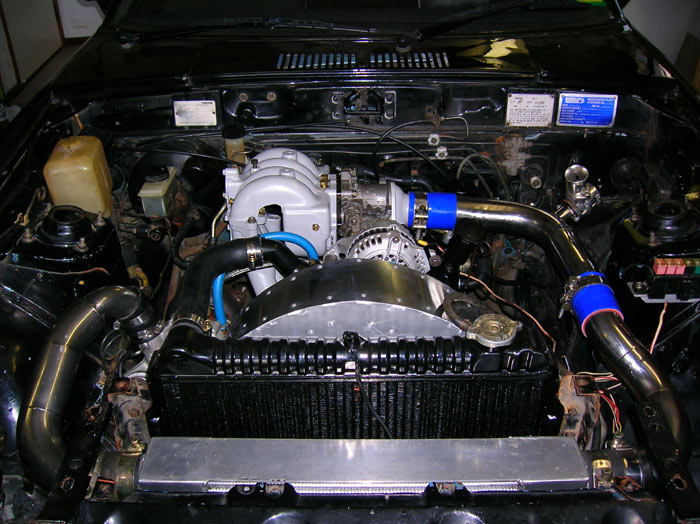

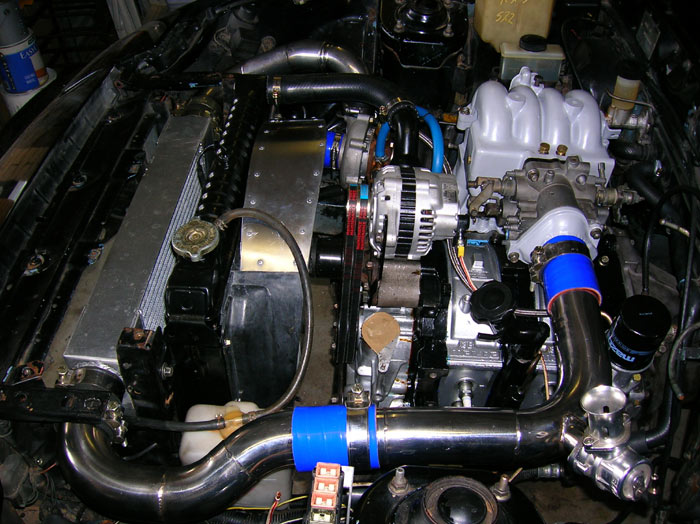

Intercooler piping almost done. Just need to hit it again with the Autosol. I also had to modify the radiator shroud as the fan was just touching it. I'll be putting an electric fan in a little later down the track but this will work well for now.
Ducting for cold air intake...
...leading to a big K&N where the headlight washer bottle would normally sit.
Fuel system consisting of custom made surge tank and 500hp Bosch motorsport pump. Still need to install the Carter filler pump and wire it all up.
Intercooler piping almost done. Just need to hit it again with the Autosol. I also had to modify the radiator shroud as the fan was just touching it. I'll be putting an electric fan in a little later down the track but this will work well for now.
09-29-05, 01:19 AM
#4
Hunting Skylines
Thread Starter
Join Date: Apr 2001
Location: Brisbane, Queensland, Australia.
Posts: 3,431
Likes: 0
Received 4 Likes
on
3 Posts
Originally Posted by LaRazaUnida
Is that a cardboard filter? If so, thats bomb with that much pressure.
And other than that, that baby is ready to go!!! WOOT!
And other than that, that baby is ready to go!!! WOOT!
I'll be running another low pressure filter before the filler pump as well as a proper efi filter before the injectors.
Last edited by REVHED; 09-29-05 at 01:22 AM.
09-29-05, 01:29 AM
#6
Senior Member
Join Date: Jul 2003
Location: North Texas
Posts: 648
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by REVHED
It's before the main fuel pump so it's not under pressure. I'll be running another low pressure filter before the filler pump as well as a proper efi filter before the injectors.
I'll be running another low pressure filter before the filler pump as well as a proper efi filter before the injectors.
09-29-05, 01:29 AM
#7
Hunting Skylines
Thread Starter
Join Date: Apr 2001
Location: Brisbane, Queensland, Australia.
Posts: 3,431
Likes: 0
Received 4 Likes
on
3 Posts
I posted the specs in the other thread I think. It's a large extended port, dowelled, 3mm seals, clearanced rotors, 3 window bearings etc. All the good stuff.
Last edited by REVHED; 09-29-05 at 01:32 AM.
Trending Topics
09-29-05, 01:56 AM
#11
Banned. I got OWNED!!!
Join Date: Dec 2002
Location: wishing i was back in FL
Posts: 4,192
Likes: 0
Received 0 Likes
on
0 Posts
what's scary is this actually happened to my friends TII. most of the water was caught in the intercooler at the bottom. not much actually got in the motor (everything was fine actually) but the AFM got destroyed and we didn't know it till too late. it caused the ecu to run the motor lean and it blew.
we just thought the wideband sensor went bad
we just thought the wideband sensor went bad
09-29-05, 01:59 AM
#12
09-29-05, 02:01 AM
#13
Banned. I got OWNED!!!
Join Date: Dec 2002
Location: wishing i was back in FL
Posts: 4,192
Likes: 0
Received 0 Likes
on
0 Posts
he's not running an afm tho, most likely stand alone and the i/c will catch the big water (if the problem even happens) and only mist will go in the motor which will actually act like water injection
09-29-05, 02:06 AM
#14
Hunting Skylines
Thread Starter
Join Date: Apr 2001
Location: Brisbane, Queensland, Australia.
Posts: 3,431
Likes: 0
Received 4 Likes
on
3 Posts
Thanks for the input. I'll probably move it up so it's not as low. Plus I was thinking about putting something in to shield it from the tire. I'm not planning on driving it in the rain anyway so it should be ok.
09-29-05, 02:09 AM
#15
Banned. I got OWNED!!!
Join Date: Dec 2002
Location: wishing i was back in FL
Posts: 4,192
Likes: 0
Received 0 Likes
on
0 Posts
exactly, i can't even drive mine in the rain. once boost even thinks of coming on the tires just spin. it's awesome, but sad hahaha! a shield could help, but most likely wont. you hit a puddle it's going everywhere. run a bypass thingie (can't remember correct name) that will keep the water from getting all the way up to the turbo.
09-29-05, 03:43 AM
#16
Originally Posted by FB II
exactly, i can't even drive mine in the rain. once boost even thinks of coming on the tires just spin. it's awesome, but sad hahaha! a shield could help, but most likely wont. you hit a puddle it's going everywhere. run a bypass thingie (can't remember correct name) that will keep the water from getting all the way up to the turbo.
09-29-05, 07:21 AM
#17
Apprentice Guru
Join Date: Oct 2001
Location: Cloud Nine and Peak of God
Posts: 1,425
Likes: 0
Received 0 Likes
on
0 Posts
Your project is looking really great, as I would expect from you. Missed the original thread as I was over in Laos but managed to find it with the magical search button. The specifications you selected should result in a great car.
Thanks for the advice on the 12AT dizzy.
Thanks for the advice on the 12AT dizzy.
