Installing new fuel pump (pics)

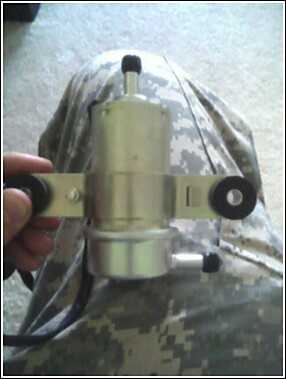

Ok I just got my 98 dollar stock replacement pump( at least I hope I don't have to worry about it for awhile) .

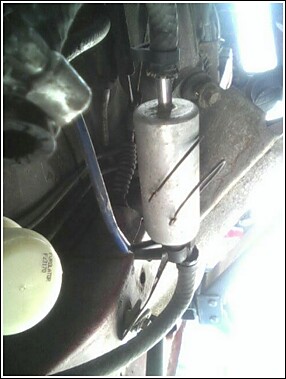

No since the one I have in the car is different. Which end does the line that runs to the fuel filter and which end goes into the other fuel line?
No since the one I have in the car is different. Which end does the line that runs to the fuel filter and which end goes into the other fuel line?
Last edited by kleach18; 10-10-06 at 04:45 PM.
Trending Topics
#8
Just Looking Around
![](/images/misc/20_year_icon.png)
Thread Starter
Join Date: Jan 2002
Location: Fort Benning, Ga./ Anna, Tx.
Posts: 1,830
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by trochoid
Looking in the 85 FSM, Sec 4A, p.3 the straight tube is output and goes to the fuel cut valve, then to the hardline running to the engine bay. You should download a copy o your year of the FSM.
But they don't have a 83 FSM
![Wink](https://www.rx7club.com/images/smilies/wink.gif)
#9
Plumbing is the same, the fittings on the tank are different. The 83 manual has the pluming system scattered over a couple of pages, the S3 shows the entire system on one page. The S3 manuals are better anyway, they cover more.
On your 83 tank the forward tube is the return, the middle the supply and the rear one goes to the cut and check vavle mounted forward of the spare tire well.
I have hard copies of both so searching is easier than looking on the comp.
On your 83 tank the forward tube is the return, the middle the supply and the rear one goes to the cut and check vavle mounted forward of the spare tire well.
I have hard copies of both so searching is easier than looking on the comp.
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
