1st Generation Specific (1979-1985) 1979-1985 Discussion including performance modifications and technical support sections

HOW TO: Paint your 7 for less than $100 (56K Beware!)

Thread Tools

Search this Thread

Old 06-28-07 | 11:15 AM
  #51
Rotary_Powerd's Avatar
Senior Member

Joined: Mar 2007
Posts: 438
Likes: 0
From: Boston MA
Do you guys think gray/silver would "catch" the light as black would? I think that gray/silver would be a good middle ground being as "easy" to apply as black and being able to hide slight "imperfections" almost as well as white.
Old 06-28-07 | 11:29 AM
  #52
dbragg's Avatar
Say hello to Mr.Wankel

iTrader: (7)

Joined: Nov 2004
Posts: 5,962
Likes: 1
From: Cartersville, Ga
in the thread on the mopar forum many have failed trying to use silver. they say it wont work due to having to wet sand it. im not 100% sure why, do a little reading in those threads.


**update**

i ordered my brightside paint yesterday. i have everything i need but rollers, mineral spirits, and peterol(?). ill start sanding and prepping this week/weekend. ill have pics of the whole process.
Old 06-28-07 | 12:01 PM
  #53
Rotary_Powerd's Avatar
Senior Member

Joined: Mar 2007
Posts: 438
Likes: 0
From: Boston MA
http://forums.vwvortex.com/zerothrea...ostid=39584901

Damn white looks really good consistently...
Old 06-29-07 | 04:49 AM
  #54
83RX7clunker's Avatar
Junior Member

Joined: Jun 2007
Posts: 11
Likes: 0
From: MO
THANKS!

I'll check out the other threads and watch this one for awhile also. I have done normal standard paint jobs and some fancy custom ones also spraying.

Cost of paint, reducer, hardner is a killer for just dong an old clunker to make it look better. Add to those costs the primer and thiner etc.. also when needed. I have a couple beaters where the factory paint FELL OFF.

If the Plymouth paint fell off a 95 Aclaim and a 95 minivan, rustoleum has got to do at least as well or better than the factory did! We've had both those vehicles for at least 5 years now and the paint was already off when we got them. Now a rusty roof on both vehicles, but just surface rust. I'll do a test on those, anything will be better than now, and if it truns out good enough I may do some better stuff the same way.

I had never thought of using Rustoleum for an entire vehicle like that.
Old 06-29-07 | 04:55 AM
  #55
83RX7clunker's Avatar
Junior Member

Joined: Jun 2007
Posts: 11
Likes: 0
From: MO
By the way,

Is it really needed to sand down each coat, or just lay down several then sand smooth.

I've known people to do 10 coats of hand rubbed laquer for a fancy car, rubbing out each coat before the next. Really sad!
With laquer when done right each new coat clears away the fog/haze on the previous coat, it's a chemical thing. So really only the last laquere coat needs rubbed out normally. Unless there was other reasons, like letting the car sit for days between coats, or bugs hairs dust and other imperfections needing fixed.

Just wonder if the same for the sanding on this rustoleum roller job?
Old 06-29-07 | 01:41 PM
  #56
dbragg's Avatar
Say hello to Mr.Wankel

iTrader: (7)

Joined: Nov 2004
Posts: 5,962
Likes: 1
From: Cartersville, Ga
the normal is wet sanding every two coats or so. if you wait till the last coat the orange peel will be so bad youll have sanded through the majority of your coats before you get it smooth. sanding every two coats keeps the orange peel down and makes the final coat look better.

you dont have to sand at all, but youre finish wont be that great. at all.
Old 07-03-07 | 12:14 AM
  #57
therx7guy666's Avatar
Rotary till i die!


Joined: Feb 2006
Posts: 150
Likes: 0
From: north carolina
what grit sandpaper should be used??
Old 07-03-07 | 12:18 AM
  #58
dbragg's Avatar
Say hello to Mr.Wankel

iTrader: (7)

Joined: Nov 2004
Posts: 5,962
Likes: 1
From: Cartersville, Ga
^^ for what? ill be using 320 on my old paint. then ill probably use 400-800 between coats. then after the final coat ill use 1000, 1500, 2000
Old 07-07-07 | 12:51 AM
  #59
Chiron's Avatar
A Voice of Truth

Joined: Apr 2007
Posts: 60
Likes: 0
From: Klamath Falls
Hey,

Just about to start on my own. Going to go for Hunter Green all over, maybe with a safety orange stripe. At any rate I was wondering if anyone has used the spray version of the rustoleum protective enamel. I would think that might be easier and cleaner (no mixing).

Any thoughts?
Old 07-07-07 | 12:58 AM
  #60
dbragg's Avatar
Say hello to Mr.Wankel

iTrader: (7)

Joined: Nov 2004
Posts: 5,962
Likes: 1
From: Cartersville, Ga
id say stick with what you know works, rustoleum industrial. if you want to be a pioneer then hop on it!!

ill be starting mine monday. ill post pics of the whole process.
Old 07-08-07 | 09:32 PM
  #61
Rotary_Powerd's Avatar
Senior Member

Joined: Mar 2007
Posts: 438
Likes: 0
From: Boston MA
I'm doing white I'll post pics on the process latter.
Old 07-09-07 | 01:16 AM
  #62
jshiz's Avatar
Actin Like I'm Drunk

iTrader: (4)

Joined: Jul 2007
Posts: 1,663
Likes: 0
From: Charleston, South Carolina
This is pretty nice, I'm gonna have to give this try. Have any of yall finish yet so I can check yall pics? I do it, I'm gonna do a two tune red and black.
Old 07-09-07 | 04:56 PM
  #63
dbragg's Avatar
Say hello to Mr.Wankel

iTrader: (7)

Joined: Nov 2004
Posts: 5,962
Likes: 1
From: Cartersville, Ga
i started sanding my spare fender and headlight cover today. this is my first time doing any kind of body work. so i have a quick question for the more experienced guys, if my paint im painting on top of is good, how much do i need to sand it?

the car is tender blue. im using 320 and 400. i have reached serveral stages when sanding. one, when the blue turns a little darker. i assume at this point ive removed the clear coat. second, i hit white. i assume this is the primer.

my question is, do i need to take the clear off on the whole car or just scuff up the paint/clear with the 320/400?

thanks.
Old 07-09-07 | 05:46 PM
  #64
1stgenNutt's Avatar
Senior Member

iTrader: (3)

Joined: Dec 2006
Posts: 386
Likes: 0
From: flatrock Alabama
pic in the sun
lets see what that bad boy looks like in the sun?
Old 07-09-07 | 06:25 PM
  #65
Rotary_Powerd's Avatar
Senior Member

Joined: Mar 2007
Posts: 438
Likes: 0
From: Boston MA
the idea is to get most of the top layer scratches out 320/400 to start off is perfectly fine.
Old 07-09-07 | 06:34 PM
  #66
dbragg's Avatar
Say hello to Mr.Wankel

iTrader: (7)

Joined: Nov 2004
Posts: 5,962
Likes: 1
From: Cartersville, Ga
so i need to take the clear off?
Old 07-12-07 | 03:54 PM
  #67
kmonto85's Avatar
Full Member

Joined: Jul 2007
Posts: 98
Likes: 0
From: Greenbrier, AR
So for those that were going to paint their own cars, how did it turn out? Any photos to do show and tell?
Old 07-12-07 | 04:01 PM
  #68
dbragg's Avatar
Say hello to Mr.Wankel

iTrader: (7)

Joined: Nov 2004
Posts: 5,962
Likes: 1
From: Cartersville, Ga
ive started mine. im still doing my initial sanding....well i should be outside doing it now. ill post some pics pf the progress tonight.
Old 07-20-07 | 12:24 AM
  #69
dbragg's Avatar
Say hello to Mr.Wankel

iTrader: (7)

Joined: Nov 2004
Posts: 5,962
Likes: 1
From: Cartersville, Ga

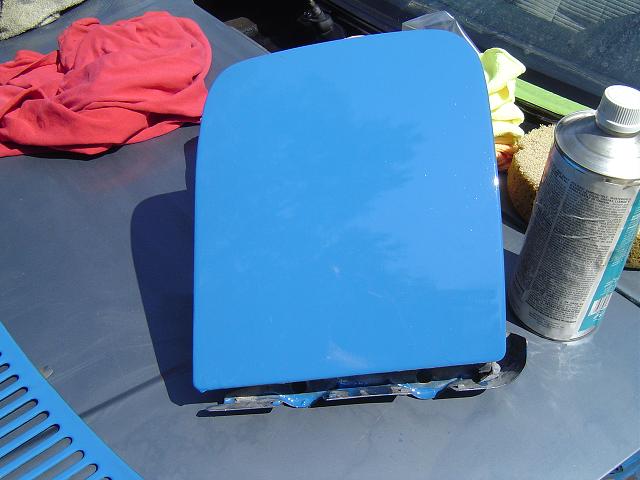

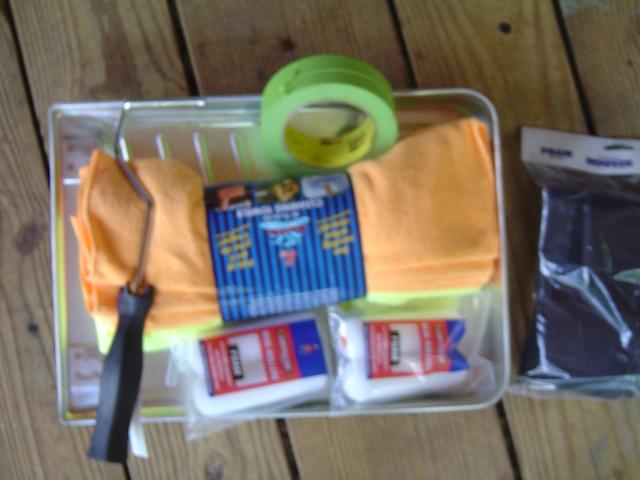

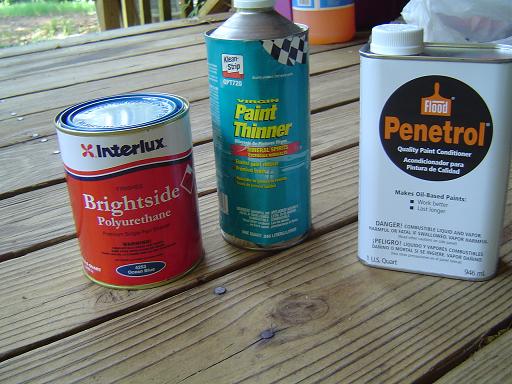

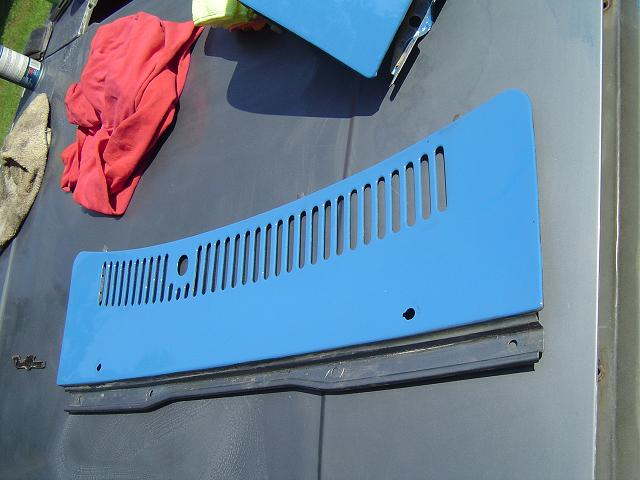

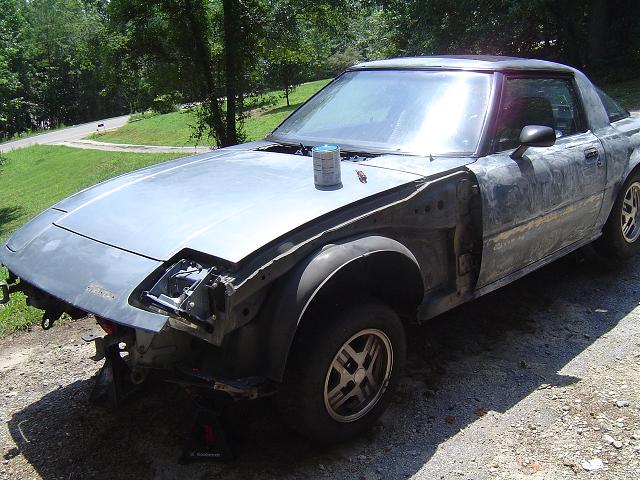

pics
Attached Thumbnails HOW TO: Paint your 7 for less than 0 (56K Beware!)-001.jpg   HOW TO: Paint your 7 for less than 0 (56K Beware!)-004.jpg   HOW TO: Paint your 7 for less than 0 (56K Beware!)-005.jpg   HOW TO: Paint your 7 for less than 0 (56K Beware!)-008.jpg   HOW TO: Paint your 7 for less than 0 (56K Beware!)-009.jpg

Old 07-21-07 | 12:17 AM
  #70
Wanktastic's Avatar
Thread Starter
Full Member


Joined: Sep 2005
Posts: 51
Likes: 0
From: Salem, OR
Thats looking really good dude, I like the color you went with!

You might want to paint the groove in the valence panel that mates up with the hood, because at certain angles you can see through the crack to the original paint. I had to go over several crack areas like this on the fenders and door afterwards because it was pretty apparent.

When sanding, you just need to be sure to eliminate the layer of clear coat, and then keep going until the surface is relatively smooth. To do this, I sanded with around 200 or so grit paper until the paint "dulled", then went a little farther just to be sure. In some areas, this meant going down to a yellowish layer that I think is the old primer. For the best results, I HIGHLY recommend applying a thin layer of body filler over any area that has minor defects. For example, I had some pitting from oxidation that resulted in dimples approximately 1mm in diameter (very small). In retrospect, I wish I had filled these in before painting, because they can still be seen.

The key is to put as much effort in the preparation as possible, and to remember that paint will only augment defects.

Last edited by Wanktastic; 07-21-07 at 12:25 AM.
Old 07-21-07 | 03:41 PM
  #71
dbragg's Avatar
Say hello to Mr.Wankel

iTrader: (7)

Joined: Nov 2004
Posts: 5,962
Likes: 1
From: Cartersville, Ga

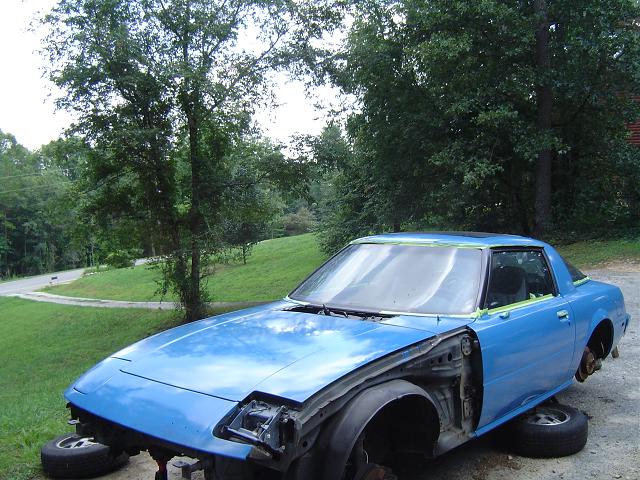

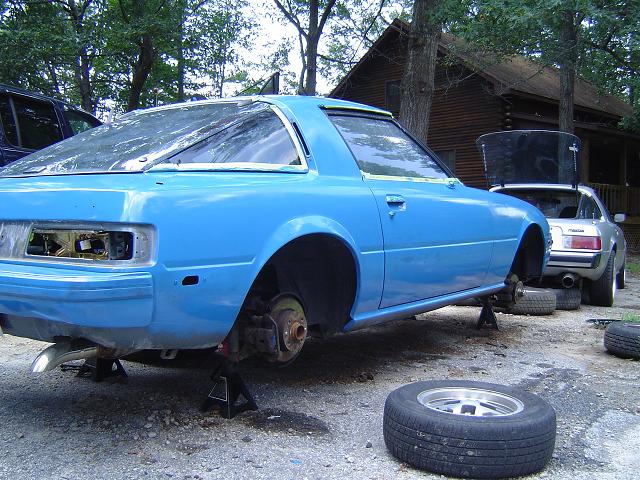

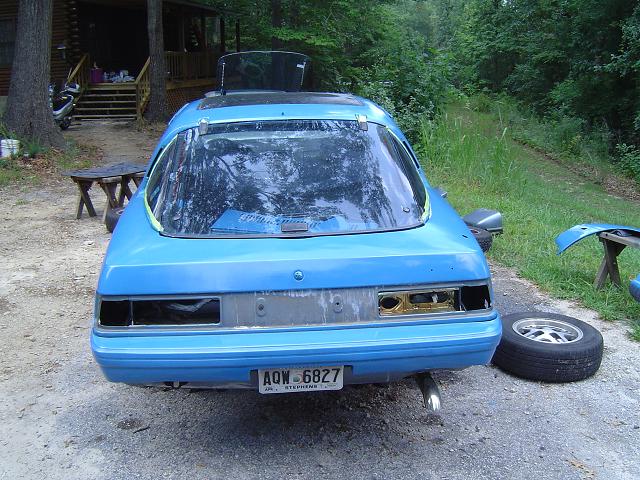

thanks. i love the color too. i think itll look great. i think itd suit a SA body better though. progress pics
Attached Thumbnails HOW TO: Paint your 7 for less than 0 (56K Beware!)-001.jpg   HOW TO: Paint your 7 for less than 0 (56K Beware!)-002.jpg   HOW TO: Paint your 7 for less than 0 (56K Beware!)-003.jpg
Old 07-21-07 | 04:45 PM
  #72
kgray's Avatar
GOT WANKEL?

Joined: Jan 2005
Posts: 1,324
Likes: 1
From: Kansas City, MO
coming along great!
Old 07-21-07 | 06:26 PM
  #73
VPTUNING's Avatar
ALPHA-Q

Joined: Mar 2007
Posts: 176
Likes: 1
From: CALIFORNIA
not to jump off subject but "AWS 140" what kinda fat rim is on your silver 1st gen in the background???? that rim looks sick
Old 07-30-07 | 11:24 AM
  #74
dbragg's Avatar
Say hello to Mr.Wankel

iTrader: (7)

Joined: Nov 2004
Posts: 5,962
Likes: 1
From: Cartersville, Ga

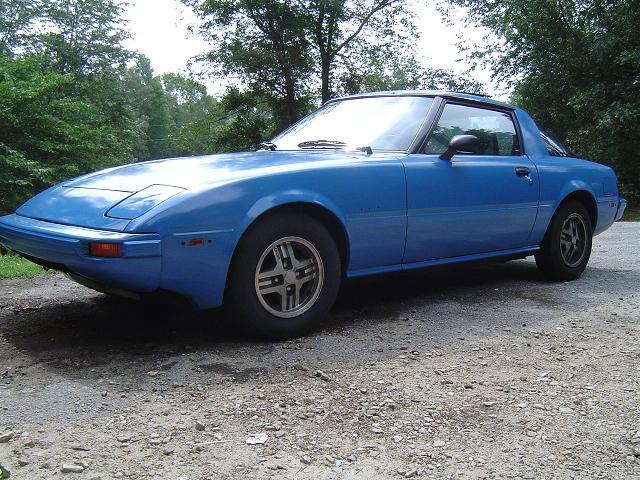

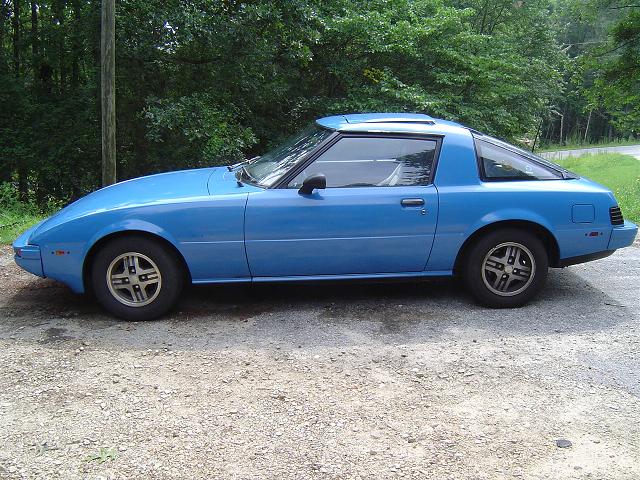

been finished for a few days. i got it all bad together, got her running good, and ive been driving her a lot. i havent been able to drive since the beginning of june. so im making up for it.

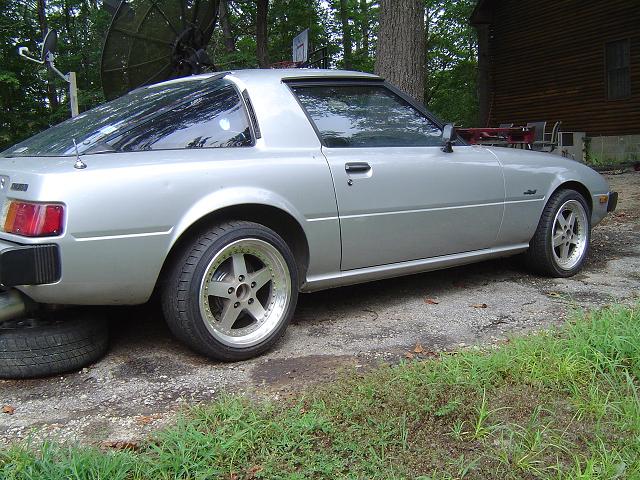

vptuning-- they are 16x7 and 16x8 work wheels. i added a pic of that car just for you. the tires that are on the rear are too small for my liking. i have some bigger ones in my room. i may get them installed this week.
Attached Thumbnails HOW TO: Paint your 7 for less than 0 (56K Beware!)-001.jpg   HOW TO: Paint your 7 for less than 0 (56K Beware!)-002.jpg   HOW TO: Paint your 7 for less than 0 (56K Beware!)-007.jpg
Old 07-30-07 | 08:35 PM
  #75
BARF1's Avatar
Who are you?

Joined: Apr 2004
Posts: 264
Likes: 0
From: a
This is probably already on here somewhere but this guy did it to his corvair. He's got some 8 months later pics posted also, holding up well.

http://www.rickwrench.com/50dollarpaint.html
