High altitude compensator removal

I've found numerous threads saying to remove the HAC. None I've read say how to block the holes left after the removal. I'd just put it back on but neither of the carb kits I bought came with a replacement gasket.

Any help is very much appreciated. Thanks

Reply Like

02-20-11, 02:16 PM

trochoid

Old Fart Young at Heart

iTrader: (6)

Join Date: Apr 2004

Location: St Joe MO

Posts: 15,145

Likes: 0

Received 7 Likes on 7 Posts

Some use J-B Weld, others drive small ball bearings into the holes. Third option is to make a cover plate and gasket if you want the mod reversible.

Reply Like

02-20-11, 03:37 PM

Crispin38

o.O

iTrader: (3)

Join Date: Jan 2010

Location: 64865

Posts: 871

Likes: 1

Received 2 Likes on 2 Posts

I don't see what the point of removing it is, except for simplicity I guess.

Anyways, I just used JB weld.

Reply Like

02-20-11, 04:51 PM

jdmminot

Senior Member

iTrader: (6)

Join Date: Jul 2010

Location: Minot, ND

Posts: 282

Likes: 10

Received 4 Likes on 3 Posts

I just stripped my carb the other day, and used some 1/8" aluminum and a jigsaw with a mild metal blade on it for a block plate. I'll post up pics here in a few hours, it looks good in my opinion. It was super easy to make, and I even got the aluminum for free from a local steel place.

Reply Like

02-20-11, 09:36 PM

jdmminot

Senior Member

iTrader: (6)

Join Date: Jul 2010

Location: Minot, ND

Posts: 282

Likes: 10

Received 4 Likes on 3 Posts

Reply Like

02-20-11, 10:43 PM

Chevsica

Full Member

Join Date: Sep 2010

Location: Perkins, Ok

Posts: 88

Likes: 0

Received 0 Likes on 0 Posts

Anybody else unable to see the pictures?

Reply Like

02-21-11, 12:41 AM

Stevan

Rotary Enthusiast

iTrader: (17)

Join Date: Sep 2003

Location: Jax, FL.

Posts: 1,041

Likes: 0

Received 1 Like on 1 Post

Quote:

Originally Posted by Chevsica

Anybody else unable to see the pictures?

No, but try these.
I always use plates too, JB weld shrinks in contact with certain chemicals, even antifreeze.

Attached Thumbnails

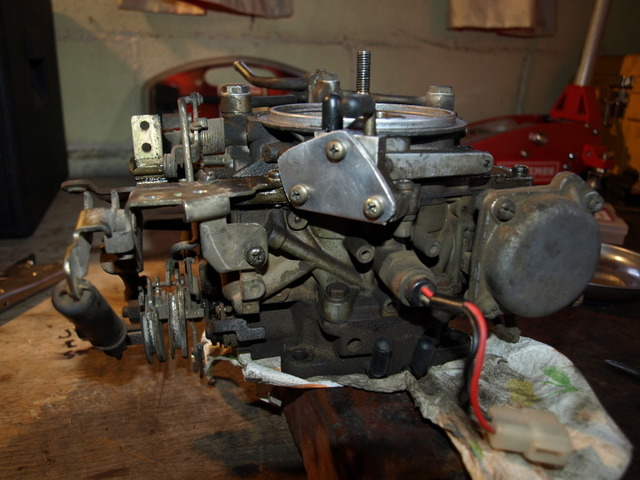

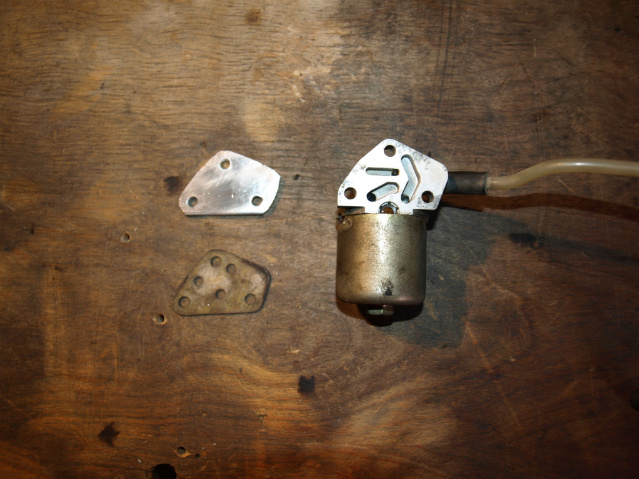

High altitude compensator removal-p2186318.jpg

High altitude compensator removal-p2186319.jpg

Reply Like

Trending Topics

Hatch Carpet Gap Driving Me Crazy

26

581
Odometer turns off when i turn on headlights..?

7

210
FD drop spindles/uprights

49

2.4k
A Series of Less Than Logical Choices: An S4 Build Thread

520

43.9k
advice on EWP (Electric water pump) setup

5

190

02-23-11, 06:56 PM

Crispin38

o.O

iTrader: (3)

Join Date: Jan 2010

Location: 64865

Posts: 871

Likes: 1

Received 2 Likes on 2 Posts

Quote:

Originally Posted by Stevan

No, but try these.
I always use plates too, JB weld shrinks in contact with certain chemicals, even antifreeze.

Nice, now hit that carby with some choke/carb cleaner.

Reply Like

02-23-11, 07:00 PM

Jibaro 12A

searching...

iTrader: (8)

Join Date: Dec 2009

Location: Chicago

Posts: 1,022

Likes: 0

Received 1 Like on 1 Post

Quote:

Originally Posted by Crispin38

Nice, now hit that carby with some choke/carb cleaner.

Funny I was thinking the same thing.

Reply Like

02-23-11, 07:05 PM

#10

jdmminot

Senior Member

iTrader: (6)

Join Date: Jul 2010

Location: Minot, ND

Posts: 282

Likes: 10

Received 4 Likes on 3 Posts

Quote:

Originally Posted by Jibaro 12A

Funny I was thinking the same thing.

Don't worry, immediately after taking these pics, i tore my nikki down and rebuilt it! Pic in one second... so I'm not ashamed of that hideous carb above!

Reply Like

02-23-11, 07:07 PM

#11

Jibaro 12A

searching...

iTrader: (8)

Join Date: Dec 2009

Location: Chicago

Posts: 1,022

Likes: 0

Received 1 Like on 1 Post

Good stuff man. Im going to attempt to polish one of my Nikkis up. We'll see how it turns out.

Reply Like

02-23-11, 07:21 PM

#12

jdmminot

Senior Member

iTrader: (6)

Join Date: Jul 2010

Location: Minot, ND

Posts: 282

Likes: 10

Received 4 Likes on 3 Posts

Proof! (much better then before at least....)

I've never rebuilt any carb before, and I must say I had a ton of fun rebuilding this one. Enjoy!

Reply Like

02-23-11, 10:36 PM

#13

Stevan

Rotary Enthusiast

iTrader: (17)

Join Date: Sep 2003

Location: Jax, FL.

Posts: 1,041

Likes: 0

Received 1 Like on 1 Post

Just to avoid any misconception of my carb cleanliness, the photos I posted were the ones jdmminot posted that Chevsica could not see.

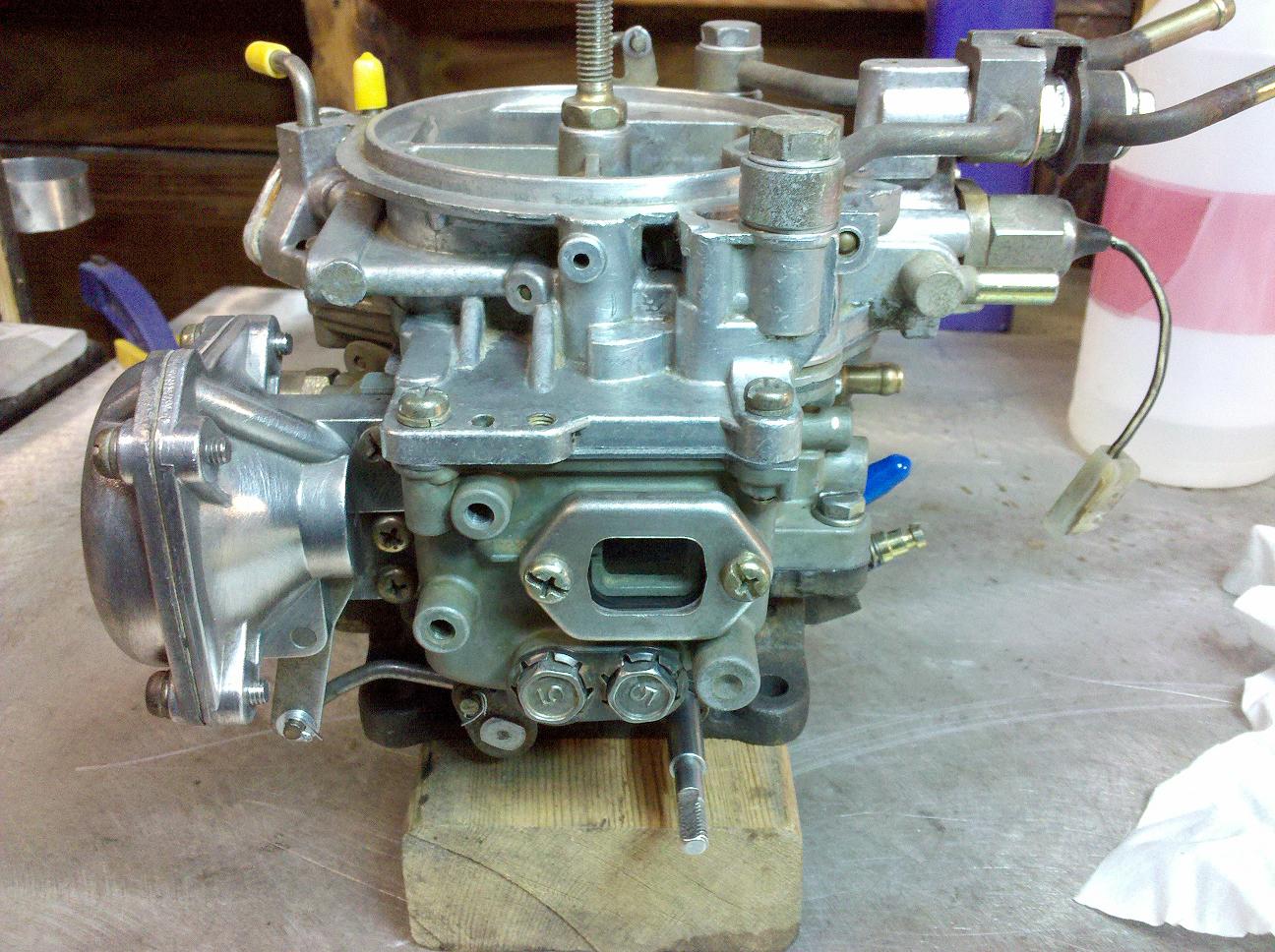

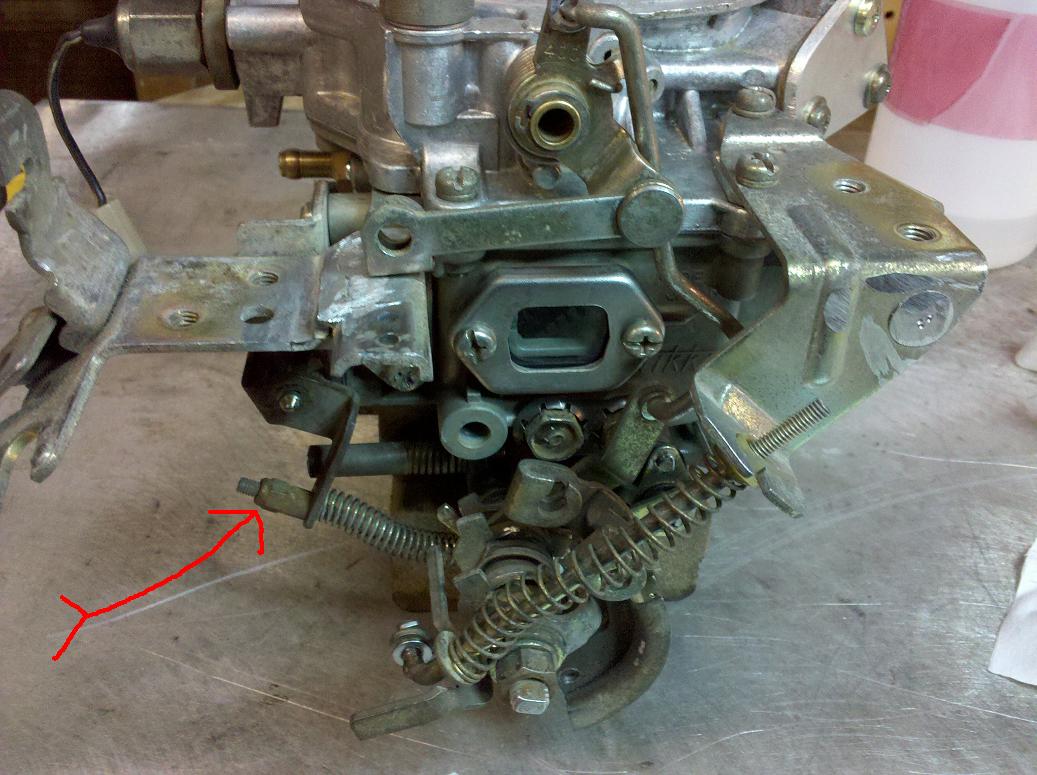

Here is my carb after rebuild a few months ago.
My engine, that's another story...

Attached Thumbnails

High altitude compensator removal-2010-03-01-22.42.54.jpg

High altitude compensator removal-2010-03-01-22.41.47.jpg

Reply Like

02-24-11, 07:29 AM

#14

Crispin38

o.O

iTrader: (3)

Join Date: Jan 2010

Location: 64865

Posts: 871

Likes: 1

Received 2 Likes on 2 Posts

Quote:

Originally Posted by Jibaro 12A

Good stuff man. Im going to attempt to polish one of my Nikkis up. We'll see how it turns out.

Just yesterday I took the top off my 76 12A Nikki and did a lot of trick stuff(I've actually been working on it for a month now and put it on yesterday.) Including polishing it in and out.
Went on my 85 Nikki, definetly adds a nice touch being spit shined and all.
