NY Help me check my spark plugs?

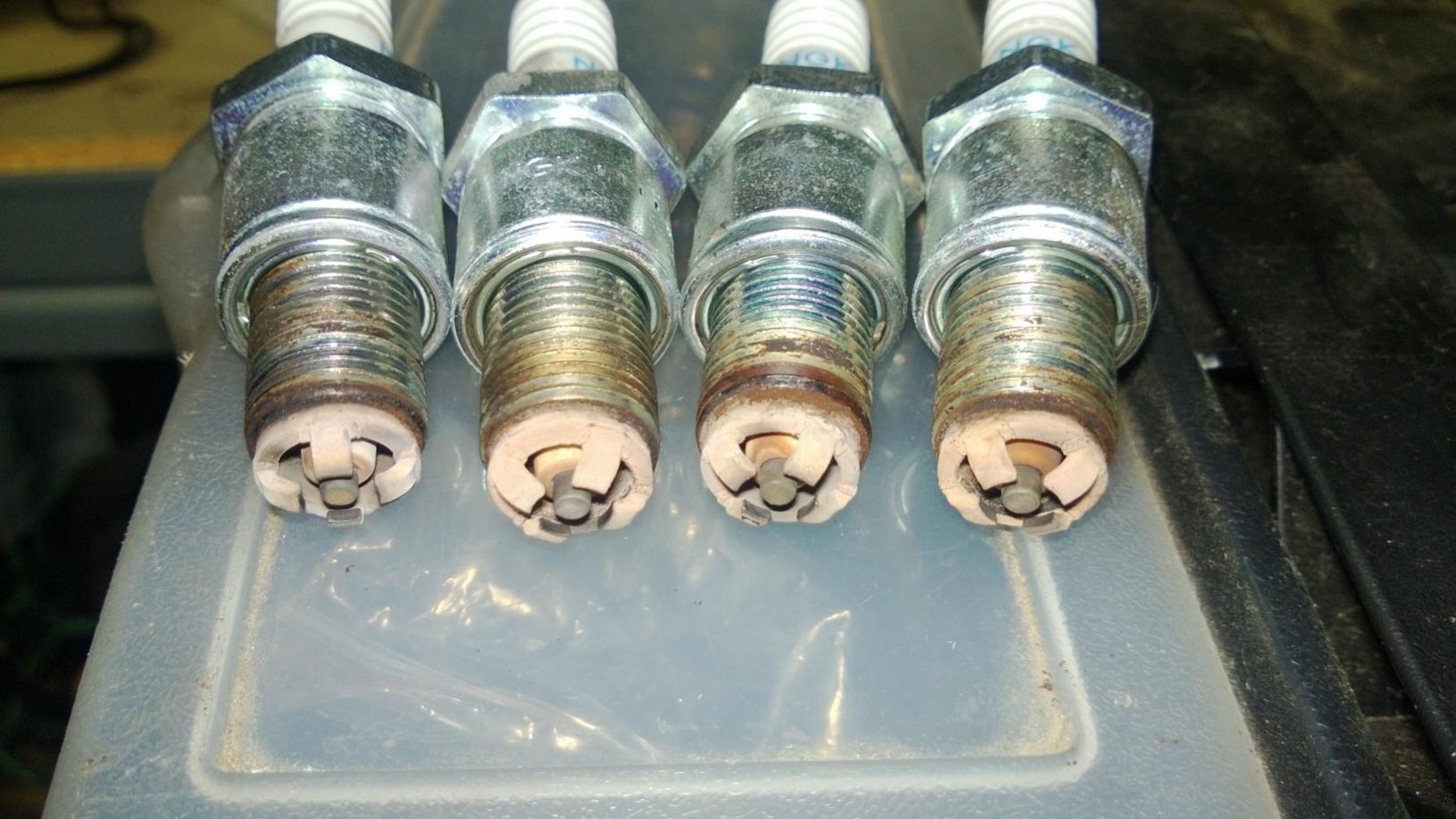

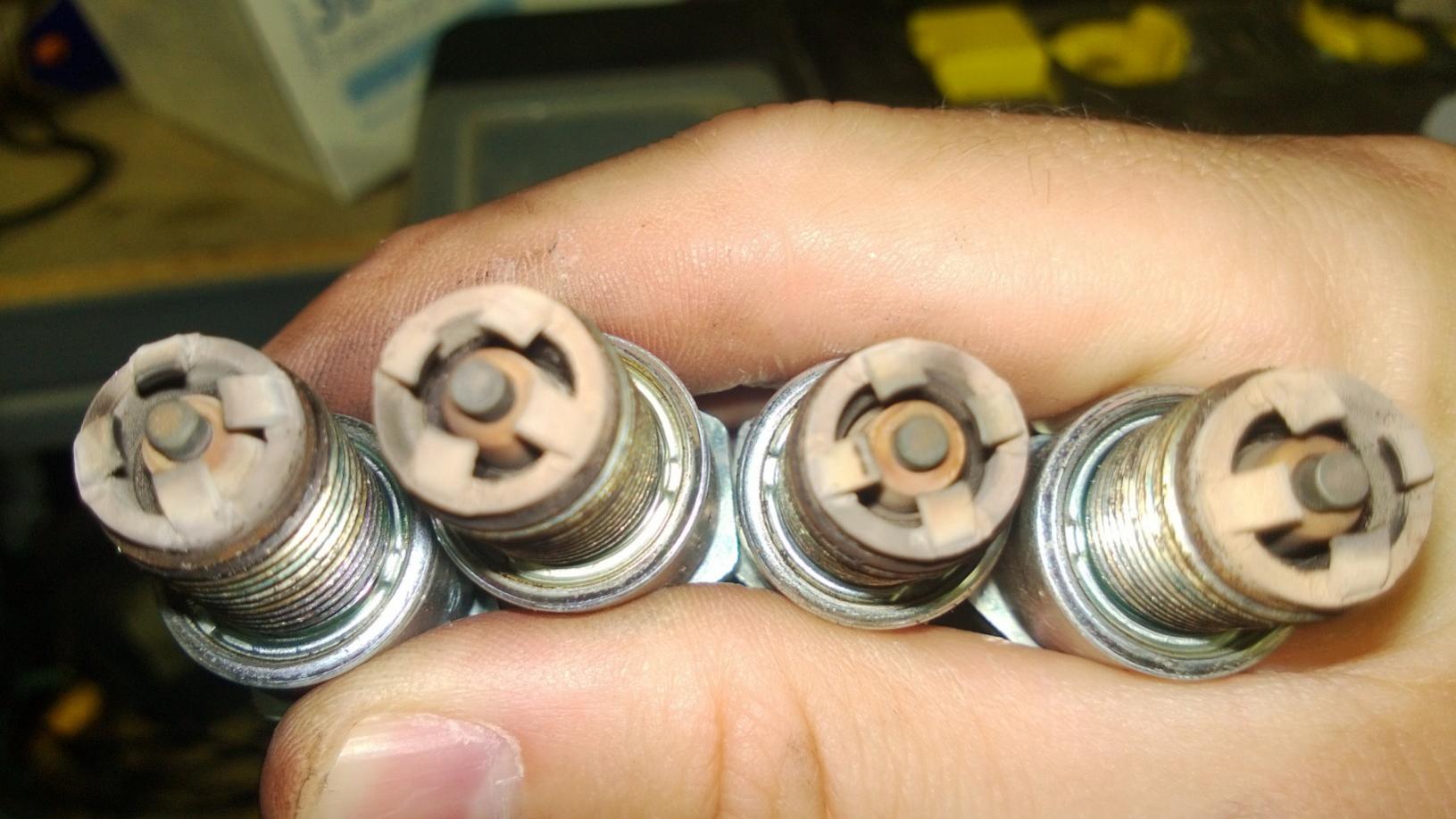

So I decided it was probably time to change the spark plugs tonight. Been idling a little rough lately and it seems to hesitate from time to time when I mash the throttle. These plugs that I took out have probably been in the car about 2 years (maybe 3, can't really remember). Anyway, I've never been good at reading the plugs to determine if things are running well or if it's running rich/lean, so I thought I'd ask everyone for help. Thanks!
Attached Thumbnails Help me check my spark plugs?-wp_20130628_001.jpg   Help me check my spark plugs?-wp_20130628_002.jpg
Old 06-28-13, 05:35 PM
  #2
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,989
Received 2,688 Likes on 1,903 Posts
those actually look worn, but otherwise really good.

when looking at the plugs you're looking at the color of the porcelain inside, you want it to be a nice brown color, like yours are. white = lean, black is rich.
Old 07-02-13, 08:39 AM
  #3
Waffles - hmmm good

iTrader: (1)

t_g_farrell's Avatar

Join Date: Jul 2004
Location: Lake Wylie, N.C.
Posts: 8,785
Received 286 Likes on 236 Posts
I would call those a little lean but otherwise good.
Old 07-02-13, 10:20 AM
  #4
Lapping = Fapping

iTrader: (13)

Jeff20B's Avatar

Join Date: Aug 2001
Location: Near Seattle
Posts: 15,725
Received 83 Likes on 76 Posts
I'd reuse 'em! After a quick cleaning of course.
Old 07-02-13, 11:08 AM
  #5
RX HVN

iTrader: (2)

7aull's Avatar

Join Date: Jan 2003
Location: Arizona
Posts: 3,889
Received 228 Likes on 168 Posts
when was the last time you swapped in a new fuel filter? Mine needs it yearly...
cheap $4 investment


Stu Aull
80GS Alaska
Old 07-20-13, 07:37 AM
  #6
Full Member

davlilly's Avatar

Join Date: Jul 2013
Location: Ayase, Japan
Posts: 78
Likes: 0
Received 0 Likes on 0 Posts
So.... what spark plugs and fuel filter (mostly stock sequential with exhaust and intake)? Where would you buy them?

Thank you,
David
Old 07-20-13, 02:11 PM
  #7
acdelco d1906 Nkg 49034


midnight mechanic's Avatar

Join Date: Aug 2012
Location: huntsville
Posts: 1,114
Received 75 Likes on 64 Posts
fuel filters? who cares

spark plugs? NKG's all the way............autolites are good if and only if you are trying to get a rebuilt engine to run. Switch to NKG's when you verify that you got a spark.

Or simply, go with NKG's they are readily available at autozone, o reily's , advance auto, or whatever
Old 07-20-13, 05:42 PM
  #8
Full Member

davlilly's Avatar

Join Date: Jul 2013
Location: Ayase, Japan
Posts: 78
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by midnight mechanic
fuel filters? who cares

spark plugs? NKG's all the way............autolites are good if and only if you are trying to get a rebuilt engine to run. Switch to NKG's when you verify that you got a spark.

Or simply, go with NKG's they are readily available at autozone, o reily's , advance auto, or whatever
Sounds good, One more question about the NKG's.... I saw people talking about heat 7 or 9? Or something to that affect. What is this and how is it important for a stock motor? Is it the heat produced by the spark?

Thank you very much, midnight mechanic!

-David
Old 07-20-13, 07:39 PM
  #9
Full Member

davlilly's Avatar

Join Date: Jul 2013
Location: Ayase, Japan
Posts: 78
Likes: 0
Received 0 Likes on 0 Posts
Disregard, I found a ton of info on it already. Thanks!
Old 07-22-13, 10:58 AM
  #10
Full Member


SteveNC's Avatar

Join Date: May 2010
Location: Charlotte, NC
Posts: 101
Received 5 Likes on 3 Posts
ND or NGK 4 prong plugs all the way, rockauto has both. Get the $4-5/ea plug. Don't bother with the cheapie two prong/conductor plugs from other vendors. There is also a $27/ea iridium plug from ND; I can't possibly see how it could be worth the extra money as iridium plugs in 2 & 4 strokes have never been worth the money.
Old 07-22-13, 01:46 PM
  #11
1st-Class Engine Janitor

iTrader: (15)

DivinDriver's Avatar

Join Date: Jun 2008
Location: Chino Hills, CA
Posts: 8,376
Received 26 Likes on 24 Posts
Those plugs look like your oil-control is still excellent, and you're definitely not running too rich.
Old 07-23-13, 07:55 PM
  #12
Full Member

davlilly's Avatar

Join Date: Jul 2013
Location: Ayase, Japan
Posts: 78
Likes: 0
Received 0 Likes on 0 Posts
Thanks guys, I went to order the plugs and no ones wants to ship them to my military address overseas so I am gonna go to Autobacs (Japanese autozone) and see if I can find a good alternative here. I gotta learn more Japanese!

-David
Old 07-24-13, 11:31 AM
  #13
1st-Class Engine Janitor

iTrader: (15)

DivinDriver's Avatar

Join Date: Jun 2008
Location: Chino Hills, CA
Posts: 8,376
Received 26 Likes on 24 Posts
The proper plugs are made in Japan, so you should be able to get exact application parts - no need to substitute.
