heater core ?

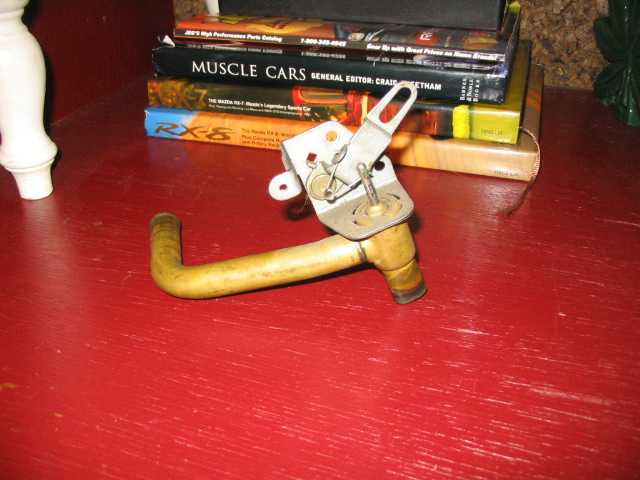

Is this the check valve ?
![](https://www.rx7club.com/attachments/1st-generation-specific-1979-1985-18/147629-heater-core-img_0006.jpg)
I have a leak coming from some were. I change out the heater core and i'm still getting water on the floor. Im sure I have all the hoses tite. Someone told to check the check valve.
Thats were it might be leaking from. Is this somthing I can order new ?
this is in the codeblue car 79 SA
![](https://www.rx7club.com/attachments/1st-generation-specific-1979-1985-18/147629-heater-core-img_0006.jpg)
I have a leak coming from some were. I change out the heater core and i'm still getting water on the floor. Im sure I have all the hoses tite. Someone told to check the check valve.
Thats were it might be leaking from. Is this somthing I can order new ?
this is in the codeblue car 79 SA
#3
Without looking at the FSM, I would say yes. I have found that if the heater core tubes that protrude through the firewall are not perfectly round, they can leak and run into the passenger compartment. The tube ends are very easy to bend when removing and replacing the core. I had this problem with my 2nd gen, even changed out the heater core thinking it was bad, same problem after the switch.
If you look at the short leg of your valve, you can see that it is out of round. To get them round again, I look for something that is round and tapered and gently tap it into the tube to bring it back to being round. Be very careful doing this as the tube can split easily. Once you get it as round as you can, double clamp the hose, reversing one clamp to the other. This will draw the tube to a near perfect circle and seal better.
If you look at the short leg of your valve, you can see that it is out of round. To get them round again, I look for something that is round and tapered and gently tap it into the tube to bring it back to being round. Be very careful doing this as the tube can split easily. Once you get it as round as you can, double clamp the hose, reversing one clamp to the other. This will draw the tube to a near perfect circle and seal better.
#4
Post Pimp
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
iTrader: (1)
Join Date: May 2003
Location: Spokane valley, Washington
Posts: 2,800
Likes: 0
Received 0 Likes
on
0 Posts
the one in the picture, is not round. thats because i pulled it out of a old one that i had.
when these go bad they must leak from the top ?
were's DAN ATKINS when you need him.
DAN, are you there.............hello Dan......
when these go bad they must leak from the top ?
were's DAN ATKINS when you need him.
DAN, are you there.............hello Dan......
#5
no clever remarks...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Dec 2004
Location: WA State
Posts: 778
Likes: 0
Received 0 Likes
on
0 Posts
Poor Blue has something other than drool leaking onto her floor? Soory to hear it. My heater core tubes are all bent up... Guess I am lucky... I bet mine will start leaking now! LOL!
#6
84SE-EGI helpy-helperton
![](/images/misc/20_year_icon.png)
That's it.
What happens when these go bad is that the pushrod assembly that's attached to that pivot arm, will allow coolant to seep past the rubber O-ring assembly down inside that piston. When this happens, the coolant is able to gush out the top of that piston and past the 'grill' that you see that the pushrod goes down into.
Replacement of the valve is a PITA, but that will most likely fix your coolant loss problem. HTH,
What happens when these go bad is that the pushrod assembly that's attached to that pivot arm, will allow coolant to seep past the rubber O-ring assembly down inside that piston. When this happens, the coolant is able to gush out the top of that piston and past the 'grill' that you see that the pushrod goes down into.
Replacement of the valve is a PITA, but that will most likely fix your coolant loss problem. HTH,
