Has anyone installed a push button ignition?
#1
7-less
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Dec 2005
Location: No. Virginia, USA
Posts: 2,053
Likes: 0
Received 0 Likes
on
0 Posts
Has anyone installed a push button ignition?
Hey all,
Has anyone ever installed a push button ignition kit into their Rex? I'm thinking of doing it, and wiring is my specialty, but if anyone has, exactly what does the wiring instructions entail? I've tried various websites that sell the products, but their .pdf instructions weren't very clear and detailed. Just general. :P
Has anyone ever installed a push button ignition kit into their Rex? I'm thinking of doing it, and wiring is my specialty, but if anyone has, exactly what does the wiring instructions entail? I've tried various websites that sell the products, but their .pdf instructions weren't very clear and detailed. Just general. :P
#2
WWW.SUPERCHARGED-RX7.COM
![](https://www.rx7club.com/images/misc/05_year_icon.png)
I've never installed one, but isn't it just a momentary type switch that gets hooked up to the cranking wire. So I guess with a test light or meter look for the wire that shows voltage when engine is cranking from the ignition switch and hook that up to the new switch.
I was thinking of doing my own with one of these switches.
Or get one from an s2000 cause I don't like the ignited ones.
I was thinking of doing my own with one of these switches.
Or get one from an s2000 cause I don't like the ignited ones.
#3
7-less
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Dec 2005
Location: No. Virginia, USA
Posts: 2,053
Likes: 0
Received 0 Likes
on
0 Posts
Actually all the websites I went to showcase the Ignited Performance Original Push Button Ignition kit, the same one that's found in the S2000. I saw it, and liked it. They had the general instructions, so I knew of the idea of power, ground, power for the lighted up button, etc, but it was very general in what to hook it up to. I guess that's the best one could get, but I figured if someone DID do it, then they'd know exactly what gauge wire is to be connected to what. Save me a lot of guess work.
![Wink](https://www.rx7club.com/images/smilies/wink.gif)
#4
autobody guru
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Dec 2005
Location: Dryden, Ontario
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Kim's FB
I've never installed one, but isn't it just a momentary type switch that gets hooked up to the cranking wire. So I guess with a test light or meter look for the wire that shows voltage when engine is cranking from the ignition switch and hook that up to the new switch.
I was thinking of doing my own with one of these switches.
Or get one from an s2000 cause I don't like the ignited ones.
I was thinking of doing my own with one of these switches.
Or get one from an s2000 cause I don't like the ignited ones.
U got it
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
I cant say i have done in in a 7 but i put one in my Dad's truck. he got some pissed off cause he was afraid it would make it too easy to steal. thats besides the point though.
The first gen rx-7 have some really shitty wiring. find a decent wiring diagram and track down all the wires u need. I just so happen to have some pics of the wires u need to find. ill post in a sec. i need to find my camera cable.
#5
7-less
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Dec 2005
Location: No. Virginia, USA
Posts: 2,053
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by rotaries_only
U got it![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
I cant say i have done in in a 7 but i put one in my Dad's truck. he got some pissed off cause he was afraid it would make it too easy to steal. thats besides the point though.
The first gen rx-7 have some really shitty wiring. find a decent wiring diagram and track down all the wires u need. I just so happen to have some pics of the wires u need to find. ill post in a sec. i need to find my camera cable.
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
I cant say i have done in in a 7 but i put one in my Dad's truck. he got some pissed off cause he was afraid it would make it too easy to steal. thats besides the point though.
The first gen rx-7 have some really shitty wiring. find a decent wiring diagram and track down all the wires u need. I just so happen to have some pics of the wires u need to find. ill post in a sec. i need to find my camera cable.
Well the kit boasts that you need the key to start it, but I was also planning on sticking in a Kill Switch, hidden of course, to keep it from being able to move. Also, I've seen some of the shitty wiring located in the steering column. Looks a lot neater than my old truck. Plus, as I've said, wiring's my specialty so I love a challenge. ^^ I have the Haynes manual with the wiring diagram but I'll always except more photos.
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
#6
autobody guru
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Dec 2005
Location: Dryden, Ontario
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts
Well i have no idea which one does what... but in assuming u could get a multi meter on there and figure out real quick.
Blue wire is probably the one u want. There is also the black wires with the white and yellow stripes. There is a red and black probably just positive and negative that are always on. There is also the wire that cause the buzzing when ever the key is left in. lol u gotta sort it out.

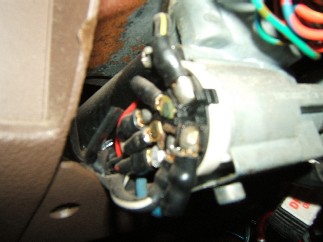

Thought the pics might give u an idea of what ur up against![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
u may even want to rewire parts of your ignition circiut seeing as ur a wiring guru.
Blue wire is probably the one u want. There is also the black wires with the white and yellow stripes. There is a red and black probably just positive and negative that are always on. There is also the wire that cause the buzzing when ever the key is left in. lol u gotta sort it out.
Thought the pics might give u an idea of what ur up against
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
u may even want to rewire parts of your ignition circiut seeing as ur a wiring guru.
#7
autobody guru
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Dec 2005
Location: Dryden, Ontario
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts
Sorry for the double post but isnt the whole point of a button ignition to make it keyless? lol
Kill switch is a great idea. hide it somewhere so that u have to turn it on before u can start the car.
The wiring for the ignition is in pretty plain view. once thw cover it off.
attack it with your mulimeter
Kill switch is a great idea. hide it somewhere so that u have to turn it on before u can start the car.
The wiring for the ignition is in pretty plain view. once thw cover it off.
attack it with your mulimeter
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
