ground circuit
#1
Full Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Nov 2006
Location: LA, California
Posts: 71
Likes: 0
Received 0 Likes
on
0 Posts
ground circuit
i'm trying to find the ground circuit above the driverside foot panel. somewhere near the steering column. does anyone have any pictures of this particular ground circuit?? i have a feeling this has something to do with my drain and low voltage while driving
#2
Go Hawks!
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
My car is gutted right now, so I should be able to find what you're looking for . If you don't get any good responses by the weekend, I'll try to remember to get pictures.
Rich
Rich
#4
Go Hawks!
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Rich
#5
Full Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Nov 2006
Location: LA, California
Posts: 71
Likes: 0
Received 0 Likes
on
0 Posts
to be honest with you guys. i can't find this imparticular ground ciruit. thats the reason why i needed a picture. i hve no clue where its suppose to be. i'm thinking this is why i have a short and low voltage while driving
#6
Go Hawks!
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts

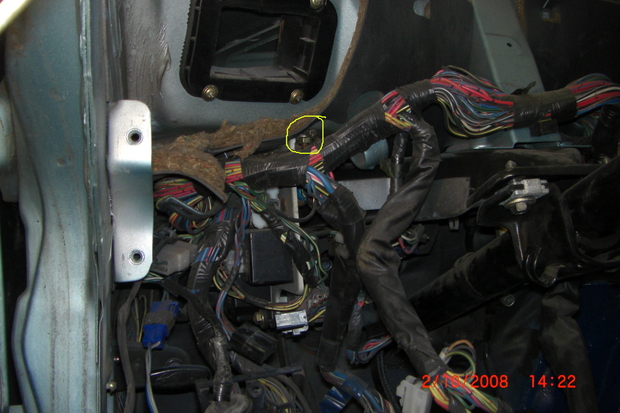

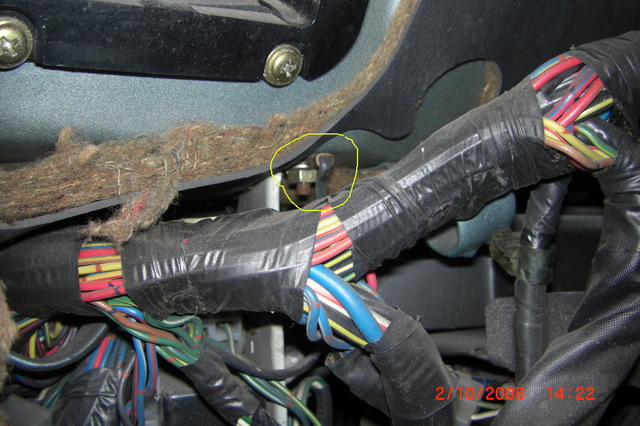

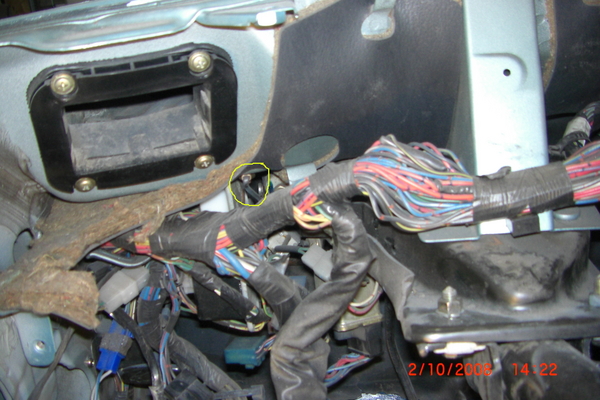

Hi 13BstreetportFB - I've attached a few pictures of the ground I found up above the steering column. Based on what I can see, and based on what the wiring diagram shows, I believe this is the only factory ground point in this area. I hope this helps.
Rich
Rich
