Garret T04 Turbo
#2
FB+FC=F-ME
Sure,great street turbo for a rotary.
I run a TO4B on my 13BT.
But thats a VERY broad question......
What trim,what style,what A/R,what inlet?..........there are a million different TO4 turbo variations out there and each one of them will behave differently.Not all are suitible for a given engine.
I run a TO4B on my 13BT.
But thats a VERY broad question......
What trim,what style,what A/R,what inlet?..........there are a million different TO4 turbo variations out there and each one of them will behave differently.Not all are suitible for a given engine.
#4
Wheel Revolutionist!
Thread Starter
yes i found one on ebay that is for good price i wanted to know if it would be a good application for my 12a here is what it says
This auction is for a Garrett T4 turbocharger. The A/R on the compressor side is .42. The exhaust inlet has the standard 4 bolt T04 flange as seen on most all T04 turbo manifolds and the outlet is a 4 bolt. This turbo would be great for any individual looking to produce a lot of power. This turbo is commonly installed on four and six cylinder motors as seen in Honda, Acura, Volkswagen, Dodge, Nissan, Ford, etc. Also installed on many eight cylinders as part of a single or twin turbo setup. These turbos sell for over $1500 from a Garrett dealer!!!
any good?
This auction is for a Garrett T4 turbocharger. The A/R on the compressor side is .42. The exhaust inlet has the standard 4 bolt T04 flange as seen on most all T04 turbo manifolds and the outlet is a 4 bolt. This turbo would be great for any individual looking to produce a lot of power. This turbo is commonly installed on four and six cylinder motors as seen in Honda, Acura, Volkswagen, Dodge, Nissan, Ford, etc. Also installed on many eight cylinders as part of a single or twin turbo setup. These turbos sell for over $1500 from a Garrett dealer!!!
any good?
Last edited by Eriks85Rx7; 12-17-05 at 12:20 AM.
#7
FB+FC=F-ME
My buddy has that turbo on his bored/built 2.0L B18C1.The turbo is currently maxed out at 13psi,its holding back an engine built to laugh at 25psi and deliver 800HP if he got the right setup feeding it.
Yea,dont underestimate a rotaries thirst for air,even a little 1.1L 12A N/A eats as much air as a 2.3L N/A piston engine.
90% of the turbos for sale out there are woefully small, compared to what a rotary needs.
One of the best,availible and feasible turbo upgrades for a 12A or 13B is the stock T18 from the 89-91 TII.Its already designed to feed and bolt to a rotary.Only a little work is required to fit it to a 12A.On a 13B its good to about 12-13psi without getting overworked.On the smaller 12A,itd probably be happy up to 14psi,without exceeding its performance range.
They are cheap and can easily be upgraded to a TO4 type compressor if you want more boost or heavy porting.The S5 dual wastegate and split runner exhaust manifold are also both well designed and capable of controlling 14psi of boost safely with a good electronic controller.
Stay clear of the S4 turbos however.They have a very small wastegate and poorly designed manifold.They are OK for a stock setup or very mild turbo conversion,but the availibility and improvements of the S5 turbo makes it a far better choice.
Yea,dont underestimate a rotaries thirst for air,even a little 1.1L 12A N/A eats as much air as a 2.3L N/A piston engine.
90% of the turbos for sale out there are woefully small, compared to what a rotary needs.
One of the best,availible and feasible turbo upgrades for a 12A or 13B is the stock T18 from the 89-91 TII.Its already designed to feed and bolt to a rotary.Only a little work is required to fit it to a 12A.On a 13B its good to about 12-13psi without getting overworked.On the smaller 12A,itd probably be happy up to 14psi,without exceeding its performance range.
They are cheap and can easily be upgraded to a TO4 type compressor if you want more boost or heavy porting.The S5 dual wastegate and split runner exhaust manifold are also both well designed and capable of controlling 14psi of boost safely with a good electronic controller.
Stay clear of the S4 turbos however.They have a very small wastegate and poorly designed manifold.They are OK for a stock setup or very mild turbo conversion,but the availibility and improvements of the S5 turbo makes it a far better choice.
Last edited by steve84GS TII; 12-17-05 at 12:42 AM.
Trending Topics
#14
FB+FC=F-ME
Originally Posted by Eriks85Rx7
so is the garret good yes or no if not where can i get a tii turbo?
Turbos have personallity,just like engines.The way you setup a turbo when you build it,will determine its performance characteristics.
Simply asking if a Garret TO4 turbo is a good choice isnt enough.
Yes,Garret is a good company and yes the TO4 family of turbo is a good rotary turbo,but there are tons of variables(trim,A/R,inlets,bearings,ect) that determine if a specific TO4 turbo is good for your engine setup and your expected driving habits.
You have to know all those things first,before buying a specific turbo of any size,shape or family.
#15
FB+FC=F-ME
Originally Posted by Eriks85Rx7
the reason im so ancy about gettin it answered is cause the auction ends soon and it includes an intercooler!
Thats why its best to leave turbo selection to a pro,or select a turbo as part of a kit which is designed for your specific ride.That way you know your getting something you want....nothing worse than buying an Ebay turbo that runs out of huff at 5000rpms......or one that doesnt even boost until 4000rpms.......
#16
Wheel Revolutionist!
Thread Starter
http://cgi.ebay.com/ebaymotors/ws/eB...RK%3AMEWA%3AIT
here is the link.. I want a turbo that will keep me going till atleast 6k I would rather have too small of turbo than too big. sounds stupid yes. I am only trying to reach 200hp im not trying to make a monster. Just a fun quick Daily Driver.
here is the link.. I want a turbo that will keep me going till atleast 6k I would rather have too small of turbo than too big. sounds stupid yes. I am only trying to reach 200hp im not trying to make a monster. Just a fun quick Daily Driver.
#17
buzzzzz!-ook!-buzzzzz!
Join Date: Apr 2005
Location: Toronto/Can.
Posts: 354
Likes: 0
Received 0 Likes
on
0 Posts
bah.. buy the turbo, and set it up..
thats a semi-standard flange, so if your setup is too slow or wonky or whatever, you can upgrade easy, and hock off the turbo you bought on ebay, baddabingbaddaboom, free intercooler!
thats a semi-standard flange, so if your setup is too slow or wonky or whatever, you can upgrade easy, and hock off the turbo you bought on ebay, baddabingbaddaboom, free intercooler!
#18
FB+FC=F-ME
Looks like a scam to me!!
225 views,no bids and $199 buy it now!!!!.....pass, thats really fishy.
Plus that turbo is WAY to small and the intercooler looks like a factory job,very dinky core.
Looked a little closer,its a stock Volvo turbo and IC.Looks like he hit it with some chrome spray paint too,who knows how many miles are on the thing......
225 views,no bids and $199 buy it now!!!!.....pass, thats really fishy.
Plus that turbo is WAY to small and the intercooler looks like a factory job,very dinky core.
Looked a little closer,its a stock Volvo turbo and IC.Looks like he hit it with some chrome spray paint too,who knows how many miles are on the thing......
Last edited by steve84GS TII; 12-17-05 at 02:25 AM.
#24
Banned. I got OWNED!!!
Join Date: Dec 2002
Location: wishing i was back in FL
Posts: 4,192
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by perfect_circle
FB II did you go holley, an not tell us?
sorry for the threadjacking
sorry for the threadjacking
shhhhh!!!! i'll let out the details when i have some videos from tonite
#25
Junior Member
Join Date: Jul 2004
Location: melbourne, australia
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Eriks85Rx7
http://cgi.ebay.com/ebaymotors/ws/eB...RK%3AMEWA%3AIT
here is the link.. I want a turbo that will keep me going till atleast 6k I would rather have too small of turbo than too big. sounds stupid yes. I am only trying to reach 200hp im not trying to make a monster. Just a fun quick Daily Driver.
here is the link.. I want a turbo that will keep me going till atleast 6k I would rather have too small of turbo than too big. sounds stupid yes. I am only trying to reach 200hp im not trying to make a monster. Just a fun quick Daily Driver.
Garrett A/R .42 on intake, A/R .48 on exhaust side .
both intake and exhaust A/R`S are too small and it would be a waste of money and time. but hey its your $$$$

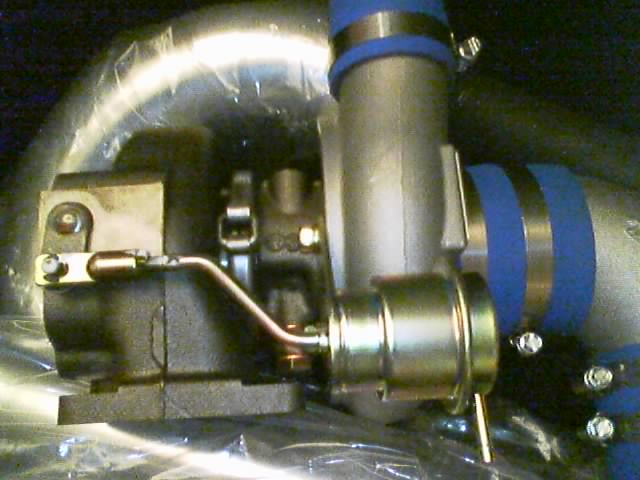

heres my to4e/66 , 1.32 exhaust housing
