Fusible Link Help?!

Reply Subscribe

Thread Tools

Search this Thread

12-21-03 | 06:35 PM

#26

Rex4Life

RX-7 Alumni

Joined: Oct 2002

Posts: 1,140

Likes: 1

From: Spacecenter Houston

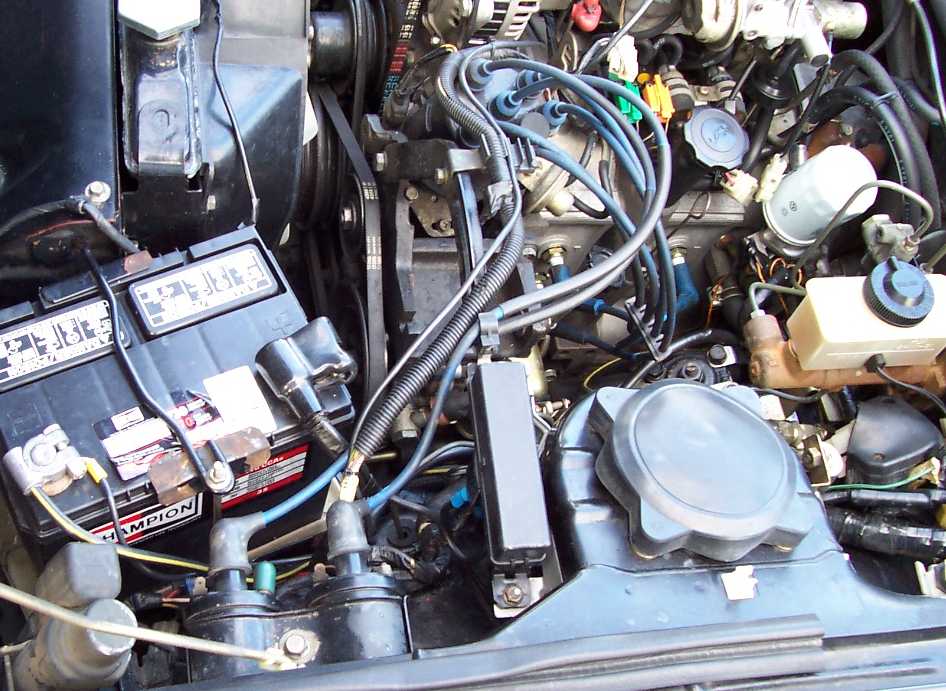

And here is what it looks like all done.

Reply Like

12-21-03 | 07:48 PM

#27

Rutnick

Senior Member

Joined: Sep 2003

Posts: 376

Likes: 0

From: KY

how about a pic before you put the cover on?

Reply Like

12-21-03 | 08:01 PM

#28

Rex4Life

RX-7 Alumni

Joined: Oct 2002

Posts: 1,140

Likes: 1

From: Spacecenter Houston

Well the forum was at it again. Here is the pic.

Don't have one from before, but it was like any other stocker.

Reply Like

03-25-04 | 02:54 PM

#29

Tiers

Senior Member

Joined: Mar 2004

Posts: 350

Likes: 0

From: Victoria, BC

nice where did you get the mounting brackets?

Carl.

Reply Like

03-25-04 | 05:56 PM

#30

Rex4Life

RX-7 Alumni

Joined: Oct 2002

Posts: 1,140

Likes: 1

From: Spacecenter Houston

An 88 Turbo 2, I think any 86-88 will work though.

Scott

Reply Like

06-30-23 | 12:10 PM

#31

elhartd

Full Member

Joined: Oct 2013

Posts: 165

Likes: 3

From: Denver

What size amp fuses did u use for the main and head and the rectotor fuse? I'm doing this install on my rx7 and I'm stuck.

Quote:

Originally Posted by Rex4Life

An 88 Turbo 2, I think any 86-88 will work though.

Scott

Reply Like

06-30-23 | 03:07 PM

#32

KansasCityREPU

Out In the Barn

iTrader: (9)

Joined: Mar 2005

Posts: 6,264

Likes: 1,075

From: KC

Quote:

Originally Posted by elhartd

What size amp fuses did u use for the main and head and the rectotor fuse? I'm doing this install on my rx7 and I'm stuck.

Look at post #10 https://www.rx7club.com/1st-generati...ement-1124923/

Direct link (pun) as who knows how long the original content will be around; Mazda Fusible Links

Details:
Fortunately, aftermarket fuse supplier Bussman has a line of modular fusible links that seem to directly plug into the RX-7 fusible link block, and many stores keep them in stock. They also look better and are probably more reliable than the OEM wire links with cloth covers. So go to your local parts store and pick up the following for your model of RX-7:

For a 12a car:
Order two Bussman "FLF-20" fusible links and one "FLF-40."

For a GSL-SE:
Order three Bussman "FLF-20" fusible links, one "FLF-40" and one "FLF-30."

Bussman also offers the FLF-50, which I thought was just a little too much current to replace the highest capacity OEM fusible link. The FLF-40 is actually under-rated for our application, but it would be safer to choose a more conservative approach to wiring protection, so stick with the FLF-40.

Credit and thanks go out to Jim Rothe for all he's done for the rotary community. Please visit his main site if you find time,

This is another good link: https://www.ausrotary.com/viewtopic.php?t=110012
