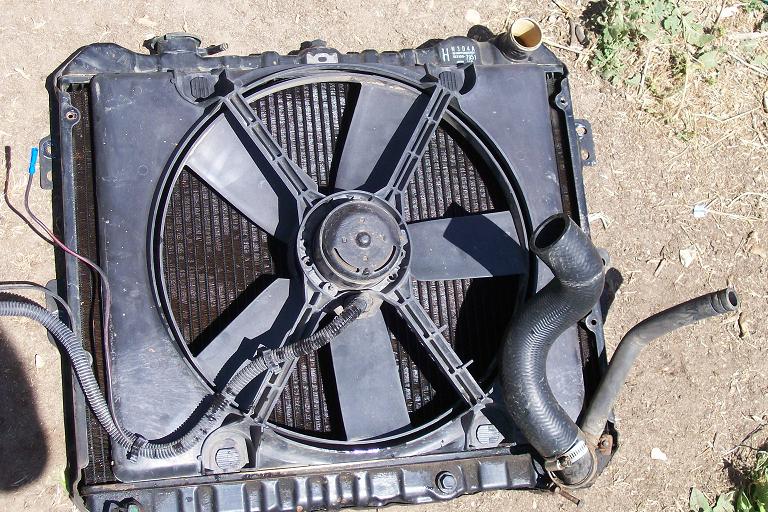

I finally decided to install the Fiero fan that I had into the SE. I am using the heavy duty one that came with the V6 model not the 4 cyl. As you will see by the attached pictures it fits very well on the stock radiator and is a good sized fan.

Since I will be in an area that the summers are relatively mild and most of the driving I will be doing is highway it will be off most of the time. That means that there will be less drag on the engine and less strain overall on the water pump bearing. Well see if there is any improvement in overall MPG.

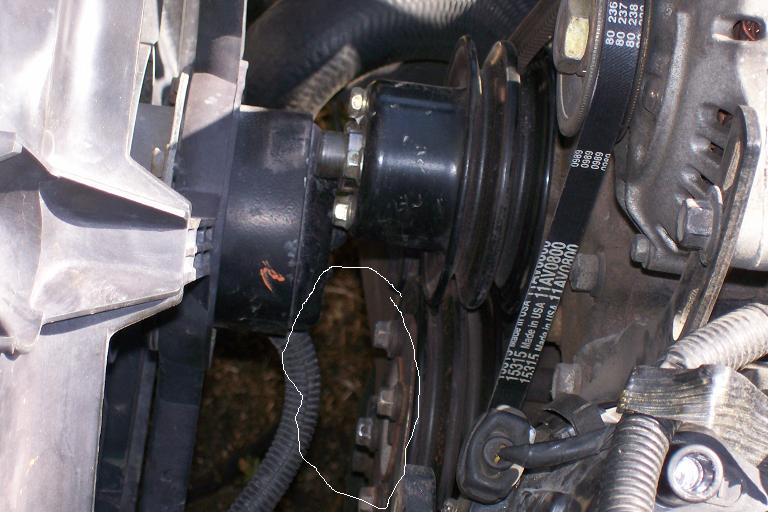

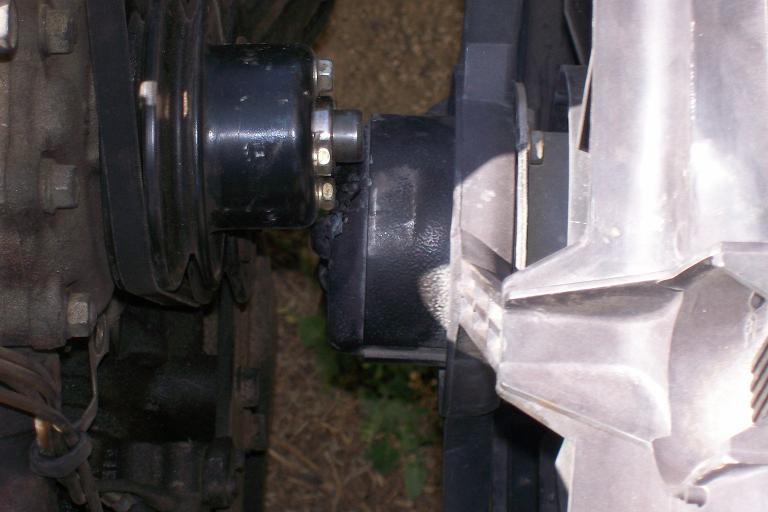

Because the large size of the fan I had to remove the lower pulley for the A/C system. There is zero clearance and I could of tried filing some area off of the outer casing of the fan but I did not want to damage it. If I want to use the A/C I will have to get creative and find a smaller diameter pulley.

Checked the difference in weights between the stock fan,fan clutch, spacer, and fan shroud verus the electric fan assembly. With the questionable digital bath scale that I am using there is no difference. Both systems weighed in at 6 LBS approxiimately.

For now I have it wired to a standard off/on toggle switch. I do no care for those adjustable t'/stats that go into the radiator hose. I may adapt into the bottom of the radiator and install a standard cooling fan switch later on.





Don't you have some freon to discharge?



and what took you so long to do this conversion. Must be bored again ey doc?



damn, fitment looks almost perfect! nice job.



Bored and getting very lazy. :-)



LOL!

Any good fans to use on the short style rads?


Thanks, Ed



Ed,
I have installed this same fan on the shorter ones. It winds up overlapping into the oil cooler and cooling that also when on.



Ed,
here's a sample for you and yes, I used my steak knife for my mock-up.



lol wacky .... great pictures

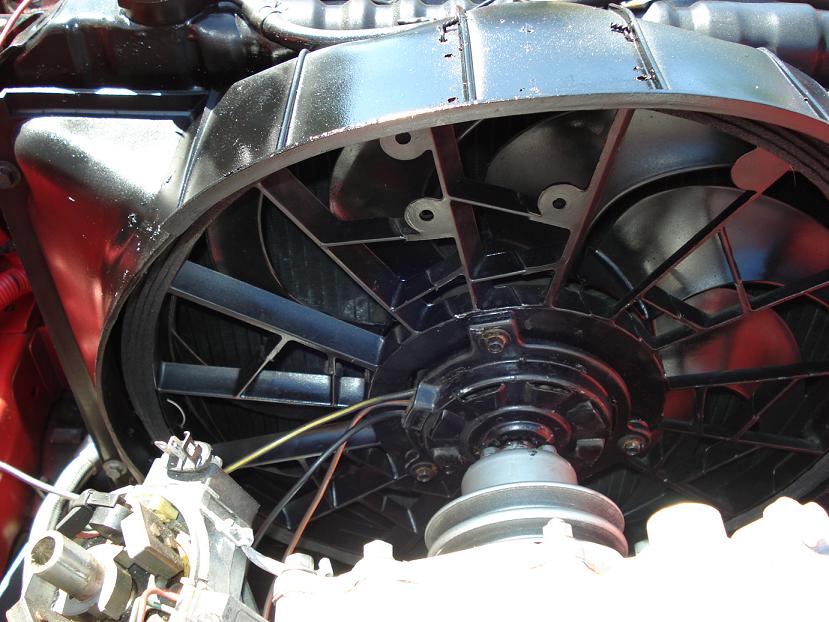

Hey Doc we might have been installing electric fans at the same time!! This is a taurus fan in the stock shroud took a little trimming and fitting but its in there now with about 1/2in in between fan and water pump pully.



Looks good Brandon. Looks like with that set up I would not of had to take my lower pulley off for the A/C. Do you still have an accessory pulley on the bottom eshaft?



I have a feeling that he has a 12-A motor. As far as I know there you cant get a 2" clearance if you have a 13-B motor.



so which one flows more air? the tarus fan or the fiero fan? currently I am useing a dual fan unit from summit, and its ok until bumper to bumper traffic sets in, then I have to shut off the A/C till it catchs up.

kenn



wow there is somthing a Fiero is good for.



You got that right. That car is a major pain to work on. I once did a alternator in one and it took hours.


Kenn_chan,
I don't know which one has a higher CFM. I do know that because the radiator is in the front of the vehicle and it has to keep the temp down enough while it is flowing from the back of the vehicle to the front that it has to put out alot.



I'm going to the boneyard tommorow and try to hunt one down.


Thanks, Ed



Are you in Ca Ed?



what made you decide on the Fiero fan instead of say a Taurus fan or an aftermarket fan? everything looks great on your end!! i'd excited to see how it works out!



It was just the first type that I ever used and it seems to do the job effectively.



*****NOTE******

Fieros have more value than first and second gen rx7s!! Alteast in Canada

used fiero is an easy 10 g's around here.



I havent tried a Ford Taurus fan as Im a hardcore chevy mang.



I'm not sure where you've been looking but when ever I see one for sale its always around 500-1500$ lol



wtf? You've been huffing rush hour fumes again, haven't you...



a friend of mine has made a fortune parting out fieros.... The money he's recieved for (in my eyes) JUNK is insane.
