Ever seen this happen?
#1
Open up! Search Warrant!
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: May 2002
Location: Kicking down doors in a neighborhood near you
Posts: 3,838
Likes: 0
Received 2 Likes
on
2 Posts
![Question](https://www.rx7club.com/images/icons/icon5.gif)
Now that I opened the can of whoop *** on the crank shaft pulley bolt, (see thread on crank shaft pulley bolt) I got the engine apart and found the broken water seal. It broke because there was no metal to support it. Its like the water seal was the only thing bridging the gap across the water jacket. Anyone ever seen this? Its a 87 N/A with 59,000 miles on it. I got pics, but my digital camera is C R A P P Y !
#2
Open up! Search Warrant!
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: May 2002
Location: Kicking down doors in a neighborhood near you
Posts: 3,838
Likes: 0
Received 2 Likes
on
2 Posts

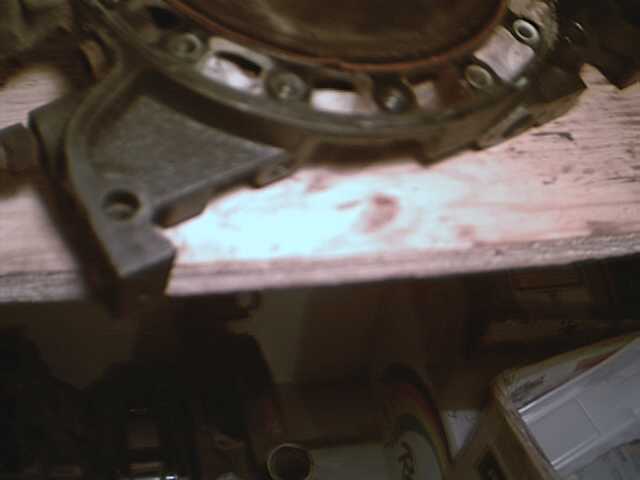

Another crappy pic, but I circled it so you can kinda see what I'm talking about. There is no metal on one side of the channel that the water seal sits in.
#7
It has salt in it.. and when the water passes between to different metals (iron and aluminum) it creates electrolisys(sp?) and ruins the housings.
Salt is just bad period anyways.. it EATS engines!!!
-Zach
Salt is just bad period anyways.. it EATS engines!!!
-Zach
Trending Topics
#8
Lives on the Forum
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Originally posted by zyounker
It has salt in it.. and when the water passes between to different metals (iron and aluminum) it creates electrolisys(sp?) and ruins the housings.
Salt is just bad period anyways.. it EATS engines!!!
It has salt in it.. and when the water passes between to different metals (iron and aluminum) it creates electrolisys(sp?) and ruins the housings.
Salt is just bad period anyways.. it EATS engines!!!
Sure, high amounts of salt (ions) could cause corrosion, but this is probably not the case.  We don't have any real good, high quality pics of the area, but can you confirm if it was erroded or broken - there is a difference.  Most likely a piece of metal broke off and got sucked and lodged somewhere in the cooling system - most likely in the radiator.
What weakens the metal is electrolysis.  To induce this phenomena, all you need is two dissimilar metals and a slight acid.  Distilled water helps, but it will NOT prevent this from happening.  A lot of (acidic) blow-by comes from the combustion gases itself.
50k miles is awefully low for a side housing failure...
Was this car sitting around for a long time somewhere?
-Ted
#9
That is why i also said that it needed to be changed at least once a year also...
Of course there are other reasons, but do you disagree with the use of distilled water and changing it frequently???
-Zach
Of course there are other reasons, but do you disagree with the use of distilled water and changing it frequently???
-Zach
#10
Nikki-Modder Rex-Rodder
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Feb 2001
Location: Trying to convince some clown not to put a Holley 600 on his 12a.
Posts: 2,890
Likes: 0
Received 14 Likes
on
6 Posts
Originally posted by RETed
Bzzzt - try again....
-Ted
Bzzzt - try again....
-Ted
Why don't you try being a little nicer in your delivery.
Zach was only trying to be helpful in offering a perfectly plausible explaination.
![Mad](https://www.rx7club.com/images/smilies/mad.gif)
Last edited by Sterling; 09-18-02 at 06:14 PM.
#11
Open up! Search Warrant!
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: May 2002
Location: Kicking down doors in a neighborhood near you
Posts: 3,838
Likes: 0
Received 2 Likes
on
2 Posts
I got the engine from a member of this forum who lives near here. He said one day that it just started to make white smoke so he stopped driving the cat. He replaced this engine with a Jspec so I bought this one off of him. It hasn't sat for very long. I sent the same pics to mazdatrix, and they send me this.
They say it the casting is weak and just breaks away. It can happen anywhere, but usually occurs on the lower half of the plate.
![](http://www.mazdatrix.com/faqpics/sidehsgs/watercls.jpg)
They say it the casting is weak and just breaks away. It can happen anywhere, but usually occurs on the lower half of the plate.
