1st Generation Specific (1979-1985) 1979-1985 Discussion including performance modifications and technical support sections

Camden Supercharger(7 in)

Thread Tools

Search this Thread

Old 09-12-05, 02:55 PM
  #1
Senior Member

Thread Starter
iTrader: (4)

1985GSL's Avatar

Join Date: Oct 2004
Location: Hudson WI
Posts: 386
Likes: 0
Received 0 Likes on 0 Posts
Camden Supercharger(7 in)

does anyone have one? how much are you boosting? How long did it take you to put it on? do you have low compression rotors?was it worth the 3 grand?what other mods do you have and how much horesepower do you have(just a guess)? any other comments are welcomed. I have a 1985 GSL and i want to put on on.anyones thoughts? I have a 4 port streetported 13B holley carb and intake RB header and exhaust flywheel clutch and pressure plate.
Thanks
Charlie
Old 09-12-05, 10:08 PM
  #2
Lives on the Forum

iTrader: (5)

84stock's Avatar

Join Date: Apr 2003
Location: calgary
Posts: 5,537
Likes: 0
Received 9 Likes on 5 Posts
Been there and can spill all the beans including the ones atkins doesn't reveal. Do I like mine, yes, is it worth it, for me, yes, would you get more out of a turbo, yes, does the camden offer better driveability, simplicity and reliability, yes. I've run 4 different pulleys to vary boost, added heat shields to see change, 3 different exhaust setups, 3 different carbs as well, and experience with 2 different timing configurations, and 3 different air cleaners as well. Dyno tested and in the fall a final dyno test. More to be revealed in a month.

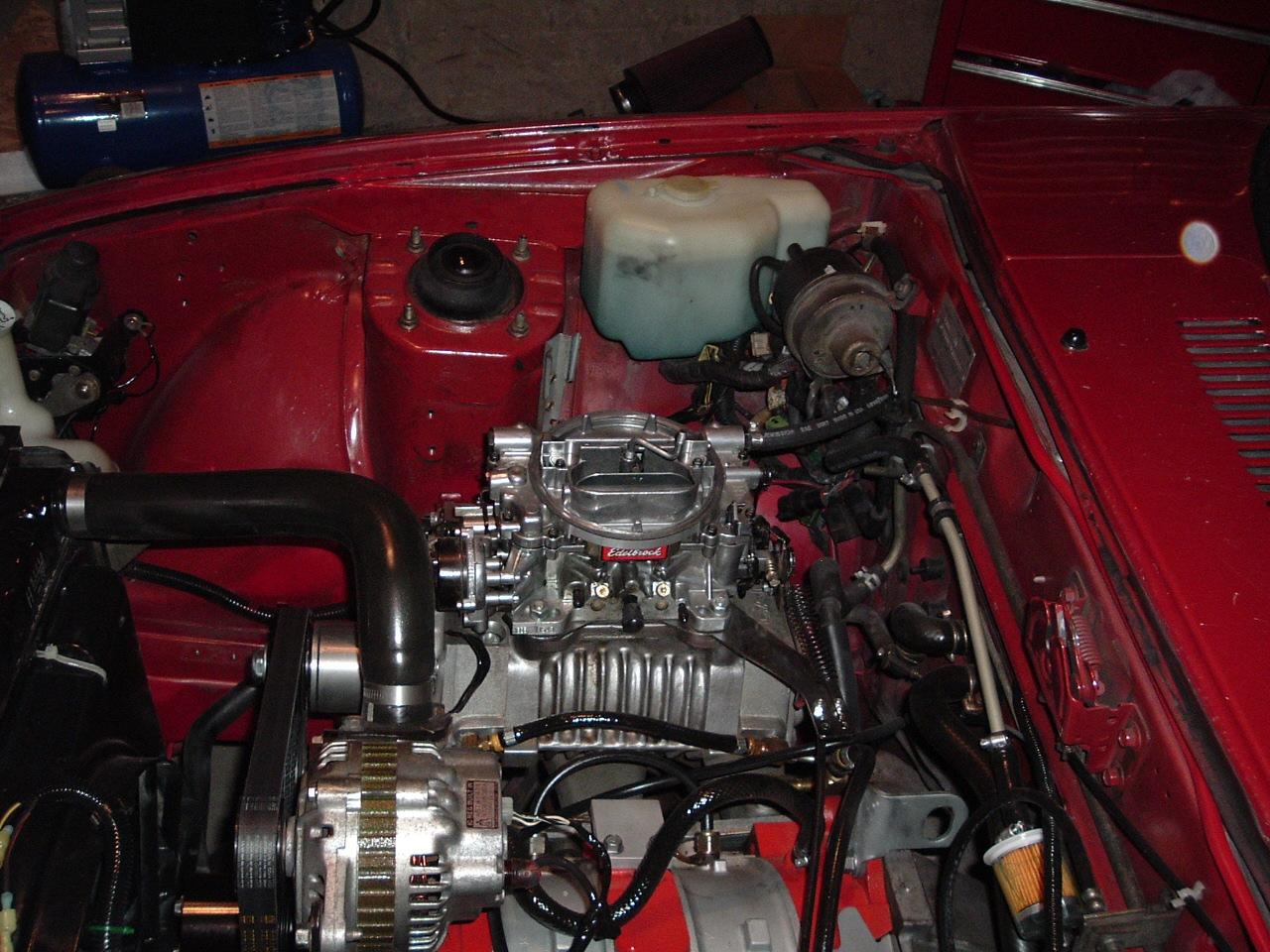

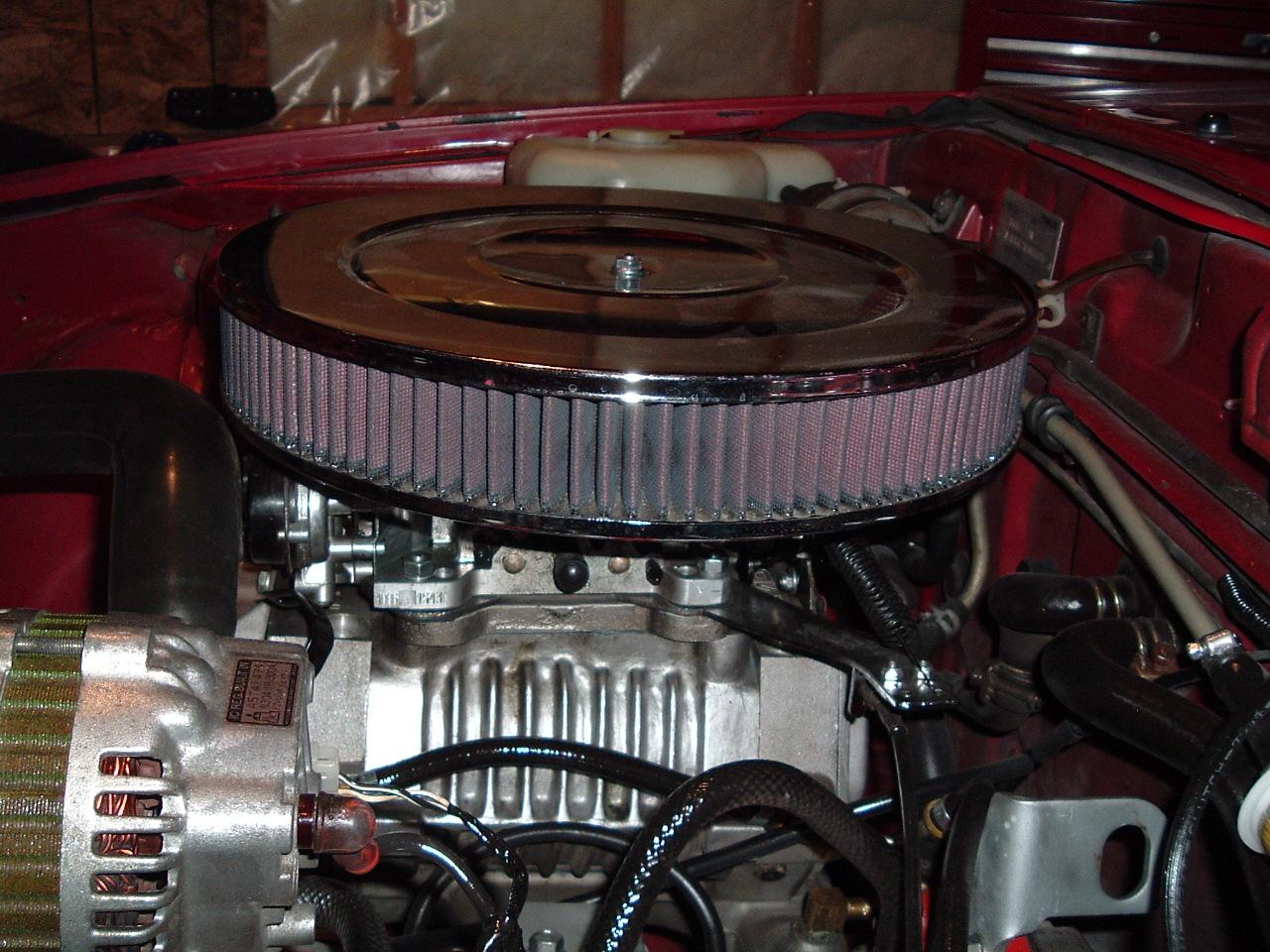

Attached Thumbnails Camden Supercharger(7 in)-aircleaner.jpg   Camden Supercharger(7 in)-carb.jpg   Camden Supercharger(7 in)-car1.jpg
Old 09-12-05, 10:15 PM
  #3
---


inuissus_cendi's Avatar

Join Date: Sep 2005
Location: Minneapolis, MN
Posts: 573
Likes: 0
Received 1 Like on 1 Post
i did a little research a while back and was told by atkins rotary (they sell the camden supercharger) that the kit makes around 11-14 psi. also check out this car for an awesome example of a supercharged 1st gen. blown_83
since then he sold the supercharger and went a different route with the car.
Old 09-12-05, 10:22 PM
  #4
Lives on the Forum

iTrader: (5)

84stock's Avatar

Join Date: Apr 2003
Location: calgary
Posts: 5,537
Likes: 0
Received 9 Likes on 5 Posts
Hmmmmmm, 11-14 is possible at midrange but falls of up top! Been there, done that! More to be revealed!
Old 09-12-05, 10:31 PM
  #5
Resident Bitch


CODE BLUE 2's Avatar

Join Date: Jun 2003
Location: Spoklahoma, WA
Posts: 4,214
Likes: 0
Received 0 Likes on 0 Posts
I also have a camden 7", but have efi/ecu on my 79. I can also try to answer any questions you might have. The good and the bad. Im like 84stock and also love my blower. I have one of each a supercharged and a turboed car. Both have good and bad about them. Anyways maybe us three can catch each other on aim sometime and talk. Let me know.

Heres a link to my cardomain if you wanna check out. Not updated lately though.
http://www.cardomain.com/profile/codeblue2

Last edited by CODE BLUE 2; 09-12-05 at 10:36 PM.
Old 09-12-05, 10:47 PM
  #6
---


inuissus_cendi's Avatar

Join Date: Sep 2005
Location: Minneapolis, MN
Posts: 573
Likes: 0
Received 1 Like on 1 Post
i would love to supercharge my 1st gen, but i just dont have that kinda money. plus i have a 12a, i've never heard of a blown 12a...
Old 09-13-05, 01:33 PM
  #7
Lapping = Fapping

iTrader: (13)

Jeff20B's Avatar

Join Date: Aug 2001
Location: Near Seattle
Posts: 15,725
Received 83 Likes on 76 Posts
There is a 7" manifold for a 12A.
Old 09-13-05, 03:37 PM
  #8
Lives on the Forum

iTrader: (5)

84stock's Avatar

Join Date: Apr 2003
Location: calgary
Posts: 5,537
Likes: 0
Received 9 Likes on 5 Posts
I have a friend here running a 7" on a 12a.
Old 09-13-05, 03:59 PM
  #9
Wassup!!


Rotor13B's Avatar

Join Date: Jul 2001
Location: Longmont Co.
Posts: 1,081
Likes: 0
Received 1 Like on 1 Post
Originally Posted by CODE BLUE 2
I also have a camden 7", but have efi/ecu on my 79. I can also try to answer any questions you might have. The good and the bad. Im like 84stock and also love my blower. I have one of each a supercharged and a turboed car. Both have good and bad about them. Anyways maybe us three can catch each other on aim sometime and talk. Let me know.

Heres a link to my cardomain if you wanna check out. Not updated lately though.
http://www.cardomain.com/profile/codeblue2
Hey CODEBLUE 2, Does that sidedraft intake have seperate runners to the supercharger?
Old 09-13-05, 10:09 PM
  #10
Senior Member

Thread Starter
iTrader: (4)

1985GSL's Avatar

Join Date: Oct 2004
Location: Hudson WI
Posts: 386
Likes: 0
Received 0 Likes on 0 Posts
hey CODEBLUE 2 tell us in specific what the ups and downs of turbo and supercharger are please.
Old 09-13-05, 10:35 PM
  #11
Resident Bitch


CODE BLUE 2's Avatar

Join Date: Jun 2003
Location: Spoklahoma, WA
Posts: 4,214
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Rotor13B
Hey CODEBLUE 2, Does that sidedraft intake have seperate runners to the supercharger?

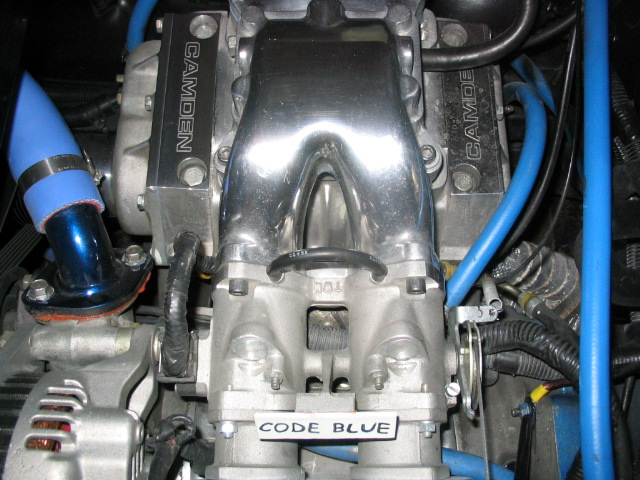

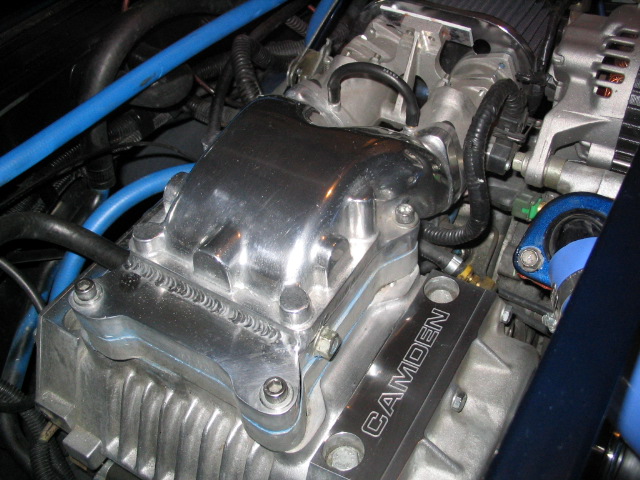

Do you mean where the throttle body meets the manifold? It is actually V'ed but it goes into one opening into the supercharger. Heres a couple pics.



Attached Thumbnails Camden Supercharger(7 in)-misc-009.jpg   Camden Supercharger(7 in)-misc-010.jpg
Old 09-13-05, 10:41 PM
  #12
Resident Bitch


CODE BLUE 2's Avatar

Join Date: Jun 2003
Location: Spoklahoma, WA
Posts: 4,214
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by 1985GSL
hey CODEBLUE 2 tell us in specific what the ups and downs of turbo and supercharger are please.
lol... let me think on this one and I will make a list. This will only be my opinion though on what differences I see between both of the cars I have. The turbo'ed 85 gsl se and Supercharged 79.
Old 09-13-05, 11:23 PM
  #13
Resident Bitch


CODE BLUE 2's Avatar

Join Date: Jun 2003
Location: Spoklahoma, WA
Posts: 4,214
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by CODE BLUE 2
Do you mean where the throttle body meets the manifold? It is actually V'ed but it goes into one opening into the supercharger. Heres a couple pics.



Everything runs cooler with side draft. If your running a side draft it’s not crushing the fuel, so it runs cooler. If your running a carb or fuel injected carburetor and your injecting it on top, then it runs hotter.

If your using the side draft you can still use the 2 primary injectors in the block, and your secondary ones would be in your manifold.
Old 09-14-05, 01:33 AM
  #14
Wassup!!


Rotor13B's Avatar

Join Date: Jul 2001
Location: Longmont Co.
Posts: 1,081
Likes: 0
Received 1 Like on 1 Post
Originally Posted by CODE BLUE 2
Everything runs cooler with side draft. If your running a side draft it’s not crushing the fuel, so it runs cooler. If your running a carb or fuel injected carburetor and your injecting it on top, then it runs hotter.

If your using the side draft you can still use the 2 primary injectors in the block, and your secondary ones would be in your manifold.
So can you run a sidedraft carb with this intake or does it hav to be a throttlebody only?
Old 09-14-05, 10:34 AM
  #15
Former Site Sponsor

Atkins Dan's Avatar

Join Date: Aug 2003
Location: Tacoma WA
Posts: 4,368
Likes: 0
Received 0 Likes on 0 Posts
For thoes that have any Questions please call me or Andy @ 253-848-7776 or E-mail us @ Info@ AtkinsRotary.com

Later
Dan
Old 09-14-05, 12:35 PM
  #16
MattG FTW!!!!!

iTrader: (2)

MattG's Avatar

Join Date: Feb 2005
Location: South Windsor, CT
Posts: 2,733
Likes: 0
Received 1 Like on 1 Post
I kinda thought it was funny, but hey what do I know. Im just a kid working my way to become a rotorgod
Old 09-14-05, 01:44 PM
  #17
Go Hawks!

iTrader: (1)

64mgb's Avatar

Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes on 0 Posts
I think it's great that vendors are willing to participate in the forum, and appreciate all the help. I know this...any time I've called Andy and asked him questions about the 5" supercharger I'm trying to install (questions that I'm sure he thought were really stupid), he's always been patient and very helpful.

Rich
Old 09-14-05, 02:21 PM
  #18
Resident Bitch


CODE BLUE 2's Avatar

Join Date: Jun 2003
Location: Spoklahoma, WA
Posts: 4,214
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Rotor13B
So can you run a sidedraft carb with this intake or does it hav to be a throttlebody only?
Well I really didnt know the answer to this....but Dan Atkins said yes you can. As for Camden and "Andy", yeah he is a great guy. Ive asked stupid questions myself, and he has always been helpful.

Last edited by CODE BLUE 2; 09-14-05 at 02:25 PM.
Old 09-14-05, 03:44 PM
  #19
Wassup!!


Rotor13B's Avatar

Join Date: Jul 2001
Location: Longmont Co.
Posts: 1,081
Likes: 0
Received 1 Like on 1 Post
Originally Posted by CODE BLUE 2
Well I really didnt know the answer to this....but Dan Atkins said yes you can. As for Camden and "Andy", yeah he is a great guy. Ive asked stupid questions myself, and he has always been helpful.
That's great news, Thanks for the answer this helps out in the cost department for sure as I already have a dhla 48 sidedraft to work with.
Old 09-14-05, 05:47 PM
  #20
Lives on the Forum

iTrader: (5)

84stock's Avatar

Join Date: Apr 2003
Location: calgary
Posts: 5,537
Likes: 0
Received 9 Likes on 5 Posts
I've always found both of them approachable and helpful over the phone as well.
Old 09-14-05, 06:56 PM
  #21
Rotary Enthusiast


rbf41182gt's Avatar

Join Date: Jun 2004
Location: Richmond, VA
Posts: 1,081
Likes: 0
Received 2 Likes on 1 Post
so how much boost do you usually run, and what kind of hp are you making?

those setups look really nice
Old 10-11-05, 12:20 AM
  #22
Blood, Sweat and Rotors

iTrader: (1)

DriveFast7's Avatar

Join Date: Aug 2001
Location: California
Posts: 3,742
Received 1 Like on 1 Post
Any new news 84stock? Has it been on the dyno in the last month? I'd like to get the lowdown on the hot supercharger setup. Blower size, pulley, boost psi, exhaust setup, timing, carb choke sizes, etc............................................... ........
