Blow through jetting Querry (hangar rebuild)
I'm amassing the necessary parts to tear into my Holley 650 that I'll use on my setup. I'll be using the walk through from hangar18fabrication.com/blowthru.html
I'm curious about how much I should drill out the PVCRs, if at all for the 200-300hp range?
I'm also wondering if anyone can help me with choosing the proper primary and secondary jet sizes?
One last thing. I'm looking at running -6an, 3/8" fuel line with a 1/2" return line. Would this be sufficient?
I'm running a 650dp and a Garrett A/R .42 T3/T4 with the stock spring...7lbs, I'm guessing? I don't really want to go further than that.
Thanks guys!
I'm curious about how much I should drill out the PVCRs, if at all for the 200-300hp range?
I'm also wondering if anyone can help me with choosing the proper primary and secondary jet sizes?
One last thing. I'm looking at running -6an, 3/8" fuel line with a 1/2" return line. Would this be sufficient?
I'm running a 650dp and a Garrett A/R .42 T3/T4 with the stock spring...7lbs, I'm guessing? I don't really want to go further than that.
Thanks guys!
#2
Rotary Enthusiast
iTrader: (8)
Join Date: Feb 2007
Location: Southwest
Posts: 817
Likes: 0
Received 0 Likes
on
0 Posts
Don't drill the pvcrs untill you start tunning (you can't un do it ) on my 600 I think I had 65 pri. And 85 sec for 5 psi, on a stock port 12a
That fuel line is fine, I ran 3/8 supply and 5/16 Return no problem, what pump are you using?
That fuel line is fine, I ran 3/8 supply and 5/16 Return no problem, what pump are you using?
#3
Senior Member
Thread Starter
iTrader: (2)
Join Date: Nov 2007
Location: Augusta, Ga.
Posts: 356
Likes: 0
Received 0 Likes
on
0 Posts
I'm going to run a Holley blue pump with an Aeromotive RR FPR. I haven't gotten around to plumbing the fuel sys, yet. I wanted to be sure about the line sizes.

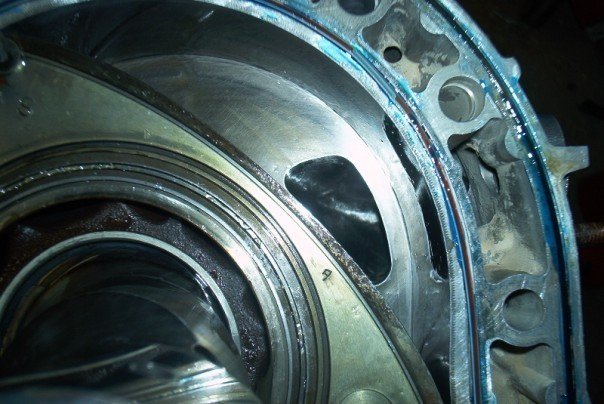

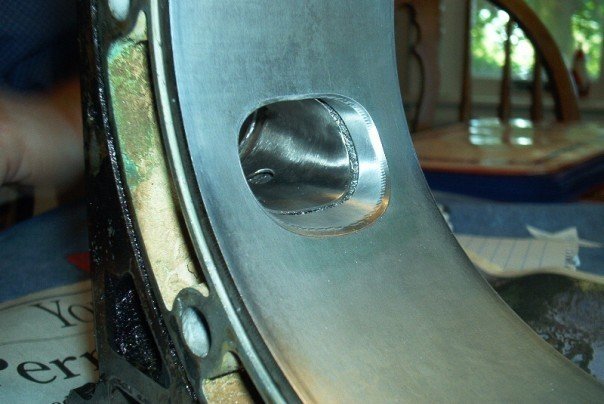

I forgot to mention that the setup is on a large streetport 12a
