I've been researching components to make a big brake kit for my FB track days car, and I've finally found a setup that satisfies all my requirements:

- fit inside my 15" wheels
- 4 piston caliper from a highly regarded manufacturer
- correct, balanced piston sizes (30mm/34mm)
- 2-piece rotors (hat and disc) so I can get a big rotor with my OE 4X114.3 bolt pattern
- curved vane rotors

What I used:
hub: FC 4-bolt w/ReSpeed bearing adapter
hat: Custom 1 ½” spacer with integral hat
caliper: StopTech ST40 30/34
rotor: Coleman Racing custom, 305mm dia, 32mm thick
caliper brackets: custom made, radial mount

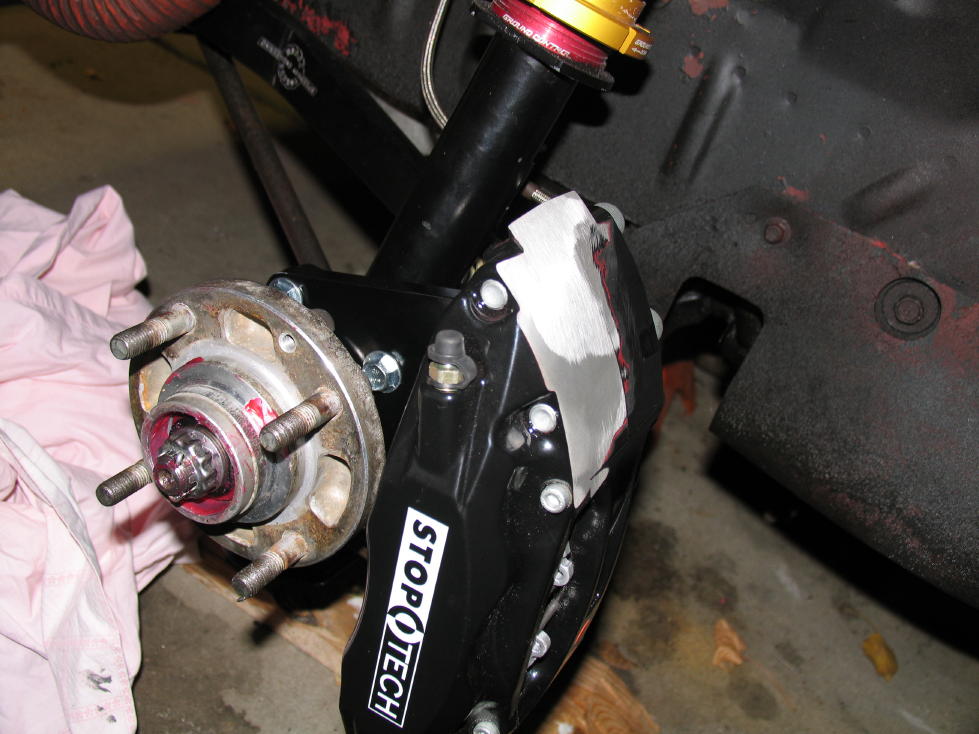

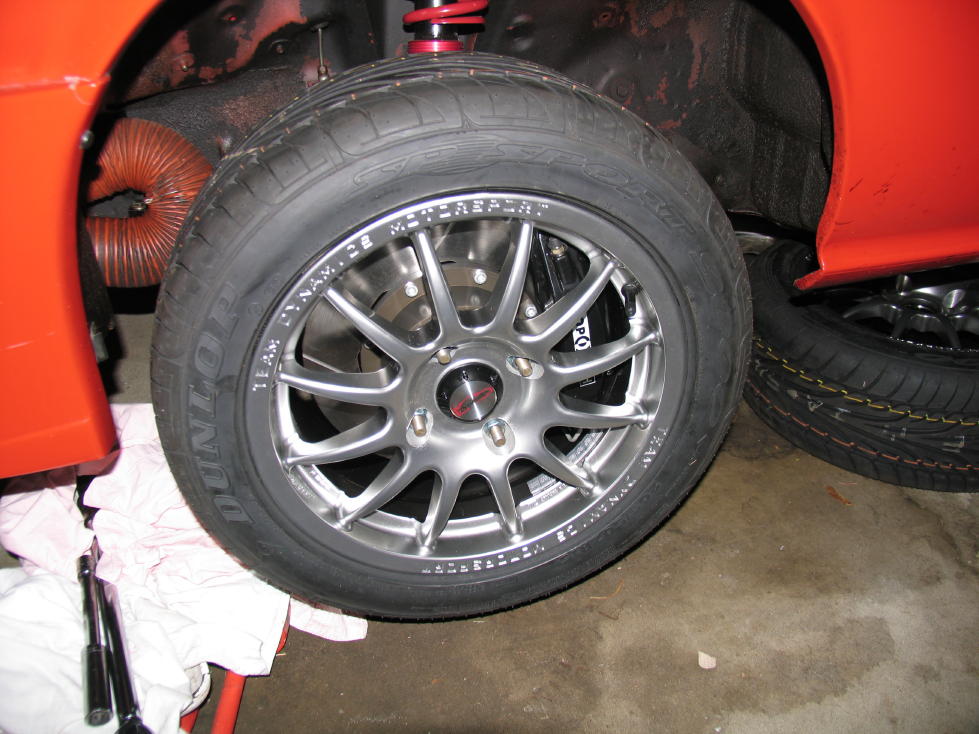

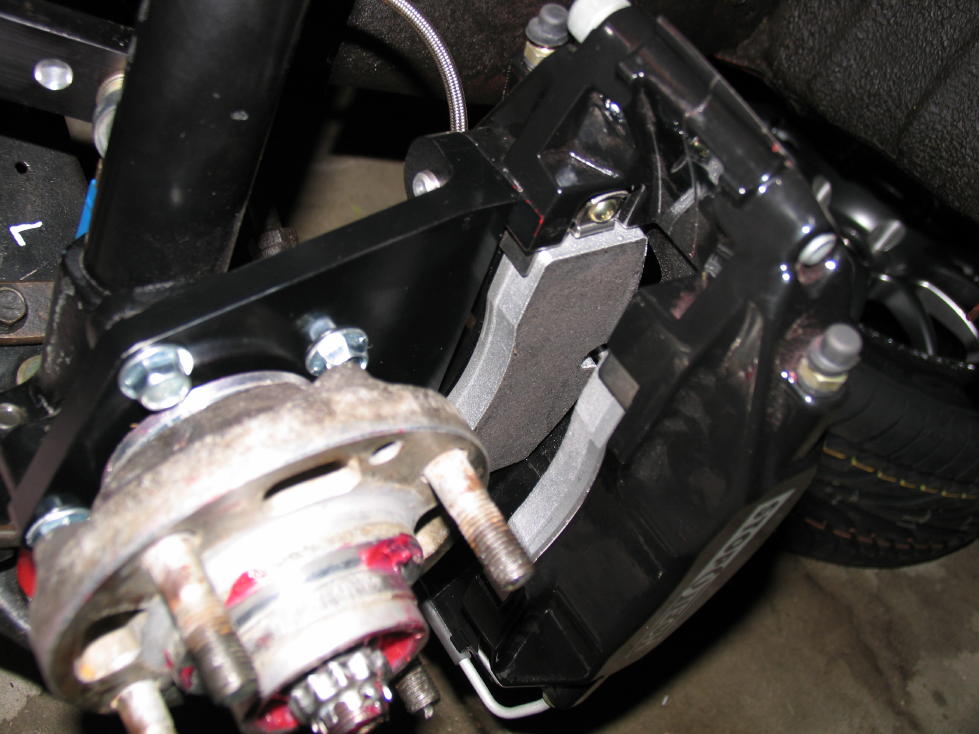

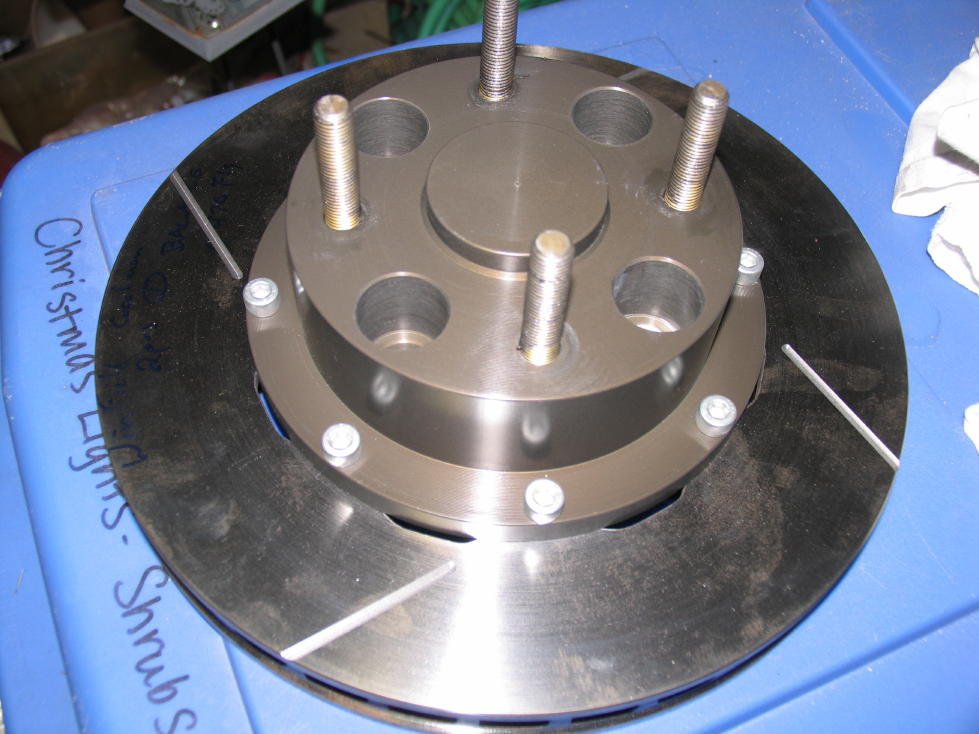

It’s been about 5 months since I dreamed this up, and I finally have the brake setup installed. The largest rotors that would fit inside my 15" wheels were 12". Running fitment calcs with caliper templates is tricky. The curvature of the calipers didn't match that of my wheels, so I lost a little potential rotor size because of it. It's also part of the reason I had to grind some material off the OD of the calipers. My spacers are 1.5" thick and serve as a hub dust cover and rotor hat. I had them hard anodized for corrosion resistance. The trickiest part was the caliper brackets. My machinist nailed them on the first shot -- perfect fitment, no drag, no shims. The calipers are radial mount, so I used the same studs StopTech uses in their kits. They were expensive, but worth it.

Haven't driven the car with this setup yet, but I'm encouraged that everything fits and I don't hear any grinding noises when I spin the wheels.

elwood

iTrader: (1)

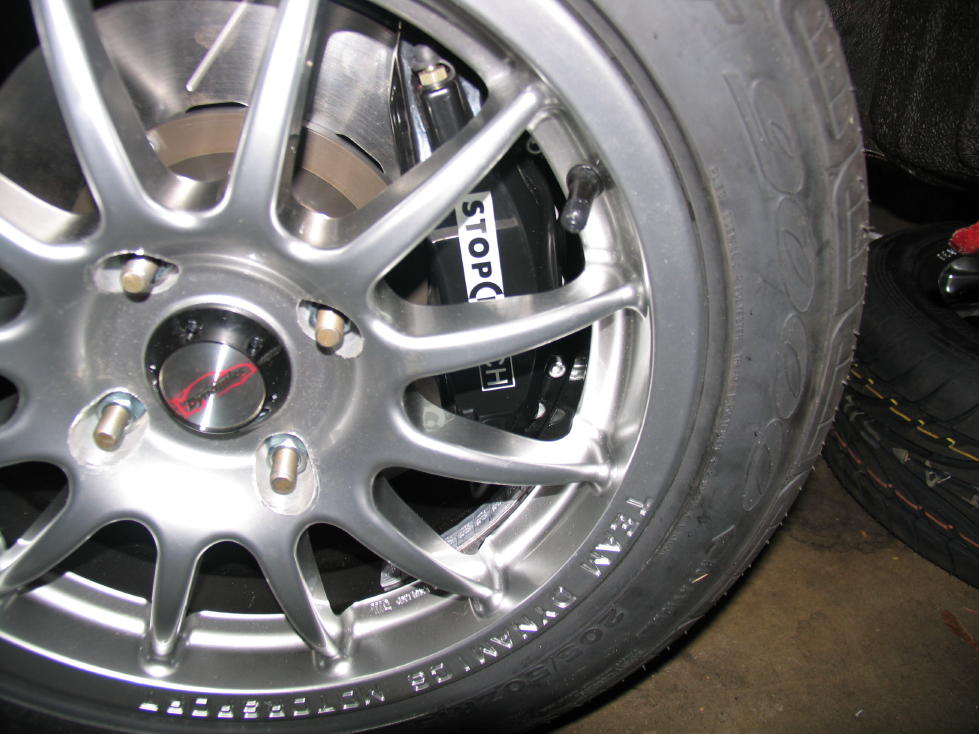

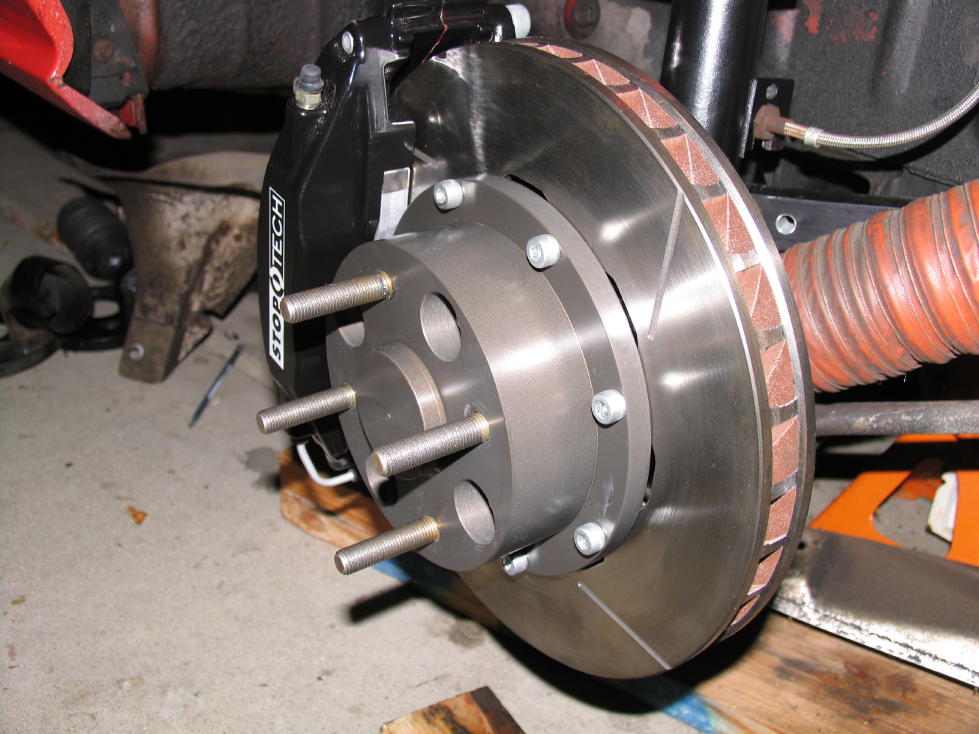

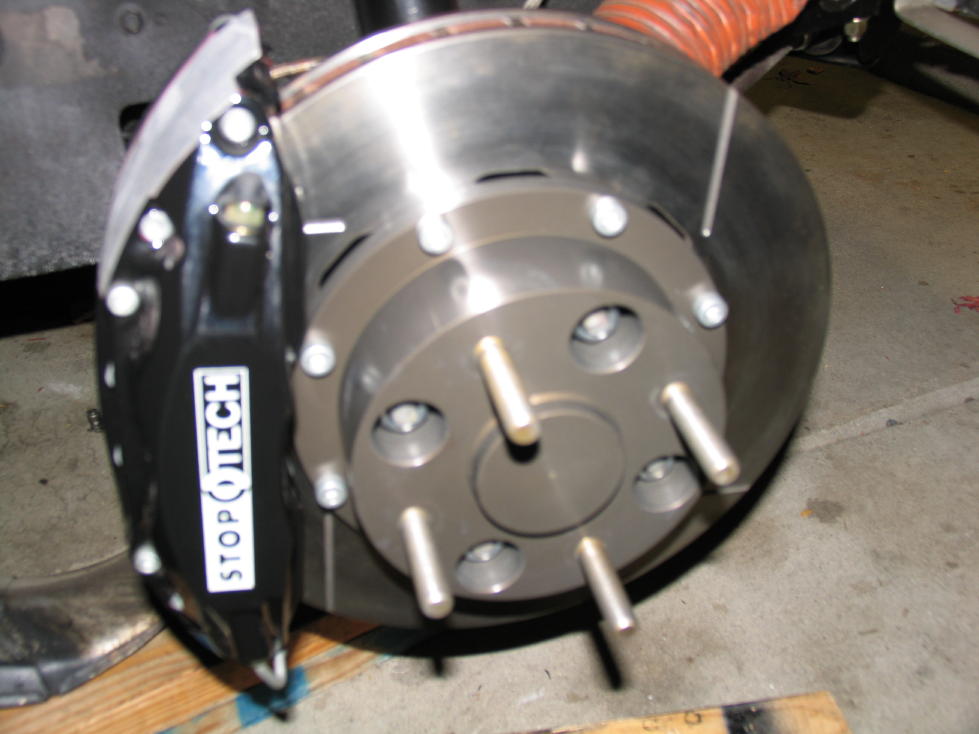

Two more pics.

Jeezus

iTrader: (4)

sweet man! how is it?


edit: jumped the gun on how is it, lol, i got excited

Kentetsu

Very impressive man!

elwood

iTrader: (1)

Kentetsu,

Thanks. You lucky dog -- you're right by my favorite track -- Grattan. I'm near Waterford Hills. It's like a road race course, only smaller .

Rico Suave

iTrader: (1)

very nice indeed, KUDOS !

woodonastick

iTrader: (1)

wow that looks really really nice. should i be afraid of asking the price of the set up? btw nice wheels. i have a set of those myself. waited a good 7 months

elwood

iTrader: (1)

Without including all the little knick-knacks:

Pair of Calipers $700 (normal pricing is $1000, but I got a special deal)
Pair of Spacers $300
Pair of Caliper Brackets $140
ReSpeed Brake Conv Kit $175
Custom Rotors $150


I think that covers the major stuff.

As for the wheels, mine are the ProRace 1.2. I ordered the ones with the deeper spoke dish, but that's what they sent me and I decided to live with them.

RX3SP

iTrader: (62)

WOW! That's a nice setup!

680RWHP12A

very nice

mazda6guy

iTrader: (1)

That's so hot man!

dj55b

iTrader: (2)

thats very nice indeed ... how would you say these compare as oppose to getting the Caliper off a TII and slotted rotors for t2 also? What have you done to the rear?

elwood

iTrader: (1)

As compared to a TII conversion, my setup is a lot more work to make, a lot more expensive, but offers nearly twice the thermal mass. This means greater fade resistance for track use.

I haven't done anything to the rear (or the master cylinder / booster, or the brake lines), which was a key part of my objectives. I wanted to limit the scope of work -- otherwise I'd end up with a totally new braking system and all the associated extra work. Besides, I have a GSL-SE rear, which seems to be working fine. I haven't had any overheating issues with it, so the plan was to leave it alone.

I selected the front components -- rotor diameter and caliper piston sizes --specifically to maintain the OE front/rear bias. Most of the kits I've seen are front-biased because the aftermarket calipers available usually have big pistons ~1.75" / 1.88". Being front biased is safe but will increase stopping distance slightly since you won't get the optimal work out of the rear brakes. A prop valve won't correct this, since it's job is to reduce the work the rear brakes do -- not increase it.

The TII conversion is very good choice. It maintains proper bias, the parts are readily available (I found the ReSpeed kit to be excellent quality), and it's a true bolt-on conversion. The only thing you'll need to wrestle with is wheel spacers to put your front wheels where you want them.

BTW -- I spoke with Roger Mandeville about his TII brake upgrade. It is possible to get more brake out of the TII caliper. He no longer sells the kit, but it consisted of spacers to widen the caliper so you can use thicker rotors, caliper brackets that spaced the calipers further outboard, and bigger rotors. If you want to do some work, all these parts can be made yourself. This conversion will throw off your front/rear bias slightly, but it will still be very close to optimal.
