bad casing gaskets?
#1
emissions r teh sux
Thread Starter
iTrader: (2)
Join Date: Dec 2005
Location: Stockton Ca
Posts: 888
Likes: 0
Received 0 Likes
on
0 Posts
bad casing gaskets?
i tracked down the smoking thermal reactor problem.....its oil...
when i was under the hood i looked for other leaks and suck and noticed i have oil leaking from the underside of the front of the engine. could this possibly be the casing gaskets? also could this be the reason my oil pressure gague doesn't work?
when i was under the hood i looked for other leaks and suck and noticed i have oil leaking from the underside of the front of the engine. could this possibly be the casing gaskets? also could this be the reason my oil pressure gague doesn't work?
#3
Rotary Enthusiast
iTrader: (1)
Join Date: Feb 2004
Location: Waterloo & Mississauga, Ontario, Canada
Posts: 838
Likes: 0
Received 1 Like
on
1 Post
Clean up the underside and see if you can source the leak, it could be the oil pan gasket, or it could be a number of other things. What year/model is your car? If it has the beehive oil cooler, that could be the source of your leak.
As for the pressure gauge, check the connection on the sender unit, a little mushroom shaped brass thing on the rear driver side of the engine off the side. The connection sometimes gets a little dirty.
As for the pressure gauge, check the connection on the sender unit, a little mushroom shaped brass thing on the rear driver side of the engine off the side. The connection sometimes gets a little dirty.
#5
Turbo widebody FB
iTrader: (1)
front of engine near the thermal reactor exhaust manifold? It will be your OMP, there really is only a couple common leaks on these things. What I did with my engine is I took off the omp, make a blockoff plate out of think aluminum and began premixing my gas. The problem could also be a leaking oil pan, but then it wouldn't be leaking onto your thermal reactor.
If you have a picture I could tell you in like 2 seconds, the OMP that im talking about is on the front plate of the engine offset to the right (while standing looking at the engine from the passenger side fender) of the intake manifold.

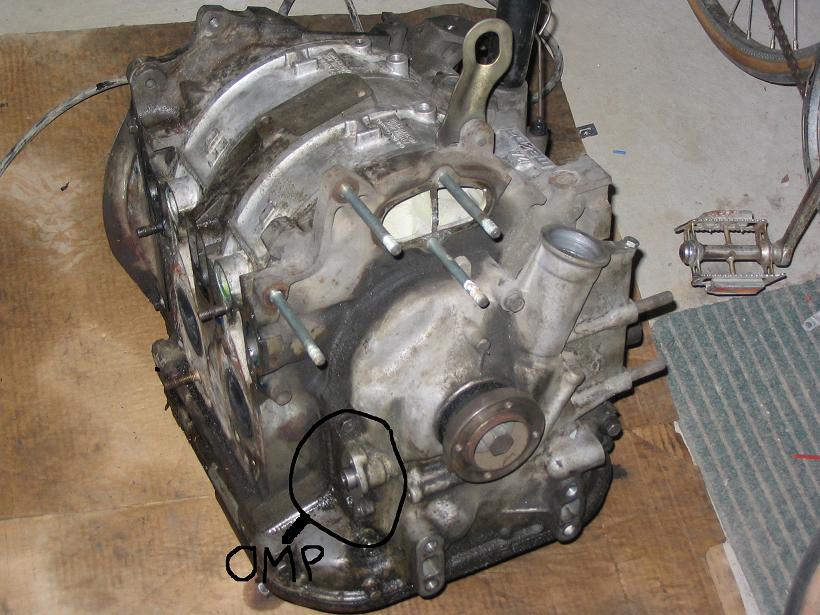

EDIT: ok found a picture, this shows the location of the oil metering pump. As for the pressure gauge not working I agree that the wire is probally just disconnected, it is located below the beehive oil cooler, and the wire connects to the bellshaped (gold colored) thing, the wire clips onto the tip where it jets out.
If you have a picture I could tell you in like 2 seconds, the OMP that im talking about is on the front plate of the engine offset to the right (while standing looking at the engine from the passenger side fender) of the intake manifold.
EDIT: ok found a picture, this shows the location of the oil metering pump. As for the pressure gauge not working I agree that the wire is probally just disconnected, it is located below the beehive oil cooler, and the wire connects to the bellshaped (gold colored) thing, the wire clips onto the tip where it jets out.
Last edited by Dan_s_young; 12-29-05 at 05:03 PM.
Trending Topics
#8
emissions r teh sux
Thread Starter
iTrader: (2)
Join Date: Dec 2005
Location: Stockton Ca
Posts: 888
Likes: 0
Received 0 Likes
on
0 Posts
ok. i will check that. on the plus side i got it to run so im going to take it to the parts store, pick up some **** to clean my engine with so i can see things, and i will let you know waht i find. thank you for your help guys. i truly appreciate it
#9
emissions r teh sux
Thread Starter
iTrader: (2)
Join Date: Dec 2005
Location: Stockton Ca
Posts: 888
Likes: 0
Received 0 Likes
on
0 Posts
it is my omp...you guys are badass. i couldnt locate the oil pressure sensor but i was on limited time. i will look for it tomorrow morning and see what i can do about that. once again, thank you for your help.
