13B 4-port
#1
Full Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Aug 2002
Location: Abilene, Tx
Posts: 62
Likes: 0
Received 0 Likes
on
0 Posts
![Question](https://www.rx7club.com/images/icons/icon5.gif)
Where in the US could I get a hold of a 13B 4-port?? Are they pretty rare?? Would it bolt in directly to an '80 Rex or would I have to modify the car as if I was putting in a 6-port??
#2
Banned. I got OWNED!!!
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts
I just got done installing a 13B 4 port in my right hand drive 80. Need 12A front cover/Special front eng brace .. that's about it.. and new clutch/pressure plate.. Going to crank mine up in the A.M. and need new header also..
Any more questions just PM me..
Later, Gonzz
Any more questions just PM me..
Later, Gonzz
#5
Open up! Search Warrant!
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: May 2002
Location: Kicking down doors in a neighborhood near you
Posts: 3,838
Likes: 0
Received 2 Likes
on
2 Posts
I have 2 '87 13B 6 ports in my garage. All the 1st Gen SE's were 4 ports. Also, the first gen 13B's have the water seals in the rotor housing. The 2nd gens have the water seals in the end plates and center plates. The rotor housings are smooth. I just did a search on it 2 days ago cause someone tried to tell me I had a SE motor when I pulled it out of a 87GXL.
#6
Arent these 6 ports???
http://www.racingbeat.com/resultset....rtNumber=16734
Also, my thread i was referring to:
https://www.rx7club.com/forum/showth...hreadid=111220
From reading on Racing beat, you dont need the water seal "O" rigns unless you have the 12a 4 port, cause the 13b 6 port ( 84-85 models) dont have it....
Now i'm confused...
http://www.racingbeat.com/resultset....rtNumber=16734
Also, my thread i was referring to:
https://www.rx7club.com/forum/showth...hreadid=111220
From reading on Racing beat, you dont need the water seal "O" rigns unless you have the 12a 4 port, cause the 13b 6 port ( 84-85 models) dont have it....
Now i'm confused...
Trending Topics
#9
Originally posted by Project84
I have 2 '87 13B 6 ports in my garage. All the 1st Gen SE's were 4 ports. Also, the first gen 13B's have the water seals in the rotor housing. The 2nd gens have the water seals in the end plates and center plates. The rotor housings are smooth. I just did a search on it 2 days ago cause someone tried to tell me I had a SE motor when I pulled it out of a 87GXL.
I have 2 '87 13B 6 ports in my garage. All the 1st Gen SE's were 4 ports. Also, the first gen 13B's have the water seals in the rotor housing. The 2nd gens have the water seals in the end plates and center plates. The rotor housings are smooth. I just did a search on it 2 days ago cause someone tried to tell me I had a SE motor when I pulled it out of a 87GXL.
All 1984 and newer N/A 13B engines are six ports.
All 1983 and Older 13B Engines are 4 ports
All Turbo Rotary engines are 4 ports.
Read the article below - 6 PORT LAYOUT..
![](http://www.iluvmyrx7.com/1stgen/ads/images/Ad1-2-1.jpg)
#10
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Apr 2002
Location: Plano, TX
Posts: 612
Likes: 0
Received 0 Likes
on
0 Posts
All 84-85 SEs from the factory are 13b 6-ports!!!!!!!!!!!!!!!!!!!!

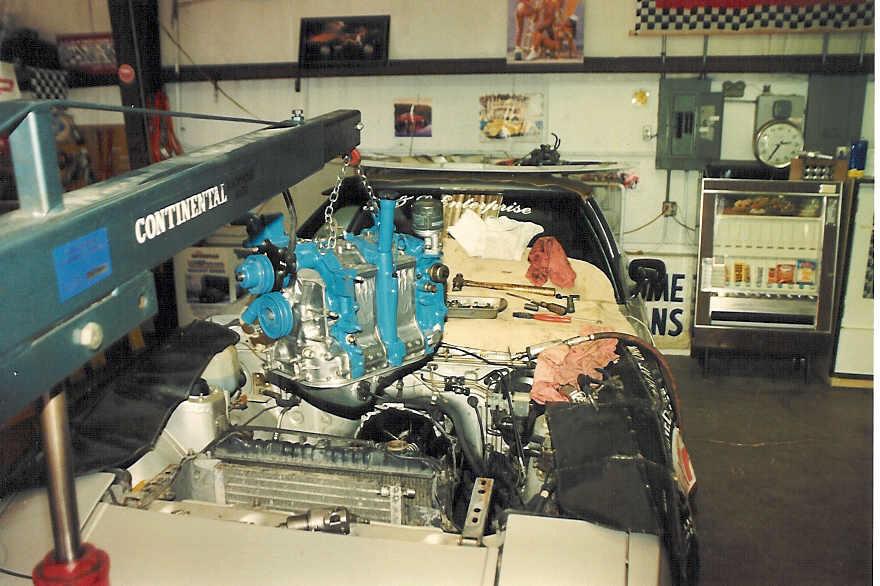

You can build a 13b 4port pretty easly.....here was one of mine.
You can build a 13b 4port pretty easly.....here was one of mine.
Last edited by 1st7heaven; 09-09-02 at 09:50 AM.
#12
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Apr 2002
Location: Plano, TX
Posts: 612
Likes: 0
Received 0 Likes
on
0 Posts
I meant to say that all you have to do on the front engine bracket is bend it.....thats all I ever do on my conversions. It takes a big sledge hammer and a big vise!!
#15
Open up! Search Warrant!
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: May 2002
Location: Kicking down doors in a neighborhood near you
Posts: 3,838
Likes: 0
Received 2 Likes
on
2 Posts
I know the 6-ports are harder to port with minimal gains. I'm working on removing the diffuser from the exhaust port. The engine is already apart, and so I'm going to do it cause a small gain is a gain none the less.
#16
13b 4port? get a turbo 2 motor and take all the crap off you want, blamo instant 4 port motor. sure the compression is a little bit lower but i doubt you'd really notice it that much and you can always put a different set of rotors in there to bump it back up
#17
Old [Sch|F]ool
![](/images/misc/20_year_icon.png)
A true "13B 4-port" was available in RX-4s, RX-5 "Cosmo"s, and REPUs, 1974-1978. (In the US anyway...)
The GSL-SE engine is a 6-port. It's the same rotating assembly as the '74-78 engine, with "6-port" end housings (probably the same as the 12A 6-ports used in Japan starting in '81) and a center housing with smaller ports and fuel injector bungs (probably the same as the one used in the Japan-only '83-85 12A Turbo).
The '74-78 13Bs used the exact same side housings as the same year 12As. You can easily make a "4-port 13B" using 12A side plates with GSL-SE rotating assembly (again, same as '74-78) and rotor housings, as well as the niggly bits like oil pan, tension bolts, and dowel pins. Because of that, it's easier to start with a GSL-SE engine than it is to start with a 12A.
But basically, a "4-port 13B" is just a 20mm longer 12A.
The '86-up engines really are quite different from the '74-85 engines. Yes, a Turbo engine is a 4-port but it's not really the same as a "4-port 13B".
The GSL-SE engine is a 6-port. It's the same rotating assembly as the '74-78 engine, with "6-port" end housings (probably the same as the 12A 6-ports used in Japan starting in '81) and a center housing with smaller ports and fuel injector bungs (probably the same as the one used in the Japan-only '83-85 12A Turbo).
The '74-78 13Bs used the exact same side housings as the same year 12As. You can easily make a "4-port 13B" using 12A side plates with GSL-SE rotating assembly (again, same as '74-78) and rotor housings, as well as the niggly bits like oil pan, tension bolts, and dowel pins. Because of that, it's easier to start with a GSL-SE engine than it is to start with a 12A.
But basically, a "4-port 13B" is just a 20mm longer 12A.
The '86-up engines really are quite different from the '74-85 engines. Yes, a Turbo engine is a 4-port but it's not really the same as a "4-port 13B".
#20
Originally posted by 1st7heaven
I meant to say that all you have to do on the front engine bracket is bend it.....thats all I ever do on my conversions. It takes a big sledge hammer and a big vise!!
I meant to say that all you have to do on the front engine bracket is bend it.....thats all I ever do on my conversions. It takes a big sledge hammer and a big vise!!
![Big Grin](https://www.rx7club.com/images/smilies/biggrin.gif)
#23
Gone Race'n
![](/images/misc/20_year_icon.png)
iTrader: (4)
Join Date: Dec 2001
Location: Rockford, IL
Posts: 1,544
Likes: 0
Received 0 Likes
on
0 Posts
Now confirm this rumor
series 4,5 and 6 rotors can be placed inside of early 13b housings, BUT early 13b rotors CAN NOT be placed inside of the later 13b rotor housings. I have heard there are clearance issuses with later of this statement. What are those clearance issuses?
series 4,5 and 6 rotors can be placed inside of early 13b housings, BUT early 13b rotors CAN NOT be placed inside of the later 13b rotor housings. I have heard there are clearance issuses with later of this statement. What are those clearance issuses?
#24
Old [Sch|F]ool
![](/images/misc/20_year_icon.png)
The shape of the rotor housing was altered.
I can't verify that, unfortunately. But FORTUNATELY, very soon I will have my hands on a S4 6-port, and amongst the dissecting it and playing in its vital organs, one of the things I plan to do is do some mix-n-match with an early rotor housing and an early rotor (12A pieces but they're the same shape as early 13B) and see just WHAT the differences are.
Note that I *have* heard of people putting GSL-SE rotors in T2 engines, for the 3mm seals with no machining hassles. (WHY would you want to downgrade to 3mm seal? But anyway...) As well as the common swap of S5 rotors in early 13B.
So, we shall SEE! And there will be pictures. And it will be good.
I can't verify that, unfortunately. But FORTUNATELY, very soon I will have my hands on a S4 6-port, and amongst the dissecting it and playing in its vital organs, one of the things I plan to do is do some mix-n-match with an early rotor housing and an early rotor (12A pieces but they're the same shape as early 13B) and see just WHAT the differences are.
Note that I *have* heard of people putting GSL-SE rotors in T2 engines, for the 3mm seals with no machining hassles. (WHY would you want to downgrade to 3mm seal? But anyway...) As well as the common swap of S5 rotors in early 13B.
So, we shall SEE! And there will be pictures. And it will be good.
