photoshop request. Coupe out an fc hatch.
#127
T2 Duo!
iTrader: (6)
A removable hard top for a vert makes more sense. I see these on miatas and s2ks.
Last edited by tuscanidream; 10-09-12 at 02:12 PM.
#129
This is pretty funny that there is someone who is doing exactly same I was doing! I got a roof from a coupe. I did cut and grind inner metals of the roof since the it was much heavier than I expected. Then it has been sitting in my garage for years... Anyways, good luck and show us when you are done!
#130
That One Ghetto Guy.
Join Date: Dec 2010
Location: Orem, UT
Posts: 251
Likes: 0
Received 0 Likes
on
0 Posts
Damn, the picture of the roof cut is a game-changer for me. This is what I'm thinking:
Looks like someone could use a hatch roof cut, graft on the back window/frame from an S13 coupe, and for the windshield attachment portion, just graft on the targa top piece from the vert top and be done. A little custom weather stripping for the frameless vert doors, and presto, insta-hardtop. If there's enough real-estate on the trunklid for Miata-style hard-top latches, that could also be an option.
One could even go so far as to build one like I described above using metal parts, then fab up a mold to make fiberglass tops, and use Lexan or Plexiglas for the rear window.
Looks like someone could use a hatch roof cut, graft on the back window/frame from an S13 coupe, and for the windshield attachment portion, just graft on the targa top piece from the vert top and be done. A little custom weather stripping for the frameless vert doors, and presto, insta-hardtop. If there's enough real-estate on the trunklid for Miata-style hard-top latches, that could also be an option.
One could even go so far as to build one like I described above using metal parts, then fab up a mold to make fiberglass tops, and use Lexan or Plexiglas for the rear window.
#134
strange angle

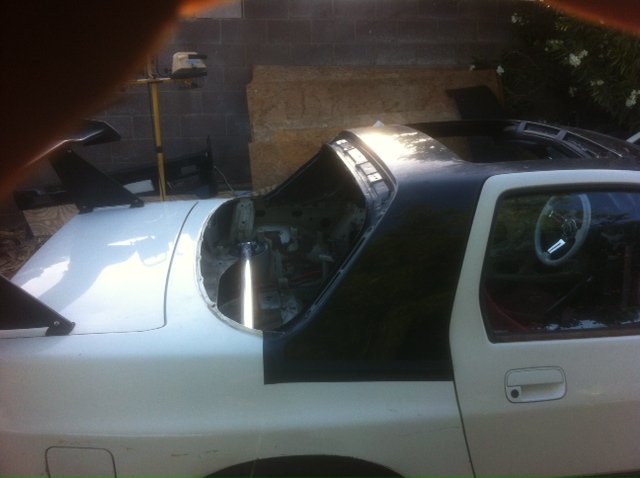

new white manual doors are on, handles ect. swapped over. the roof has been trimmed and fits nicely doors both line up with roof like stock. getting it ready to weld also aquired lexan for rear window and possibly sunroof. i know theres haters but i will have a different 7. im over the vert and everybody has fastbacks. so to each his owm.
#135
Up and Running again.
iTrader: (1)
I got on the forum today to see, out of sheer curiosity, if it were possible to put coupe doors on a vert with slight modification because I hate the small triangular piece on vert doors that you can't roll down and isn't on coupes. Just my weirdness. But then I saw this thread. And 1) Subscribed 2) Drooled over the potentiality of this all working out, and 3) Got super excited cause it's still a live thread. Looks pretty interesting to me, guys. Keep up the good work.
#137
FC guy
iTrader: (8)
I got on the forum today to see, out of sheer curiosity, if it were possible to put coupe doors on a vert with slight modification because I hate the small triangular piece on vert doors that you can't roll down and isn't on coupes. Just my weirdness. But then I saw this thread. And 1) Subscribed 2) Drooled over the potentiality of this all working out, and 3) Got super excited cause it's still a live thread. Looks pretty interesting to me, guys. Keep up the good work.
#138
Cake or Death?
iTrader: (2)
I think it's a mistake to begin with a vert chassis for a project like this.
A coupe gives you the door openings and roof, grafting in a rear window and deck would be simple compared to trying to fit/seal doors.
#139
[R.R.]
iTrader: (17)
The general profile looks very good but the Miata top would not work without extensive chopping/channeling.
I think it's a mistake to begin with a vert chassis for a project like this.
A coupe gives you the door openings and roof, grafting in a rear window and deck would be simple compared to trying to fit/seal doors.
I think it's a mistake to begin with a vert chassis for a project like this.
A coupe gives you the door openings and roof, grafting in a rear window and deck would be simple compared to trying to fit/seal doors.
If i was to take on a project I still think I'd start with a vert. Swap in coupe doors to not have to bother with window seals and make a custom roof from there. Much easier said then done but that is more then likely the "simplest" route, in my eyes at least.
Any way you do it its gunna require some serious fab work!
#140
Cake or Death?
iTrader: (2)
I disagree.
Starting with a coupe leaves only the rear glass and decklid to fabricate.
Aesthetically challenging no doubt, but far simpler than attaching a roof to the vert's windshield header and fabricating/grafting in upper door surrounds (and the rear glass).
The only advantage to starting with a vert (IMO, naturally) is the working decklid/trunk and that doesn't tip it for me.
Starting with a coupe leaves only the rear glass and decklid to fabricate.
Aesthetically challenging no doubt, but far simpler than attaching a roof to the vert's windshield header and fabricating/grafting in upper door surrounds (and the rear glass).
The only advantage to starting with a vert (IMO, naturally) is the working decklid/trunk and that doesn't tip it for me.
#142
strange angle
its been pretty easy so far. the only issue ive had is with the inside of the door frame that the door shuts against is different than the vert it has a different bodyline the vert frame dips in a lil more than the hatch but thats nothing a lil cut and shrink wont fix.
#145
Senior Member
Join Date: Apr 2013
Location: Nashville TN
Posts: 275
Likes: 0
Received 0 Likes
on
0 Posts
#148
strange angle

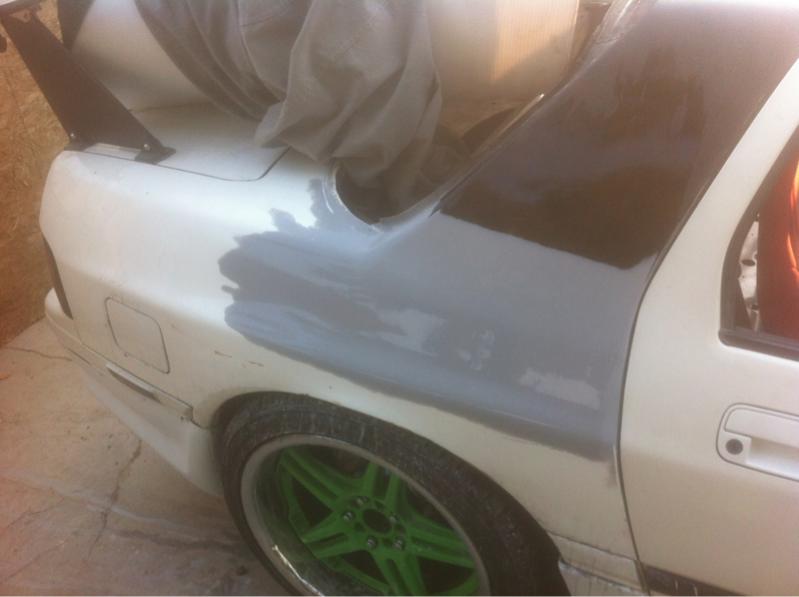

My buddy mike and I got the roof welded on over at Getnuts lab Las Vegas it was super easy just jumped around a lot. It didn't come out perfect but it's really good after doing the body work. After welding I ground down the welds then I used a product called metal 2 metal to further strengthen the seams then feathered it out with body filler then high build primer sanding in between products and wet sanding to finish. Next is the back window I will post better pics soon.
#149
strange angle
I also forgot to mention the inside of the car was reinforced with 1/16 steel plates behind the seats attaching the inner roof skeleton to the wheel wells and surrounding metal. I thought it would be way heavier than the vert but if you've ever felt how heavy a vert door is compared to a 86 base model the vert doors are insanely heavy also the vert top is heavier because of the built in rollbar. This car will be lighter than a vert especially with all lexan windows lol.
